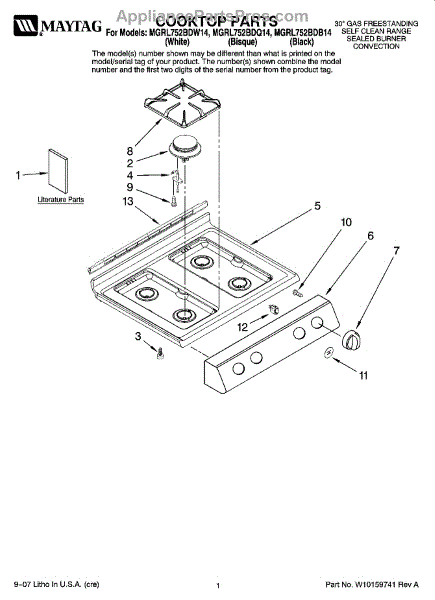

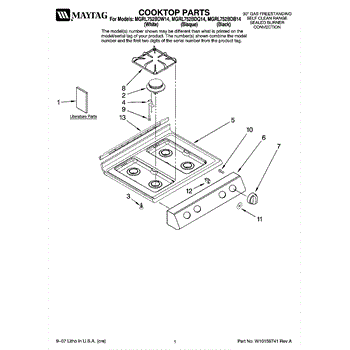

Parts for Maytag MGRL752BDB14: 01 - Cooktop Parts

This burner seal assembly replaces the gasket-like ring that sits around a cooktop surface burner, helping keep spills and debris out of the burner area for easier cleaning and consistent ignition. What it does:

• Seals the gap between the cooktop and surface burner to reduce debris and liquid intrusion
• Helps prevent food and grease from falling into the burner cavity
• Supports stable burner placement for reliable ignition and flame performance
• Can reduce the need for frequent deep cleaning under burners

• One burner seal assembly

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop and burners to cool completely before attempting removal/installation
• Remove burner heads and lift out the old seal, then seat the new seal evenly around the burner opening

Replacement burner seal assembly that creates a sealed barrier between a sealed gas cooktop burner and the cooktop surface, helping keep spills and debris out of the burner area and restoring stable burner seating. What it does:

• Forms a gasketed seal around the burner to limit spills, crumbs, and moisture from entering the burner box.
• Helps maintain proper burner seating for consistent flame shape and heat distribution.
• Replace if the seal is torn, flattened, warped, or shows heavy discoloration from spills or heat.
• Can reduce burner ignition or flame irregularities caused by debris or a damaged seal.

• Disconnect power and shut off gas supply before servicing; allow the cooktop to fully cool.
• Remove burner cap and head per your model's service instructions before replacing the seal.
• Clean the surrounding area of grease and debris, then press the new seal into place so it seats evenly.

Replacement burner seal assembly that creates a sealed barrier between a sealed gas cooktop burner and the cooktop surface, helping keep spills and debris out of the burner area and restoring stable burner seating. What it does:

• Forms a gasketed seal around the burner to limit spills, crumbs, and moisture from entering the burner box.
• Helps maintain proper burner seating for consistent flame shape and heat distribution.
• Replace if the seal is torn, flattened, warped, or shows heavy discoloration from spills or heat.
• Can reduce burner ignition or flame irregularities caused by debris or a damaged seal.

• Disconnect power and shut off gas supply before servicing; allow the cooktop to fully cool.
• Remove burner cap and head per your model's service instructions before replacing the seal.
• Clean the surrounding area of grease and debris, then press the new seal into place so it seats evenly.

This is a replacement sealed burner cap. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken, misplaced, or defective burner cap in various models of gas ranges and stoves. Electrodes are included.This sealed burner cap protects the surface burner and allows the cooktop to light properly. If the gas igniter is glowing but does not ignite, the stove won't start up, or there will be a gas smell. Proper tools may be required to replace this part. Always ensure the appropriate safety precautions are adhered to when attempting to fix any appliances. Make sure that the stove is entirely disconnected from gas and power before starting the repair work. For more accurate information on how and where to install this sealed burner cap, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this burner cap is suitable for use on several different models of gas stoves, ranges, and cooktops manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable materials and is sold individually.

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This sealed burner igniter is the spark electrode for a gas cooktop burner. It creates the ignition spark at the burner head so your surface burner lights reliably when you turn the control knob.

• Produces the high-voltage spark that ignites gas at a sealed surface burner
• Helps resolve a single burner that won't light or lights intermittently
• Common signs: no visible spark at that burner, continuous clicking without ignition, or a cracked/chipped ceramic insulator
• A shorted or misaligned electrode can cause the spark to jump to ground instead of the burner

• Disconnect power and shut off gas supply before servicing
• Remove the burner cap and head; lift the cooktop if needed to access the electrode
• Handle the ceramic insulator carefully; disconnect/reconnect the wire lead and reuse mounting hardware
• Align the tip toward the burner port and secure; verify a strong, consistent spark before reassembly

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

White

This square control knob replaces a worn, cracked, or missing selector knob for compatible Whirlpool appliances, restoring a secure grip and clear setting selection. Easy to install and restores normal control operation. What it does

• Replaces a damaged or loose control/select knob so settings can be changed easily
• Fits splined control shafts used on select Whirlpool ranges/ovens and similar appliances
• Helps eliminate slipping or inaccurate knob position while selecting heat or function
• Restores the look and feel of the control panel when the original knob is broken or missing

• Always disconnect power to the appliance before starting any repair
• Pull the old knob straight off the control shaft; align splines and push the new knob on until fully seated
• Do not force if knob does not seat smoothly—verify correct orientation and spline match

This white control knob restores a clean look and reliable feel to your range's user controls. Replace a cracked, stripped, or missing knob so you can confidently select heat and function settings at the control shaft. What it does:

• Attaches to the control shaft to select heat or function settings
• Provides a pointer that aligns with panel markings for accurate selection
• Restores smooth turning when the old knob is cracked, stripped, loose, melted, or missing
• Helps ensure on/off and level adjustments engage properly

• 1 white control knob

• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the flat/D orientation of the new knob with the shaft and press straight on until fully seated
• Disconnect power and, if applicable, shut off gas before servicing any controls behind the knob
• Match part numbers to the correct location

Color: Black.

Color: Gray.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This rocker switch is a direct-replacement control button that restores reliable on/off input for the appliance. It replaces a worn or broken front-panel switch so controls respond correctly during normal use. What it does:

• Replaces a failed rocker/control switch used to send on/off or selection signals to the appliance's control circuitry
• Restores consistent electrical contact when the original switch is cracked, stuck, or intermittently working
• Commonly used when push/panel buttons no longer activate functions or display response is erratic
• Simple, single-function mechanical switch — no programming or calibration required

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• Access may require removal of the control panel; keep screws and fasteners organized for reassembly
• Verify switch orientation and wiring before final reassembly; match connectors to original terminals
