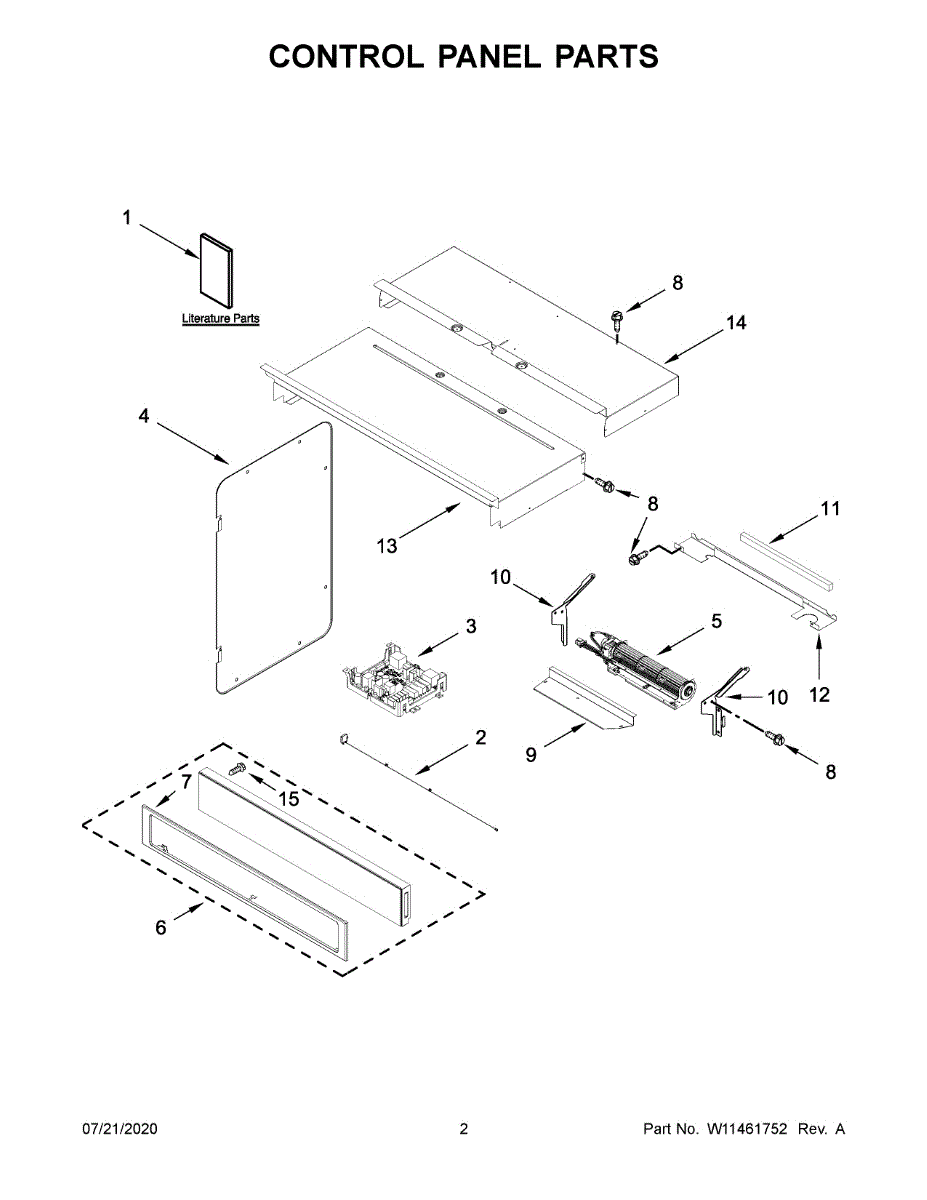

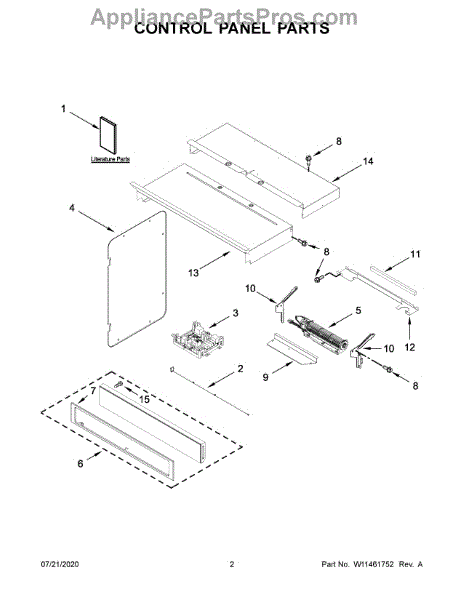

Parts for Whirlpool WOC75EC7HV04: 02 - Control Panel Parts

Fix lost Wi-Fi connectivity or unresponsive smart features with this wall oven antenna assembly. Restores wireless signal reception and protects control electronics.

Oven won't heat, controls unresponsive, or display resetting? This electronic control board manages all functions and cycle timing in your wall oven.

This is a motorized blower assembly that circulates air to cool the oven's electronic controls and surrounding cabinetry during and after cooking. It helps prevent overheating of sensitive components by drawing heat away from the oven cavity. Replace this assembly if the cooling fan is noisy, not spinning, or if the oven control board is overheating or shutting off unexpectedly.

The Console is an OEM part for Whirlpool wall oven and microwave units. It is designed as a replacement for the control board and overlay, serving as the central hub for controlling and operating the oven or microwave functions.

A bad console can occur due to electrical issues, component failure, or physical damage. If you notice problems such as unresponsive controls, error messages, or erratic behavior of the oven or microwave, it may indicate a problem with the console.

Symptoms of a bad console include:

• Unresponsive controls or display panel
• Error messages or error codes
• Malfunctioning of oven or microwave functions

Replace your faulty console with this genuine OEM Whirlpool part to restore your wall oven or microwave.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This control panel is the user interface assembly that houses the oven/range touchpads, buttons and display, letting you select cooking modes and view status. It restores responsive controls and readable display feedback. What it does:

• Provides the main user interface for setting bake, broil, timer and other functions
• Transmits button/touch commands to the range's control electronics
• Restores display of time, temperature and error/-status indicators when faulty
• Helps address symptoms like unresponsive buttons, missing display information, or intermittent control operation

• Disconnect power at the breaker before attempting service to avoid shock
• Some installations require removing the oven door and back panel to access mounting screws and electrical connectors
• Handle the display and ribbon/connector carefully to avoid damage

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Mounting screw for dryers, electric wall ovens, washers, and laundry centers. Secures panels, brackets, or components. Replace if missing or stripped.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

Mounting hardware kit for wall ovens and oven-microwave combos. Includes screws, brackets, and fasteners for secure installation. Replace missing or damaged hardware during reinstallation.
