Parts for Thermador CH36: 02 - Control & Switch Details Parts

Parts for Thermador CH36: 02 - Control & Switch Details Parts

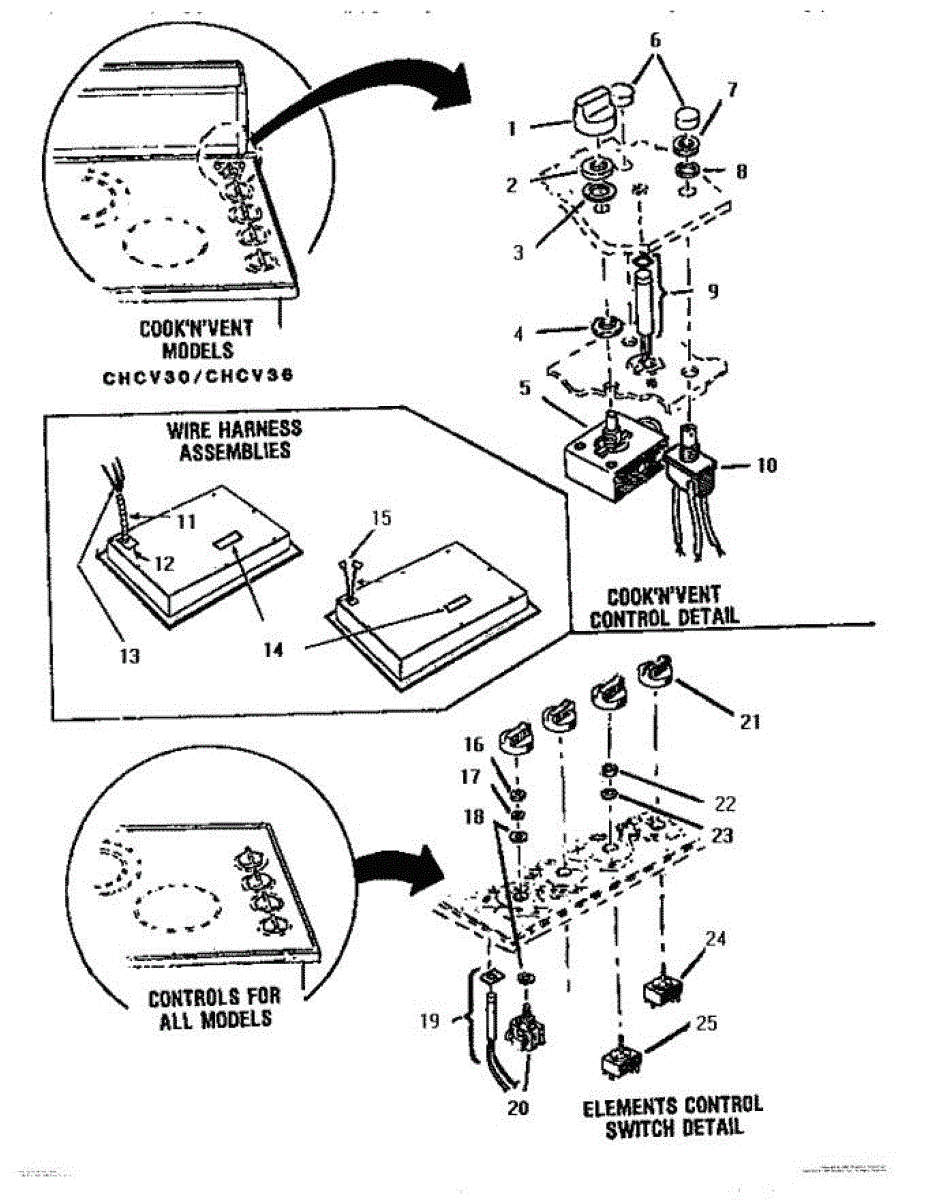

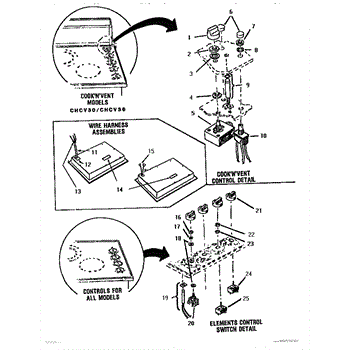

Location on Diagram
Part Description
Price & Availability
13
By: Bosch
Part Number: 00484525

This wire assembly connects electrical components in CH30/CH36 series appliances to restore power and signal routing for normal operation. Replaces a damaged or worn factory harness to help resolve intermittent or failed electrical connections. What it does:

  • Provides factory-style wiring to carry power and signals between control modules and components
  • Replaces frayed, melted, or broken wiring that can cause intermittent function or complete failure
  • Common symptom fixes: burners or oven elements not responding, appliance not powering on, or sporadic operation
  • Maintains original connector fit and routing for reliable reinstallation
What's included:
  • One wire assembly
Install notes:
  • Disconnect all power to the appliance before starting work to avoid shock hazard
  • Handle connectors gently; align and fully seat each plug until it clicks
  • Route the harness following existing clips and channels to prevent pinching or heat exposure

More
$234.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
By: Bosch
Part Number: 00484526
$382.36

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
By: Bosch
Part Number: 00411461
$4.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
Product photo
By: Bosch
Part Number: 00411514
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
Product photo
By: Bosch
Part Number: 00413477
$8.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
Product photo
By: Bosch
Part Number: 00412754

This small indicator lamp mounts on the range control panel and illuminates to show when a burner or oven element is active. It provides a visual signal so you know the appliance is in use. Replace this lamp if the indicator no longer lights up even though the burner or oven is functioning properly.

More
$13.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
20
Product photo
By: Bosch
Part Number: 00189810
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21A
Product photo
By: Bosch
Part Number: 00415381
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
Product photo
By: Bosch
Part Number: 00415382
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22
Product photo
By: Bosch
Part Number: 00411141

3/8-32 mounting nut secures speed control assembly on cooktops and range hoods. Replace if stripped, missing, or loose to ensure proper installation.

More
$4.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
By: Bosch
Part Number: 14-92-087
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24
By: Bosch
Part Number: 00414564
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25
By: Bosch
Part Number: 00414601
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
