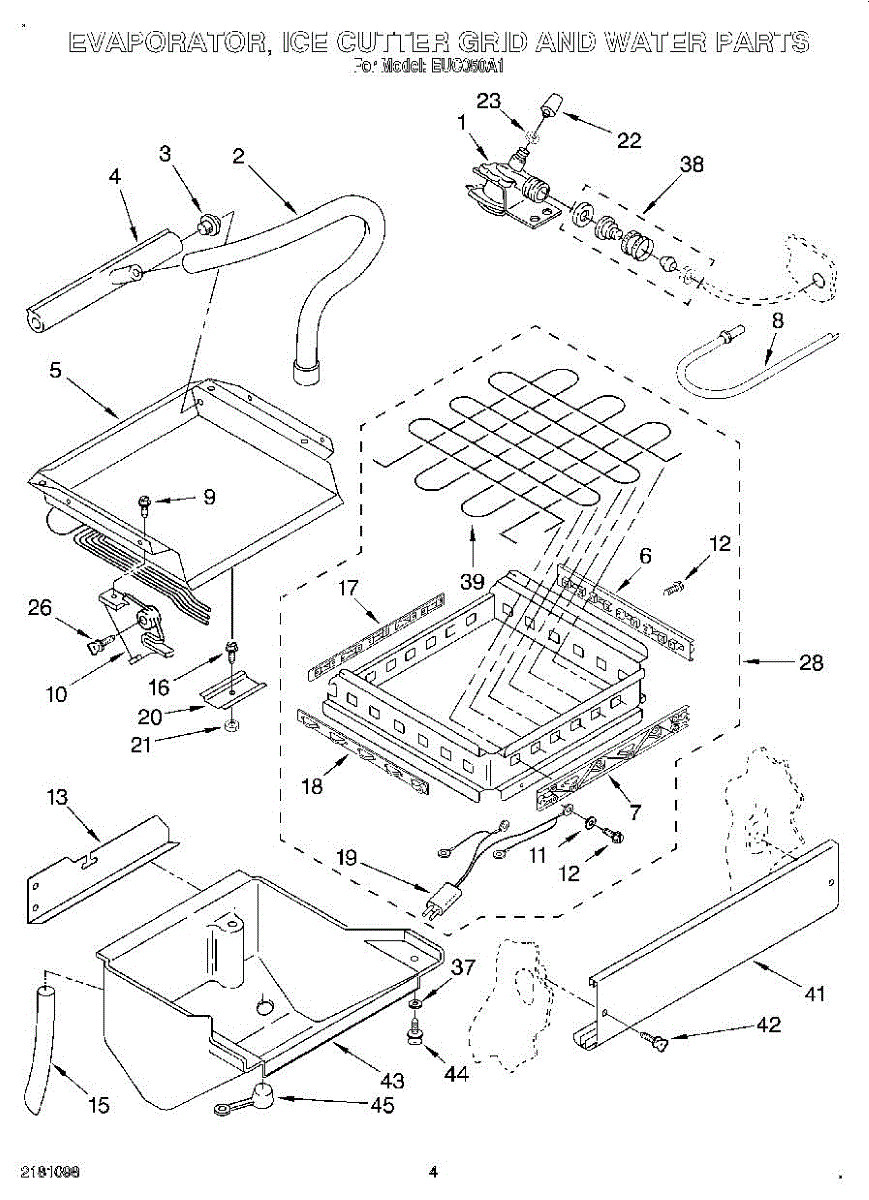

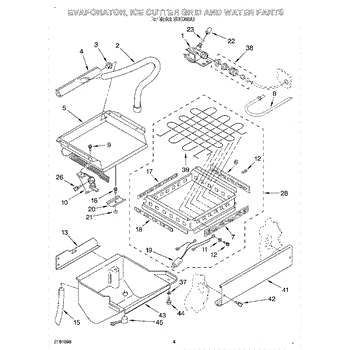

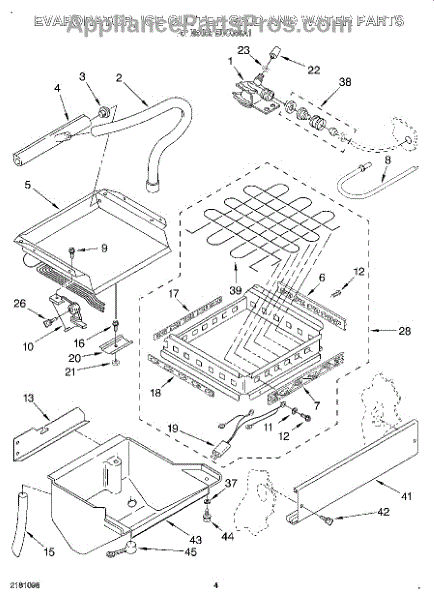

Parts for Whirlpool EUC050A1: 02 - Evaporator, Ice Cutter Grid And Water Parts

Specs: 10-16 x 1/2 inch.

A threaded screw used to secure appliance components where an 8-16 thread is specified. Provides a straightforward replacement fastener to restore original fit and keep panels, brackets, and internal parts held securely. What it does:

• Fastens panels, brackets, trim, and small assemblies that use an 8-16 threaded fastener.
• Replaces missing, corroded, stripped, or damaged screws to stop rattling, gaps, or loose parts.
• Restores reliable mechanical connection after service or part replacement.
• Compatible where the OEM specifies an 8-16 screw for mounting or securing components.

• Use the correct driver to avoid stripping the head; start threads by hand to prevent cross-threading.
• Tighten until secure but avoid over-tightening to prevent damage to mounting holes or plastic parts.
• If working near electrical components, disconnect power and follow all safety precautions.
• Inspect mating threads and replace if damaged before installing this screw.

These inserts are for 1/4 inch plastic tubing. Package of 4.

Size: 1/4 inch. Nut for plastic water line.

The Cutting Grid Kit is an OEM replacement part for Whirlpool ice machines. It cuts sheets of frozen ice into individual cubes, ensuring ice is available in uniform sizes. Each kit contains 8 screws and approximately 10 feet of wire. Two kits are required to replace both directions of the cutting grid to ensure comprehensive restoration of the ice maker’s functionality.

Causes of a bad Cutting Grid Kit can be attributed to mineral deposits buildup, which can obstruct the cutting process, electrical malfunctions affecting the heating element, or physical damage to the grid wires.

Symptoms of a malfunctioning Cutting Grid Kit are:

• Ice sheets not being cut into cubes
• Accumulation of uncut ice in the bin
• The heating element fails to warm up
• Inconsistent ice cube sizes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-32 x 5/8 inch.

Size: 10-32 x 5/8 inch.
