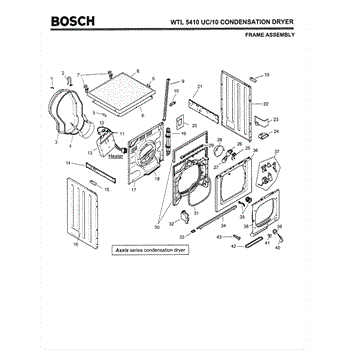

Parts for Bosch WTL5410 UC/10 (FD 8201-): 02 - Frame Assembly Parts

This door gasket is the flexible rubber seal that fits the dishwasher door to keep water inside the tub during cycles. Replacing a worn gasket restores a watertight seal and helps stop leaks and moisture buildup. What it does:

• Seals the gap between the door and tub to prevent water leaks during wash cycles
• Keeps spray and suds inside the dishwasher, protecting surrounding flooring and cabinetry
• Helps reduce odors and mold growth by maintaining a tight seal that limits moisture escape
• Common symptom: water pooling or dripping from the bottom/side of the door
• Common symptom: visible cracks, tears, flattening, or hardened areas in the gasket

• One door gasket

• Inspect the door channel and mating surfaces; clean away residue before installing the new gasket
• Press the gasket evenly into the door channel, working from one end to the other to avoid twisting
• Turn off power and water to the appliance before working on the door; refer to the service manual for model-specific instructions

This thermostat with attached sensing cable detects and regulates appliance temperature to help maintain proper heating cycles and protect against overheating. It replaces a failed temperature control component so your appliance can heat correctly and safely. What it does:

• Senses internal temperature and sends a signal to the control to start or stop heating
• Helps prevent overheating by providing accurate temperature feedback
• Works as the temperature-sensing element used by the appliance control board

• Disconnect power before servicing to avoid electric shock
• Handle the sensing cable and probe gently; do not kink or pinch the capillary/sensor
• Verify proper routing and secure mounting of the sensor per the appliance's service instructions

This part has been discontinued and is no longer available.

This high-temperature 220V, 15-watt oven light bulb restores bright interior lighting so you can monitor cooking progress without opening the door. It's built for sustained heat and replaces a burned-out or flickering lamp.

• Illuminates the oven cavity during baking, broiling, and cleaning cycles
• High-temperature design for continuous heat exposure
• Common failure symptoms: no light when switched on, dim or intermittent illumination, blackened glass, or a broken filament

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/cover; unthread and remove the old bulb
• Thread in the new bulb of the same voltage and wattage; do not overtighten
• Reinstall the cover, restore power, and test the light

This clear replacement lens protects and covers an internal appliance light while restoring proper light dispersion and appearance. It replaces a cracked, cloudy, or missing lens to improve interior visibility and finish. What it does:

• Covers and protects the internal light bulb or LED assembly from debris and moisture.
• Restores even light dispersion for brighter, clearer interior illumination.
• Replaces cracked, chipped, or discolored lenses that cause glare or reduced visibility.
• Helps maintain original appearance and prevents direct contact with the light source.

• Disconnect power to the appliance before any service to avoid electrical shock.
• Handle the lens carefully to avoid scratching; align retaining tabs or slots before snapping into place.
• Use only the factory fasteners or clips; do not overtighten or force the lens into position.

This door latch mechanism secures the appliance door and completes the door-switch circuit so the unit can operate. It replaces a worn or damaged latch to restore proper door closure and reliable operation. What it does:

• Engages and holds the door closed during cycles so the appliance can run.
• Activates the door switch/contact that signals the control board the door is closed.
• Commonly used when the door won't stay closed, the appliance won't start, or the latch feels loose or broken.
• Fits into the door frame and mates with the striker/handle to keep the seal tight.

• One door latch mechanism

• Disconnect power (unplug or switch off breaker) before servicing to avoid electrical shock.
• Access usually requires opening the door panel or removing the inner door; keep track of screws and clips.
• Handle carefully to avoid damaging the latch tabs or wiring; test door operation before reassembling fully.
• If wiring or mounting points are damaged, replace those parts as needed rather than forcing the latch.

This mechanical door latch secures the dishwasher door during operation so cycles can run safely and the unit can seal properly. It replaces a worn or broken latch to restore reliable door closure and cycle starts. What it does:

• Physically holds and locks the door closed during wash cycles
• Triggers or maintains the door-closed state so the control will allow the cycle to start
• Commonly replaces units that are cracked, bent, or no longer latching
• Resolves symptoms like a door that won't stay closed, a dishwasher that won't start, or intermittent cycle interruptions

• Disconnect power to the appliance before beginning any repair
• Remove the inner door panel to access the latch; keep fasteners organized
• Inspect surrounding strike and mounting tabs for damage before installing

This face frame door restores the finished front trim of the appliance door for a clean, uniform appearance. It replaces damaged or warped door framing to improve fit and keep the door looking factory-new. What it does:

• Covers and secures the outer edge of the appliance door for a finished appearance
• Replaces cracked, dented, or separated door trim that affects door alignment
• Helps maintain a tight seal and correct door closure by restoring proper door fit
• Matches OEM fit and mounting points for straightforward replacement

• One face frame for the door

• Disconnect power to the appliance before starting any repair
• Removal typically requires opening the door and removing inner panels or screws—keep all hardware for reinstallation
• Handle trim parts carefully to avoid scratching the finish; use non-marring tools where possible

Thermister
