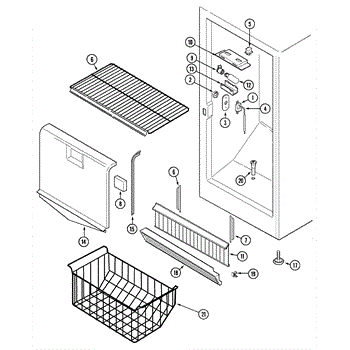

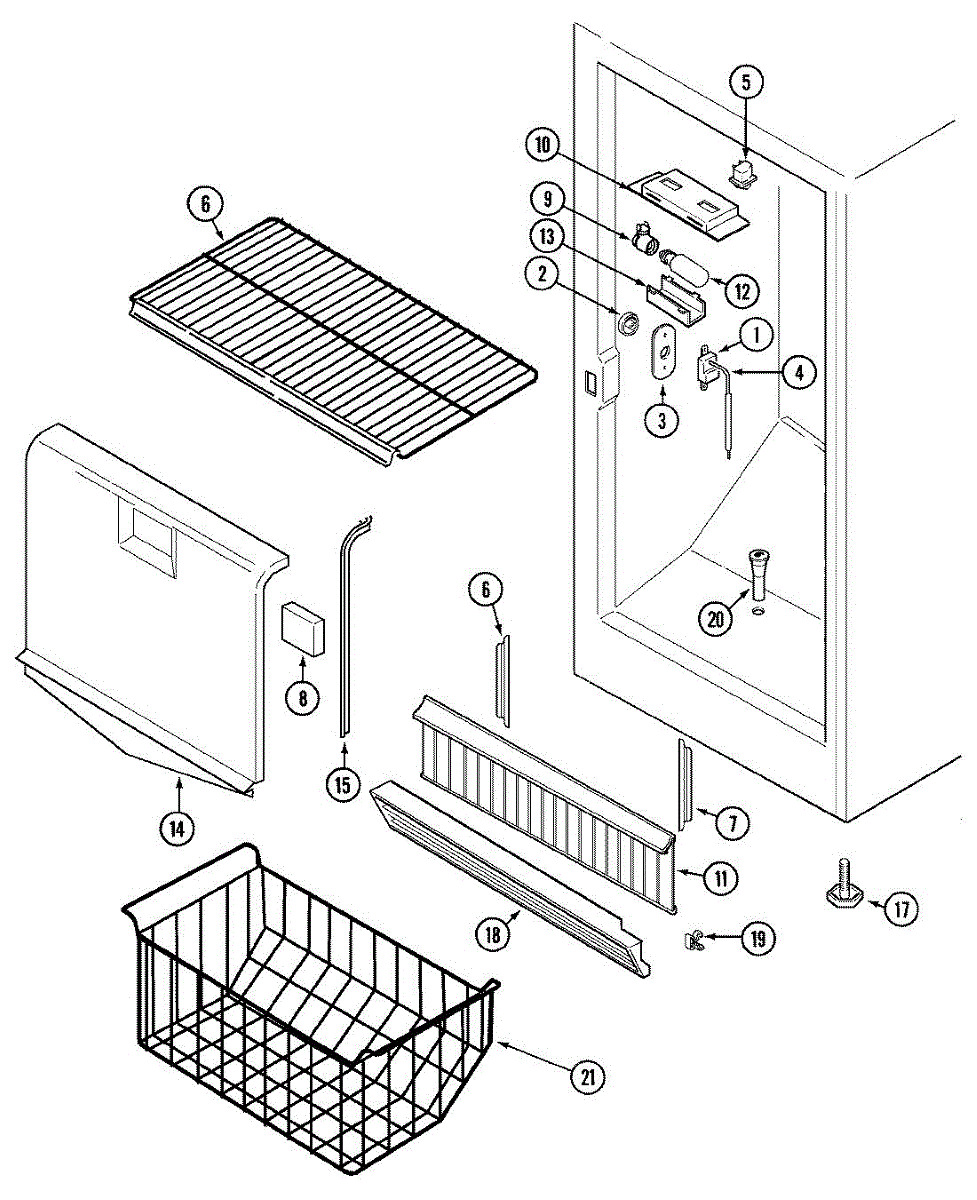

Parts for Maytag CFU2046ARW: 02 - Freezer Compartment Parts

Freezer not cooling or running constantly? This temperature control thermostat cycles the cooling circuit to maintain your set point. DIY-friendly repair.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Interior support plate for freezers and refrigerators. Mounts inside the cabinet to hold shelving or components. Replace if cracked, broken, or missing.

Refrigerator not cooling consistently or compressor short cycling? This thermostat capillary tube shield protects temperature sensing. DIY repair.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

This gate support is the structural bracket that stabilizes the gate or flap inside your appliance, keeping it aligned and moving freely. Replacing a worn support restores smooth operation and helps eliminate noise from loose or misaligned parts.

• Provides stable support for the gate/flap within the assembly
• Maintains correct alignment and clearance for smooth opening/closing
• Reduces excess movement that can cause rattling or rubbing
• Replace if the gate feels loose, binds, won't stay closed, or the support is cracked/broken

What's included: 1 gate support Install notes:

• Disconnect power; also turn off gas or water supply
• Allow the unit to cool and wear cut-resistant gloves
• Access the gate assembly and note fastener locations/orientation before removal
• Transfer existing hardware, secure the new support, and verify smooth gate movement before reassembly

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

Pan head screw secures panels, brackets, and trim on refrigerators and freezers. Replace missing, stripped, or damaged screws to restore proper fastening.

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level

This is the toe grille that mounts along the bottom front of the refrigerator or freezer, covering the condenser area and providing a finished appearance. It allows airflow to the condenser coils while keeping dust and debris from accumulating underneath the unit. Replace this grille if it is cracked, warped, or missing, which can affect airflow and cooling efficiency.

Secures panels, covers, or harnesses in place during operation. Replace if bent, broken, or missing to restore a tight fit and eliminate rattling.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Seals and directs airflow between freezer and fresh-food compartments. Replace this baffle if cracked, broken, or missing to restore proper air circulation.
