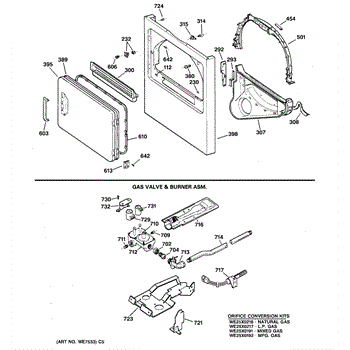

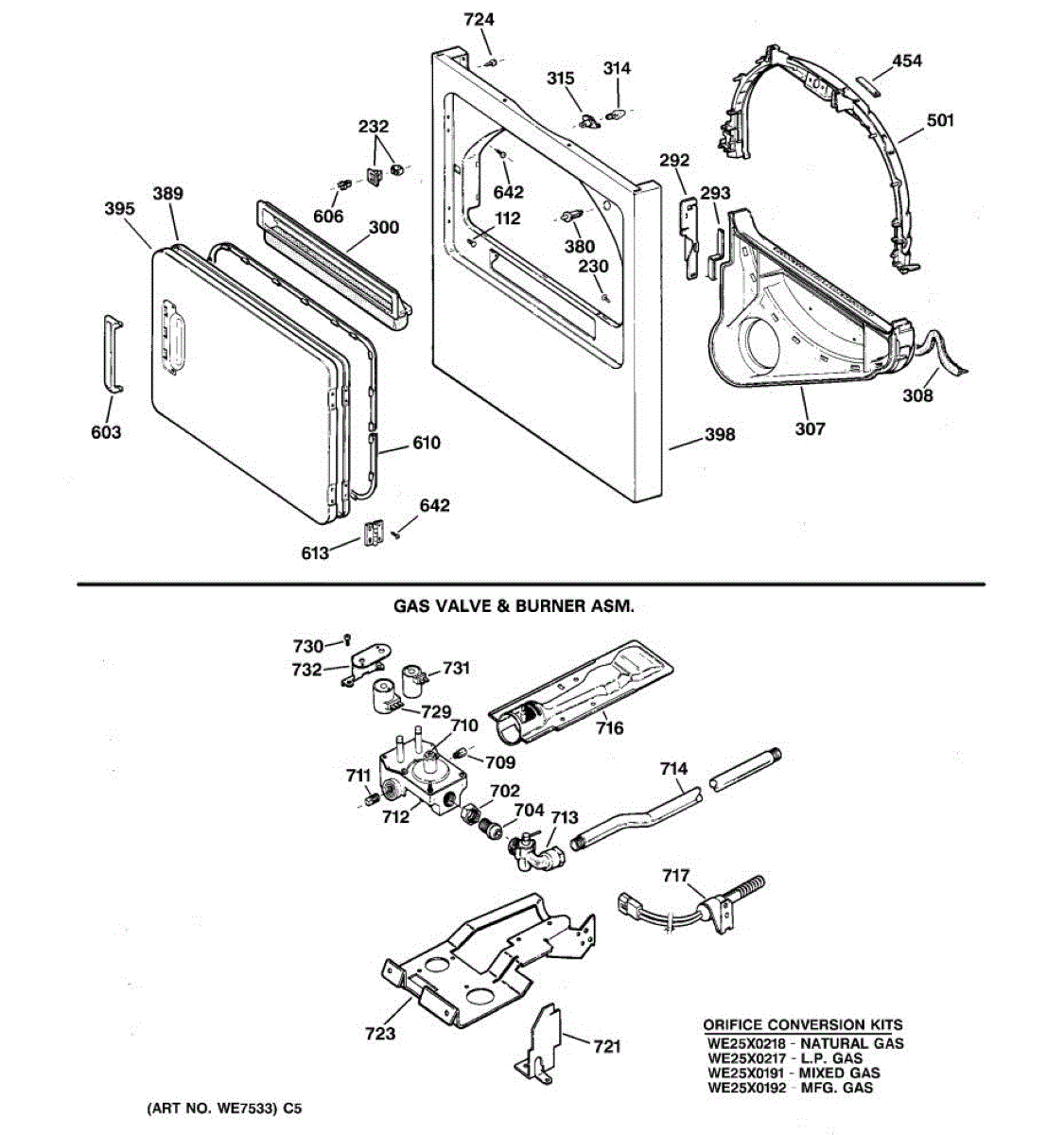

Parts for Ge DLL3680SBLAD: 02 - Front Panel, Door, Gas Valve & Burner Assembly Parts

The Door Latch is an OEM part for GE dryers. This part ensures the dryer door stays securely closed during operation, activating the safety switch to allow the dryer to operate. The latch mechanism engages with the door strike to lock the door, preventing it from opening while the dryer is running, which is essential for both safety and proper functioning of the appliance.

Causes for replacement can include normal wear and tear, accidental damage, or a misalignment that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dryer door doesn't stay closed during cycles.
• Difficulty in starting the dryer due to the door not activating the safety switch.
• Visible wear or damage to the latch mechanism.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lint Filter is an OEM part for GE dryers. This filter captures lint and debris from the laundry load, preventing it from clogging the dryer vent and ensuring efficient airflow. Properly maintaining the lint filter helps improve drying performance, reduces energy consumption, and prevents potential fire hazards.

Causes of a bad lint filter can include tears or cracks from regular use, accumulation of lint and debris that cannot be cleaned out, or warping due to heat exposure. A compromised lint filter can lead to decreased drying efficiency and potential safety issues.

Symptoms of a bad lint filter include:

• Visible tears or holes in the filter mesh
• The filter not fitting securely in its slot
• Longer drying times
• Excess lint accumulation in the dryer drum or vent

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: 10-watt bulb

The Lamp is an OEM part for GE dryers. This part illuminates the dryer's drum interior, enhancing visibility for loading and unloading garments. It ensures that users can easily see their clothes and any items inside the drum, particularly useful in low-light conditions.

Replacing a non-functional dryer lamp is important for maintaining the functionality and convenience of your GE dryer, ensuring you can effectively manage your laundry.

Symptoms of a malfunctioning dryer lamp include:

• A lack of light inside the drum when the dryer door is opened or during operation
• Flickering or intermittent light indicating a loose connection or nearing the end of the lamp's lifespan
• Complete failure to illuminate, which could stem from a burnt-out bulb or electrical issues within the dryer

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Front Drum Support Bearing Glide is an OEM part for GE dryers. Each dryer utilizes three of these parts, and they should be replaced as a set for optimal performance. This drum glide is 2-5/8 inches long and 1/2 inch wide. They provide smooth rotation for the dryer drum by supporting its front as it turns.

Causes of a bad front drum support bearing glide can include normal wear and tear over time, excessive load weights, or debris accumulation that can cause friction and damage. When the glide wears out, it can lead to increased noise levels and potential damage to other dryer components.

Symptoms of a bad front drum support bearing glide may include:

• Squeaking or grinding noises during dryer operation
• Uneven drum rotation or wobbling
• The drum getting stuck or difficult to turn manually

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Dryer Drum Front Support Bearing is an OEM part compatible with GE dryers. It is responsible for supporting and stabilizing the dryer drum during operation. As the drum rotates, the front support bearing helps to maintain its proper alignment and reduces friction between the drum and the front panel. It measures 15 inches in height and has an interior width of 20 1/2 inches. It does not include the 3 drum glides, which are used and sold separately.

Causes of a bad dryer drum front support bearing can include normal wear and tear over time, excessive load on the drum, or lack of proper lubrication.

Symptoms of a bad dryer drum front support bearing may include:

• Squeaking, grinding, or scraping noises during the drying cycle
• Drum wobbling or sagging
• Difficulties in rotating the drum manually
• Uneven drying or clothes getting caught in the drum

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For drum glides order WE3X87.

The Handle Door is an OEM part for GE dryers. This door handle allows for easy opening and closing of the dryer door, providing a secure grip to access the drum.

Common causes for door handle failure include regular wear from frequent use, forceful handling, and material fatigue over time.

Symptoms of a failing Handle Door include:

• Cracks or breakage in the handle
• Handle becoming loose or detaching from the door
• Difficulty in opening or closing the dryer door
• Visible wear that could affect the grip or usability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Strike is an OEM part for GE dryers. This component is crucial for ensuring that the dryer door latches properly when closed. It interacts with the door catch mechanism to secure the door during operation, preventing it from opening unexpectedly, which ensures the dryer operates safely and efficiently.

Symptoms of a failing Door Strike include:

• The dryer door not staying closed during a cycle
• Difficulty in closing the dryer door or getting it to latch properly
• The dryer not starting because the door switch is not engaged
• Visible damage or wear on the door strike

Causes of a bad door strike can include wear and tear from regular use, physical damage from slamming the door or mishandling, and misalignment caused by repeated opening and closing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: If the door catch is also needed, use part number WE1M1011.

This replacement hinge supports and pivots the appliance door so it opens and closes smoothly and stays aligned. A worn or bent hinge can lead to door sagging, scraping, or poor latching that impacts performance and safety. What it does

• Supports the door and provides the pivot point for opening/closing
• Maintains door alignment to help ensure a proper seal
• Restores smooth, consistent door motion
• Common symptoms: door sags, squeaks, scrapes, or won't latch/stay closed

• 1 hinge

• Disconnect power before servicing; for gas units, also shut off gas supply
• Support the door while removing/installing fasteners to prevent stress on the panel
• Reuse original mounting screws/hardware unless damaged
• After installation, adjust if needed

This orifice meters gas flow to a single burner, restoring proper flame size and stable heating for gas ranges and ovens. Replacing a damaged or clogged orifice helps improve ignition and consistent burner performance. What it does:

• Controls the amount of gas delivered to the burner for correct flame height and heat output
• Helps resolve weak or low flames and uneven heating when the orifice is clogged or worn
• Supports reliable ignition by maintaining proper gas flow to the burner
• Works as the precise gas port that matches the cooktop/oven's burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate tools to remove burner components; take care not to damage threads or fittings
• After installation, check all connections for leaks with a soap solution or approved leak detector

This gas valve regulates and safely delivers fuel to your dryer's burner. When operating correctly, it opens for ignition and closes when heat is satisfied, providing consistent, reliable heating for effective drying.

• Opens to allow gas into the burner when the ignition system calls for heat
• Closes to stop gas flow during cycling or if ignition fails
• Possible symptoms: dryer runs but no heat; igniter glows yet no flame; intermittent heat or long dry times
• Helps restore proper burner ignition and stable flame

• Disconnect power and shut off the gas supply before servicing
• Work in a well-ventilated area; check all connections for leaks with a non-corrosive leak-detection solution after installation
• Transfer any brackets, fittings, or orifices from the original valve as required; secure connections
• Confirm gas type (natural/LP) and regulator/orifice settings per the service manual before restoring service

This burner assembly is the combustion head for GE gas dryers. It mixes gas and air and directs a stable flame into the heater housing, restoring consistent heat when the original burner is corroded, warped, or clogged.

• Directs the gas flame into the heat chamber for proper drying temperatures
• Works with the igniter, flame sensor, and gas valve to produce heat
• Typical failure symptoms: no heat or intermittent heat, long dry times, burner lights then goes out, unstable/yellow flame
• Physical issues can include rust, warping, or blocked burner ports

• Disconnect power and shut off the gas supply; allow the dryer to cool completely
• Note position of the igniter and flame sensor relative to the burner port; realign during reassembly
• Transfer any reusable fittings from the original burner as needed and verify orifice/fuel type match your installation
• After reconnecting gas, perform a leak check with a non-corrosive soapy water solution before restoring power

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dual Coil is an OEM part for GE dryers. This is often referred to as the “M” coil. If you need to replace both the main coil and dual coil, it is recommended to order the kit 279834, which includes both coils for a comprehensive replacement.

Causes of a faulty dual coil can include wear and tear over time, electrical component failure, or damage due to overheating or excessive usage. These factors can result in insufficient heat production, inconsistent drying, or no heat at all.

Symptoms of a bad dual coil may include:

• Insufficient heat or no heat during the drying cycle
• Inconsistent drying results
• Extended drying times

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Specs: 8-32 ca hxw 1/2

The Main Coil is an OEM part for GE dryers. It is a crucial component of the gas valve assembly, responsible for opening the gas valve to allow gas flow to the burner, enabling the dryer to produce heat.

Causes of a bad main coil can include electrical faults such as short circuits or open circuits within the coil, wear and tear from prolonged use, or damage due to overheating. Over time, the coil's ability to control the gas flow can diminish, affecting the dryer's performance.

Symptoms of a bad main coil include:

• The dryer not heating up
• Intermittent heating during a drying cycle
• The dryer taking longer than usual to dry clothes
• A clicking sound without the ignition of the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
