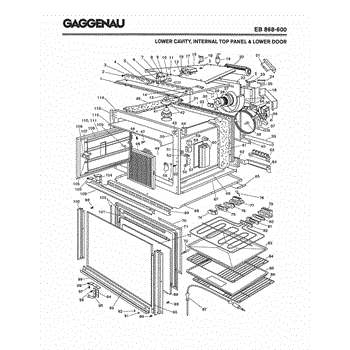

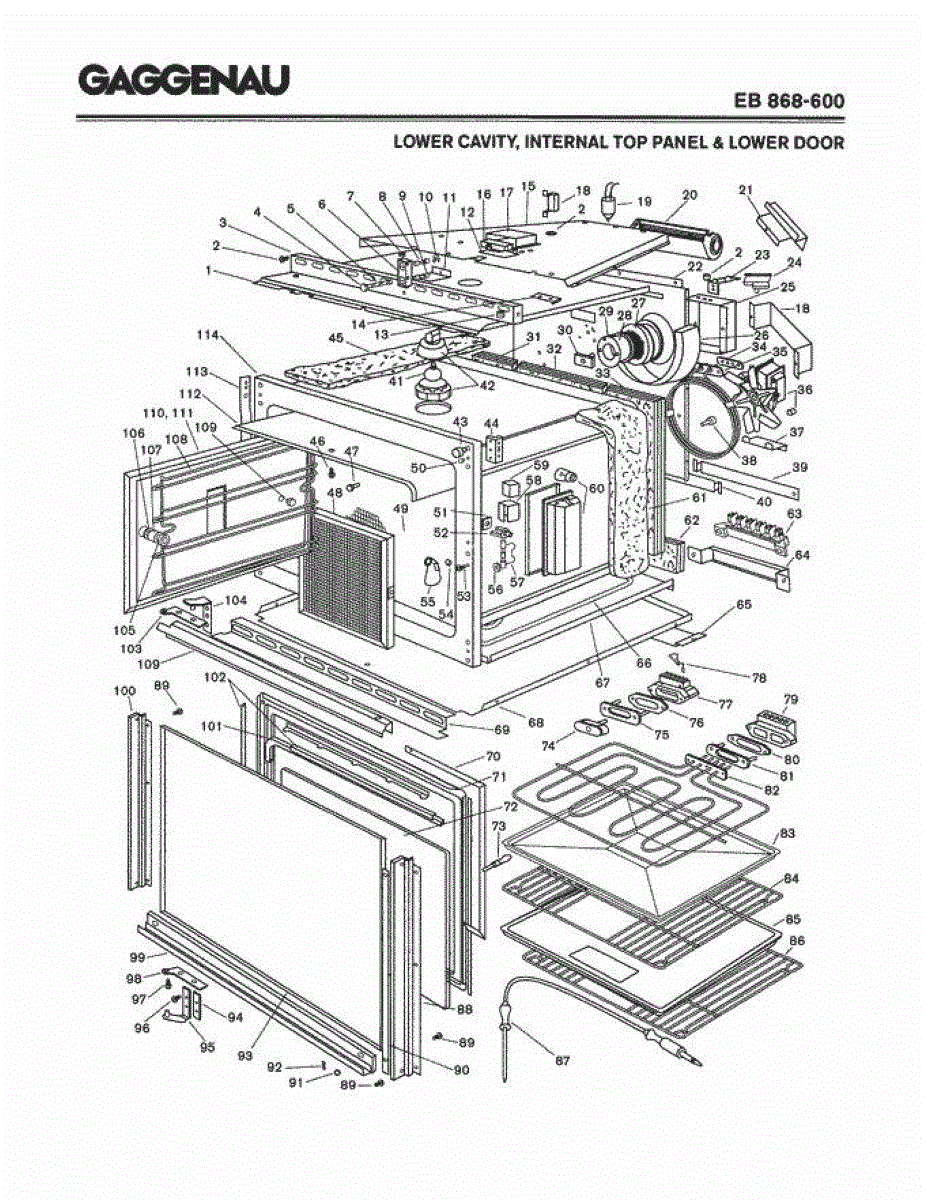

Parts for Gaggenau EB868-600: 02 - Lower Cavity, Internal Top Panel & Lower Door Parts

This bolt is a single mounting screw used to secure internal components and assemblies. It restores proper fit and stability for panels, brackets, or fastened parts after repair or service. What it does:

• Secures panels, brackets, or assemblies to prevent movement and vibration
• Maintains alignment of mechanical components during operation
• Replaces stripped or missing fasteners to restore safe mounting
• Helps prevent rattling and wear from loose connections

• Use the correct driver and socket size to avoid rounding the head
• Tighten to a snug fit; avoid overtightening which can strip threads or crack parts
• Inspect mating threads before installation; replace if damaged
• Disconnect power and follow appliance-specific safety steps before servicing

This replacement tension spring restores proper movement and tension for the related mechanism in compatible Bosch appliances, helping components open, close, or return smoothly and reliably. What it does

• Provides restoring force for a moving component, helping ensure controlled motion and positioning
• Can correct symptoms like loose or uneven movement, sagging panels, or components that don't return to position
• Works as the original-style spring used by the manufacturer for the specified mechanism
• Intended as a direct replacement for the worn or broken spring

• One replacement tension spring

• Inspect the mating parts and attachment points before installing; replace any damaged clips or anchors
• Use appropriate hand tools and keep hands/eyes protected — springs can release stored energy
• Follow the appliance's service manual instructions for safe removal and installation; disconnect power where applicable

This angle bracket is a replacement mounting bracket that secures internal components and panels for stable operation. Replacing a damaged bracket restores proper alignment and reduces rattling or loose parts. What it does

• Provides a secure mounting point for internal panels or assemblies
• Prevents panel movement that can cause vibration or noise
• Restores correct part alignment for reliable operation
• Helps maintain safe spacing between components

• One angle bracket

• Inspect surrounding fasteners and mounting surfaces; replace any stripped screws
• Use appropriate screwdriver or socket and moderate torque to avoid over-tightening
• Disconnect power to the appliance before accessing internal parts to avoid injury

This rubber grommet cushions and secures a shaft or panel opening to reduce vibration and prevent metal-on-metal wear. It replaces a worn or missing grommet so components fit snugly and move quietly. What it does:

• Cushions and isolates vibration between parts to reduce noise and wear
• Protects wiring or shafts passing through openings from abrasion
• Helps maintain proper alignment of panels or small components
• Commonly replaced when grommets are cracked, flattened, or missing causing rattling or loose parts

• One replacement grommet

• Basic hand tools may be needed to access the mounting area; refer to your model's service instructions
• Inspect surrounding components for wear and replace any damaged clips or fasteners
• Ensure the grommet seats fully in the opening to provide proper cushion and protection
• Disconnect power before servicing electrical components to avoid shock

This mounting clip secures panels and small components to the appliance frame to prevent movement and vibration. It's a simple, durable replacement that restores proper fit and reduces rattling or loose trim. What it does:

• Holds trim, panels, or small assemblies in place to maintain correct alignment
• Helps stop rattling, vibration noise, and loose-fitting parts
• Restores the original fastener function after a broken or missing clip
• Fits into a designed slot or stud for a secure snap-in connection

• Disconnect power and water before starting any repair
• Remove the affected panel or trim to access the clip; gentle prying may be required
• Align clip with the factory slot or stud and press until it snaps into place
• If clip is brittle or hard to seat, replace any adjacent damaged fasteners for a secure fit

A replacement door switch that lets the appliance detect door open/close and enables normal operation and lighting. Restores reliable door sensing so cycles start and interior lights respond when the door opens. What it does:

• Detects when the door is opened or closed so the appliance can start or stop cycles safely
• Enables or disables the interior light based on door position
• Commonly replaces a faulty or intermittent switch that prevents the unit from starting or the light from working
• Simple electrical/mechanical switching — designed to match original function

• Disconnect power before inspecting or replacing the switch to avoid shock risk
• Access may require removing the control panel or inner door trim depending on model
• Handle the switch and connectors carefully to avoid damaging terminals or wiring

This switch cover replaces the outer housing that protects a dishwasher or appliance control switch and keeps wiring and contacts shielded from moisture and debris. It restores a clean, secure barrier around the switch for reliable operation. What it does:

• Protects the control switch from moisture, grease, and debris that can cause shorts or damage
• Helps maintain proper alignment and spacing for the switch actuator
• Preserves wiring and connector placement to prevent accidental contact
• Reduces risk of arcing or electrical exposure around the switch area

• One replacement switch cover

• Disconnect power to the appliance before beginning work to avoid shock
• Remove any adjoining trim or panels to access the switch; keep fasteners and parts organized
• Inspect the switch and connectors for damage; replace the switch if electrical faults are observed

This 1000W high-wattage resistor replaces the oven/dryer heating control resistor to help regulate element current and restore proper heating behavior. It's a direct-fit heating component used in select Bosch ranges and dryers. What it does:

• Limits or adjusts current to the heating element to help control temperature and heat cycles
• Commonly replaced when the appliance heats inconsistently, not at full power, or trips thermal controls
• Used in heater control assemblies where the resistor has failed or shows visible damage
• Matches OEM form and rating for reliable, long-life operation when installed correctly

• Disconnect power to the appliance before accessing internal components to avoid shock or injury
• Handle with care and replace only if the original shows failure; inspect connectors and wiring for heat damage
• Follow manufacturer service manual for removal and reassembly; secure all connections and panels before testing

This 750 ohm fixed resistor restores the correct resistance on the appliance control circuit so the control board can operate reliably. Use it to replace a burned or open resistor that interrupts normal electrical function. What it does:

• Provides a precise 750 O resistance value used in control and sensing circuits
• Limits or drops voltage to protect downstream components
• Restores stable control-board signals when the original resistor is open or damaged
• Commonly linked to symptoms like intermittent operation, control errors, or failure to start

• Disconnect power to the appliance before attempting service
• Handle the resistor and circuit board carefully to avoid damage; observe ESD precautions
• Confirm orientation and solder joint quality when installing; use proper tools and techniques

This catalyzer housing is the molded enclosure that holds the catalytic element in the appliance's exhaust path, helping control odors and aid in proper venting. It replaces a damaged or cracked housing to restore correct fit and airflow. What it does

• Houses and protects the catalytic element used to reduce odors in the exhaust stream
• Directs exhaust flow through the catalyst for proper operation
• Helps prevent leaks from the exhaust area caused by cracked or broken housing
• Can resolve symptoms such as persistent odors, exhaust dampening, or visible housing damage

• One catalyzer housing

• Verify the appliance is unplugged and water/gas supply is shut off before starting work
• Follow OEM service manual steps for access and removal to avoid damaging adjacent components
• Inspect the catalytic element and seals while replacing the housing; replace seals if brittle or torn

This convection ring element supplies the heat for the oven's convection bake and roast cycles. Replacing a failed element restores even convection performance so foods cook properly across multiple racks.

• Provides the heat source for convection modes; the fan circulates air across this ring for uniform baking
• Common symptoms of failure: no heat in convection, very long preheat, or uneven results during convection cycles
• Visual clues include cracks, blistering, or burn-through on the element band
• Electrical clue: element tests open/infinite (OL) with a multimeter when power is disconnected

• Disconnect power at the breaker before servicing; this is a high-wattage circuit
• Access varies by model: remove the rear panel or the interior convection cover to reach the element and terminals
• Note wire locations and transfer leads to the new element one at a time
• Ensure the element sits flat and does not contact the cavity walls; tighten mounting screws snugly

This convection fan motor circulates oven air to promote even heat distribution for baking and roasting. Replacing a failed motor restores airflow so your oven can maintain more consistent cooking temperatures. What it does:

• Spins the convection fan to move hot air throughout the oven cavity for more even cooking and browning
• Common symptom: uneven baking or roasting where food cooks hotter in some areas
• Common symptom: fan doesn't run, hums, or runs intermittently
• Common symptom: increased vibration or loud noise coming from the oven interior

• Disconnect power to the appliance before starting any service to avoid shock hazard
• Access usually requires removing oven panels or the rear cover; handle sharp sheet metal carefully
• Match part number and connector type before installation; secure mounting and wiring per OEM guidance

Replace a burned-out oven light with this 120V, 15W bulb. It restores interior illumination so you can clearly monitor cooking progress through the window, helping maintain temperature and consistent results.

• Illuminates the oven cavity during preheat, baking, and broiling
• Direct replacement for a failed or dim bulb
• Helps you check food without opening the door
• Common signs of failure: light won't turn on, flickers, or filament appears broken

• Disconnect power to the appliance and allow the oven to cool completely before servicing.
• Remove the glass lens/cover to access the bulb; handle glass carefully.
• Install using a dry cloth or gloves; do not overtighten.
• Match the bulb's voltage and wattage to the original; never exceed the rated wattage.

Replace a burned-out oven light with this 120V, 15W bulb. It restores interior illumination so you can clearly monitor cooking progress through the window, helping maintain temperature and consistent results.

• Illuminates the oven cavity during preheat, baking, and broiling
• Direct replacement for a failed or dim bulb
• Helps you check food without opening the door
• Common signs of failure: light won't turn on, flickers, or filament appears broken

• Disconnect power to the appliance and allow the oven to cool completely before servicing.
• Remove the glass lens/cover to access the bulb; handle glass carefully.
• Install using a dry cloth or gloves; do not overtighten.
• Match the bulb's voltage and wattage to the original; never exceed the rated wattage.

A top insulating mat that helps reduce heat transfer from the oven cavity to the outer top panel, improving temperature control and protecting nearby components. Fits under the oven top panel to help maintain safe surface temperatures. What it does:

• Provides thermal insulation between the oven cavity and top trim/panel
• Helps prevent heat-related damage to wiring, controls, and cabinetry
• Can reduce hot spots on the exterior top surface
• Commonly replaced when the mat is torn, charred, missing, or degraded

• One top insulating mat

• Follow the appliance manufacturer's service manual for proper removal and reassembly
• Disconnect power (unplug or shut off breaker) before starting work
• Handle carefully; replace if torn, compressed, or showing heat damage

This grease filter captures airborne grease from oven ventilation to help reduce buildup and keep internal parts cleaner. It fits flush in the oven vent and is a replaceable maintenance part. What it does:

• Traps cooking grease and airborne oils before they reach fan and ducting
• Helps reduce grease deposits that can cause smoke or odors during cooking
• Supports proper airflow by preventing clogging of the vent path
• Visible grease or darkened filter surface are common signs it needs replacement

• Disconnect power to the appliance before removing or installing the filter
• Slide or snap the filter into the vent slot per the appliance's filter-retention method
• Handle carefully to avoid sharp sheet-metal edges; wear gloves if needed
• Clean surrounding area and check the vent for heavy buildup when replacing

This is a replacement door hinge pin that secures the door hinge assembly and helps the appliance door pivot smoothly. It restores proper door alignment and reduces sagging or binding at the hinge. What it does:

• Replaces a worn or broken hinge pin that lets the door pivot on its hinge
• Helps correct a sagging, misaligned, or uneven door
• Reduces rubbing, binding, or squeaking at the hinge during opening/closing
• Works as a direct-fit mechanical fastener in the hinge assembly

• One (1) door hinge pin

• Disconnect power (and water for dishwashers) before starting any repair
• Remove the door or hinge access panels to reach the pin
• Support the door while removing/installing the pin to avoid injury or damage
• Use appropriate hand tools; do not force parts—inspect hinge components and replace any damaged brackets or bushings

This spacer positions and stabilizes nearby components to ensure proper fit and spacing during appliance assembly. It helps prevent rubbing and maintains correct panel and bracket alignment for quieter, more reliable operation. What it does:

• Keeps fixed parts correctly spaced to prevent contact and wear
• Stabilizes panels or brackets to reduce vibration and noise
• Restores proper alignment when gaps or looseness are present
• Supports fastener placement for secure reassembly

• Disconnect power and water before starting any repair
• Inspect surrounding hardware and replace any damaged fasteners before reinstalling the spacer
• Handle carefully to avoid deforming; install in original orientation and location

This oven door latch assembly is the locking mechanism that secures the door and reports lock status to the control. Replacing a worn latch restores reliable door locking and helps self-clean cycles operate correctly.

• Locks the oven door during Self Clean for safety and temperature containment
• Built-in switches signal locked/unlocked status to the control
• Direct replacement for a latch that is stuck, noisy, or fails to lock/unlock
• Can help with issues such as self-clean not starting/finishing, "door/lock" messages, or a door that won't stay locked

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Access location varies by model; removal of trim/control panel or pulling the oven may be required
• Move wiring one connector at a time to the new assembly; reuse existing hardware as needed
• After installation, verify smooth lock/unlock operation and check door alignment

Replace a burned-out oven light with this 120V, 15W bulb. It restores interior illumination so you can clearly monitor cooking progress through the window, helping maintain temperature and consistent results.

• Illuminates the oven cavity during preheat, baking, and broiling
• Direct replacement for a failed or dim bulb
• Helps you check food without opening the door
• Common signs of failure: light won't turn on, flickers, or filament appears broken

• Disconnect power to the appliance and allow the oven to cool completely before servicing.
• Remove the glass lens/cover to access the bulb; handle glass carefully.
• Install using a dry cloth or gloves; do not overtighten.
• Match the bulb's voltage and wattage to the original; never exceed the rated wattage.

Replace a burned-out oven light with this 120V, 15W bulb. It restores interior illumination so you can clearly monitor cooking progress through the window, helping maintain temperature and consistent results.

• Illuminates the oven cavity during preheat, baking, and broiling
• Direct replacement for a failed or dim bulb
• Helps you check food without opening the door
• Common signs of failure: light won't turn on, flickers, or filament appears broken

• Disconnect power to the appliance and allow the oven to cool completely before servicing.
• Remove the glass lens/cover to access the bulb; handle glass carefully.
• Install using a dry cloth or gloves; do not overtighten.
• Match the bulb's voltage and wattage to the original; never exceed the rated wattage.

This rear insulating mat provides thermal protection behind the appliance cavity, helping reduce heat transfer to the rear panel and nearby components for safe operation and longer part life. What it does

• Shields the rear enclosure and nearby wiring from excess heat
• Helps maintain proper internal temperatures by reducing heat loss
• Prevents heat-related damage or scorching to the cabinet at the rear
• Replace when torn, compressed, or showing burn marks to restore protection

• Disconnect power to the appliance before beginning any service.
• Access typically requires removal of the rear access panel; follow OEM disassembly steps.
• Position the mat with the original orientation and secure per the manufacturer—do not compress or fold.

This solid lower door gasket seals the bottom edge of the dishwasher door to help keep water inside the tub and reduce leaks during cycles. It restores the door's seal for reliable performance and quieter operation. What it does:

• Forms a watertight seal along the dishwasher's lower door edge to prevent leaks
• Helps maintain proper wash performance by keeping water inside the tub
• Reduces door rattling and noise caused by a worn or missing seal
• Compatible with units that use a one-piece solid lower door gasket design

• One solid lower door gasket

• Inspect door and mounting channel for debris or damage; clean before installing the new gasket
• Press the gasket into the door channel evenly, ensuring a flush seal along the entire edge
• Avoid using sharp tools that could nick or tear the gasket during installation
• Disconnect power to the appliance before performing any service to reduce shock risk

This door latch bolt secures the oven door during use so it closes and locks reliably, helping the oven maintain temperature and operate safely. Fits the oven's upper or lower door latch assembly. What it does:

• Engages with the door catch to keep the door closed during cooking and self-clean cycles
• Helps prevent heat loss from the oven cavity when the door is properly latched
• Commonly replaced for symptoms like a door that won't stay fully closed, or a latch that feels loose or broken
• Works as the mechanical bolt component inside the latch mechanism

• High-level replacement only; remove power to the appliance before starting work
• Access typically requires removing the oven door or inner door panel—handle glass and trim carefully
• Use appropriate tools and follow OEM instructions or a service manual for reassembly

This door gasket is a direct replacement sealing strip that restores a tight, energy-efficient seal around the appliance door. Replacing a worn or damaged gasket helps maintain temperature control and reduces leaks. What it does:

• Seals the door edge to prevent air and moisture exchange
• Helps maintain internal temperature and improve efficiency
• Reduces frost buildup, condensation, and food spoilage risk
• Stops air leaks that can cause the compressor to run more often

• One replacement door gasket

• Inspect the door and latch for damage before installing the gasket
• Clean the gasket channel and surrounding surfaces to ensure proper seating
• Warm the gasket slightly to aid fitting if necessary
• Disconnect power or follow appliance-specific safety steps before starting work

This oven temperature probe is the internal sensor that monitors cooking cavity temperature so the oven control can regulate heat for accurate cooking and bake results. It's a direct-replacement sensing probe for compatible Bosch ovens. What it does:

• Measures internal oven temperature and sends readings to the control board
• Allows the oven to maintain set temperatures for consistent cooking
• Common symptoms of a failing probe: inaccurate oven temps, oven not reaching set temperature, or temperature-related error codes
• Works with the oven's control system to help cycle heating elements or gas valve

• Disconnect power to the appliance before servicing to avoid shock hazard
• Handle the probe and its wiring gently; avoid sharp bends or pulling on connectors
• Verify connector orientation and secure connections to the control board per OEM diagram

This is a replacement 4.2 x 8 mm screw used to secure internal panels and components in compatible appliances. It restores proper fastening where the original screw is missing, stripped, or damaged. What it does

• Fastens small appliance panels, brackets, or trim pieces in place
• Restores secure attachment when the original screw is lost or worn
• Helps eliminate rattles or loose parts caused by missing fasteners
• Matches OEM fit and threading for reliable replacement

• Use the correct size screwdriver or driver bit to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to parts or threads
• Turn power off and disconnect the appliance before servicing electrical areas

This door handle gasket is a replacement trim seal that fits around the handle opening to restore a finished appearance and help protect the door edge from wear and moisture. It's a simple, inexpensive fix for cosmetic and seal issues. What it does:

• Replaces a worn or torn gasket to restore the door handle's finished look
• Helps block moisture and dirt from entering the handle cavity
• Reduces rattling or movement caused by a loose or degraded gasket
• Improves grip/feel around the handle area when the original seal is damaged

• One door handle gasket as shown

• Designed for direct replacement; remove old gasket and press new gasket into handle recess
• No special tools required for most installations; use a flat non-marring tool if needed
• Inspect surrounding trim for damage before installing; replace any broken clips or retainers separately
• Disconnect power to the appliance if a panel must be removed for access

Restore smooth, controlled door movement and a tight oven seal with this door hinge. Replacing a worn hinge helps the door close fully, prevents heat loss, and brings back the original opening tension on top or bottom compartments.

• Controls door swing and spring tension for smooth opening/closing
• Maintains alignment so the door gasket seals evenly
• Helps the door stay closed during cooking and hold at designed positions
• Common symptoms: door won't close fully, drops/sags, uneven gap, squeaks/binds, or heat escaping

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door; support it to safely relieve hinge spring tension
• Note hinge orientation and attachment points; transfer and secure the hinge using existing mounting locations
• After reassembly, verify latch engagement and even gasket contact; many ovens use two hinges—replace in pairs if both show wear

This bottom hinge mounting bracket secures the door hinge to the cabinet, providing stable support and proper door alignment. Replacing a worn bracket helps restore smooth, even door movement and reliable closing.

• Supports and anchors the bottom door hinge to the appliance frame
• Helps correct door sagging, misalignment, or poor sealing
• Can reduce rubbing, squeaking, or uneven door movement
• Maintains proper door geometry for consistent operation

• Disconnect power and allow the unit to cool if working near a heated cavity
• Support the door before loosening hinge hardware to prevent strain or injury
• Transfer any screws or hardware from the original bracket if they are reusable
• Check door alignment and tighten all fasteners securely after installation

This is the inner door glass gasket that seals the space around an oven's inner door glass to help maintain proper heat containment and reduce heat loss. Replacing a worn gasket restores a tighter door seal and improves oven performance. What it does:

• Seals between the inner door glass and door frame to limit heat escape and drafts.
• Helps prevent cooking temperature fluctuations and uneven baking caused by a poor seal.
• Reduces hot air or steam from leaking into the cabinet area.
• Cushions and secures the inner glass to limit rattling or vibration.

• Disconnect power (and gas supply for gas ovens) before starting repair and allow oven to fully cool.
• Replacement typically requires removing the oven door and inner glass panel; handle glass carefully to avoid breakage and injury.
• Inspect door frame and mounting grooves for damage or debris and seat gasket fully into channel for a proper seal.

Restore smooth, controlled door movement and a tight oven seal with this door hinge. Replacing a worn hinge helps the door close fully, prevents heat loss, and brings back the original opening tension on top or bottom compartments.

• Controls door swing and spring tension for smooth opening/closing
• Maintains alignment so the door gasket seals evenly
• Helps the door stay closed during cooking and hold at designed positions
• Common symptoms: door won't close fully, drops/sags, uneven gap, squeaks/binds, or heat escaping

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door; support it to safely relieve hinge spring tension
• Note hinge orientation and attachment points; transfer and secure the hinge using existing mounting locations
• After reassembly, verify latch engagement and even gasket contact; many ovens use two hinges—replace in pairs if both show wear

This door latch bolt secures a front-load washer door during operation to help the machine start and run safely. It restores the door's ability to lock and stay closed for normal wash cycles. What it does:

• Engages with the door strike to hold the door closed while the washer is running.
• Allows the machine to detect a secure door and begin the selected cycle.
• Helps prevent leaks and interrupts caused by an unlatched door.
• Commonly replaces worn, broken, or bent latch bolts that prevent proper door closure.

• Disconnect power and water before beginning any repair.
• Access typically requires opening the washer door trim or front panel; follow OEM disassembly instructions.
• Inspect surrounding strike and latch housing for damage; replace if necessary.

This insulating mat set replaces the thermal insulation around the oven cavity to reduce heat transfer and help the oven maintain stable cooking temperatures. It protects surrounding components and cabinet finishes from excess heat. What it does:

• Replaces worn or damaged cavity insulation that can cause heat loss or higher exterior cabinet temperatures
• Helps the oven maintain consistent internal temperatures for more even cooking
• Protects nearby wiring, controls and cabinet materials from excessive heat
• Reduces heat escaping into the kitchen, improving energy efficiency when intact

• Disconnect power and allow the appliance to cool completely before starting
• Access typically requires removing oven panels or pulling the range/oven from the cabinet — follow your model's service manual
• Wear gloves and eye protection; insulation fibers can irritate skin and lungs
