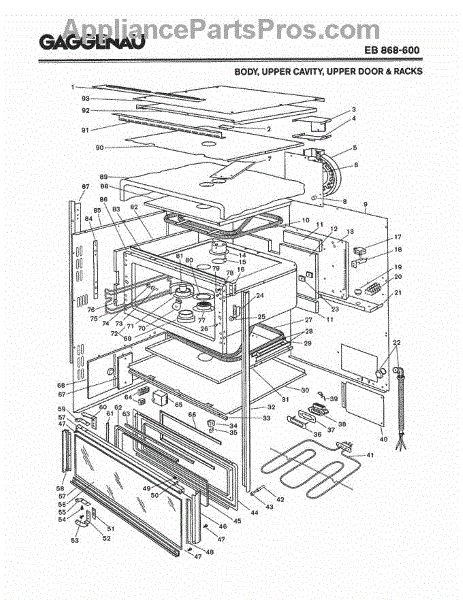

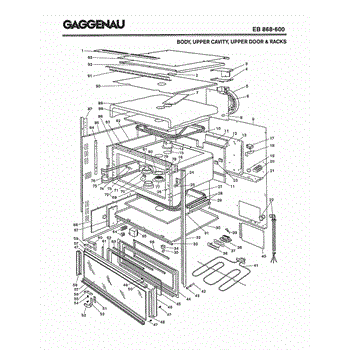

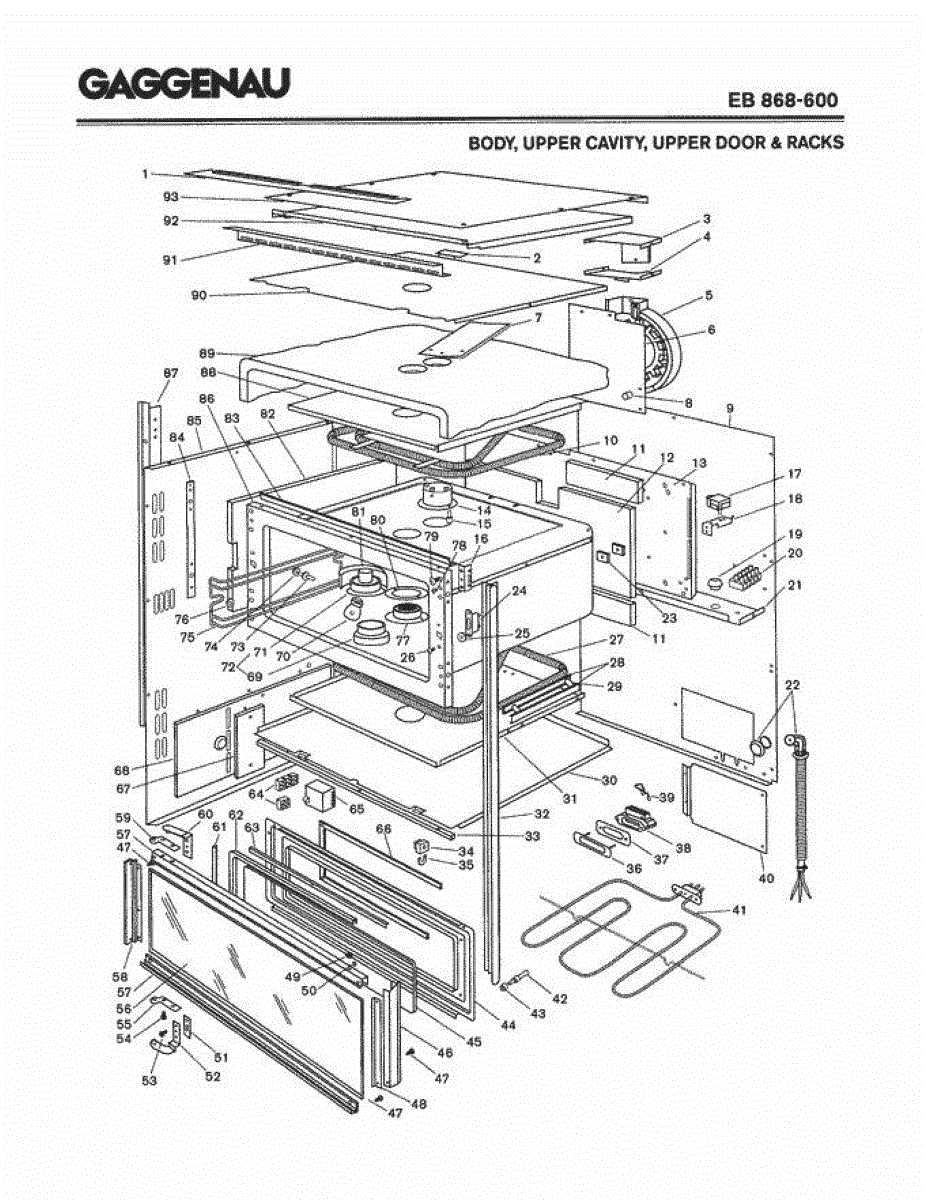

Parts for Gaggenau EB868-600: 03 - Body, Upper Cavity, Upper Door & Racks Parts

This fan motor powers the appliance's blower to circulate air for proper cooling and ventilation, restoring airflow and helping maintain consistent temperatures. It replaces a failed motor to stop noise or loss of circulation. What it does:

• Spins the blower to move air through the appliance for cooling, exhaust, or circulation
• Restores normal airflow when the appliance has weak or no air movement
• Stops excessive motor noise or vibration caused by a worn or failing motor
• Helps prevent overheating by re-establishing proper ventilation

• Disconnect power to the appliance before starting any repair
• Handle the motor carefully; avoid exposing electrical connections to moisture
• Basic hand tools are typically required; refer to the service manual for disassembly steps
• Secure all connectors before testing

This rear insulating mat provides thermal protection behind the appliance cavity, helping reduce heat transfer to the rear panel and nearby components for safe operation and longer part life. What it does

• Shields the rear enclosure and nearby wiring from excess heat
• Helps maintain proper internal temperatures by reducing heat loss
• Prevents heat-related damage or scorching to the cabinet at the rear
• Replace when torn, compressed, or showing burn marks to restore protection

• Disconnect power to the appliance before beginning any service.
• Access typically requires removal of the rear access panel; follow OEM disassembly steps.
• Position the mat with the original orientation and secure per the manufacturer—do not compress or fold.

This rubber grommet cushions and secures a shaft or panel opening to reduce vibration and prevent metal-on-metal wear. It replaces a worn or missing grommet so components fit snugly and move quietly. What it does:

• Cushions and isolates vibration between parts to reduce noise and wear
• Protects wiring or shafts passing through openings from abrasion
• Helps maintain proper alignment of panels or small components
• Commonly replaced when grommets are cracked, flattened, or missing causing rattling or loose parts

• One replacement grommet

• Basic hand tools may be needed to access the mounting area; refer to your model's service instructions
• Inspect surrounding components for wear and replace any damaged clips or fasteners
• Ensure the grommet seats fully in the opening to provide proper cushion and protection
• Disconnect power before servicing electrical components to avoid shock

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This oven door latch assembly is the locking mechanism that secures the door and reports lock status to the control. Replacing a worn latch restores reliable door locking and helps self-clean cycles operate correctly.

• Locks the oven door during Self Clean for safety and temperature containment
• Built-in switches signal locked/unlocked status to the control
• Direct replacement for a latch that is stuck, noisy, or fails to lock/unlock
• Can help with issues such as self-clean not starting/finishing, "door/lock" messages, or a door that won't stay locked

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Access location varies by model; removal of trim/control panel or pulling the oven may be required
• Move wiring one connector at a time to the new assembly; reuse existing hardware as needed
• After installation, verify smooth lock/unlock operation and check door alignment

This small rubber gasket seals and cushions an M4 fastener to help prevent leaks and reduce vibration at attachment points. It's a compact replacement part used where a watertight or vibration-damping seal is needed. What it does:

• Creates a seal around an M4 screw or bolt to help prevent water intrusion
• Cushions fasteners to reduce vibration, noise, and metal-on-metal wear
• Restores a tightened fastener's proper sealing surface when the original gasket is worn
• Helps maintain appliance integrity around panels, brackets, or connections

• Power off and unplug the appliance before starting any repair.
• Confirm the gasket's size matches the fastener and seating area before installation.
• Install flat against the mating surface; tighten fastener snugly but avoid over-torquing which can deform the gasket.
• Handle small parts carefully and retain any removed hardware for reassembly.

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This door latch bolt secures the oven door during use so it closes and locks reliably, helping the oven maintain temperature and operate safely. Fits the oven's upper or lower door latch assembly. What it does:

• Engages with the door catch to keep the door closed during cooking and self-clean cycles
• Helps prevent heat loss from the oven cavity when the door is properly latched
• Commonly replaced for symptoms like a door that won't stay fully closed, or a latch that feels loose or broken
• Works as the mechanical bolt component inside the latch mechanism

• High-level replacement only; remove power to the appliance before starting work
• Access typically requires removing the oven door or inner door panel—handle glass and trim carefully
• Use appropriate tools and follow OEM instructions or a service manual for reassembly

This M5 nut secures M5-threaded fasteners used throughout appliances for holding panels, brackets and small assemblies. It provides a simple, reliable fastening solution to replace missing or damaged nuts and restore proper fit. What it does:

• Secures M5 bolts/studs to hold panels, mounts or small components in place
• Stops loose or rattling panels and restores correct assembly alignment
• Replaces corroded, stripped or missing nuts that cause instability
• Works where a standard M5 metric nut is specified by the manufacturer

• Disconnect power and water supply before accessing appliance internals
• Use the proper M5 wrench or socket; ensure matching bolt thread engagement
• Tighten to firm snugness—avoid overtightening which can strip threads
• Inspect mating bolt/stud for damage and replace if threads are worn

This is a replacement 4.2 x 8 mm screw used to secure internal panels and components in compatible appliances. It restores proper fastening where the original screw is missing, stripped, or damaged. What it does

• Fastens small appliance panels, brackets, or trim pieces in place
• Restores secure attachment when the original screw is lost or worn
• Helps eliminate rattles or loose parts caused by missing fasteners
• Matches OEM fit and threading for reliable replacement

• Use the correct size screwdriver or driver bit to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to parts or threads
• Turn power off and disconnect the appliance before servicing electrical areas

This bottom hinge mounting bracket secures the door hinge to the cabinet, providing stable support and proper door alignment. Replacing a worn bracket helps restore smooth, even door movement and reliable closing.

• Supports and anchors the bottom door hinge to the appliance frame
• Helps correct door sagging, misalignment, or poor sealing
• Can reduce rubbing, squeaking, or uneven door movement
• Maintains proper door geometry for consistent operation

• Disconnect power and allow the unit to cool if working near a heated cavity
• Support the door before loosening hinge hardware to prevent strain or injury
• Transfer any screws or hardware from the original bracket if they are reusable
• Check door alignment and tighten all fasteners securely after installation

This is a replacement door hinge designed for the top oven door, restoring smooth opening and proper door alignment for safe, even cooking. Fits the specified top oven hinge location and replaces worn or bent hinges. What it does:

• Secures the top oven door to the oven frame and guides door motion during opening and closing
• Restores proper door alignment to help maintain consistent oven temperature and seal
• Reduces sagging, sticking, or uneven door movement caused by a worn hinge
• Compatible only with the specified top oven hinge location

• One (1) door hinge for the top oven

• Turn off power to the appliance before servicing and follow manufacturer's safety recommendations
• Use appropriate tools and support the oven door while removing/installing the hinge to avoid injury or damage
• Reuse original screws or order the correct fasteners separately

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

Replace a burned-out oven light with this 120V, 15W bulb. It restores interior illumination so you can clearly monitor cooking progress through the window, helping maintain temperature and consistent results.

• Illuminates the oven cavity during preheat, baking, and broiling
• Direct replacement for a failed or dim bulb
• Helps you check food without opening the door
• Common signs of failure: light won't turn on, flickers, or filament appears broken

• Disconnect power to the appliance and allow the oven to cool completely before servicing.
• Remove the glass lens/cover to access the bulb; handle glass carefully.
• Install using a dry cloth or gloves; do not overtighten.
• Match the bulb's voltage and wattage to the original; never exceed the rated wattage.

This bulb socket is the replacement lamp holder for oven and range interior lights, restoring a secure electrical connection so the light bulb powers reliably for oven lighting and visibility while cooking. What it does:

• Holds and connects the oven light bulb to the appliance wiring for a stable electrical connection
• Re-establishes interior lighting when a damaged or worn socket causes the light to flicker or not illuminate
• Provides a properly seated contact to prevent intermittent contact and arcing symptoms
• Works with the oven's existing bulb and mounting location to restore normal lighting function

• One bulb socket (lamp holder) as described

• Disconnect power to the appliance (unplug or switch off circuit breaker) before servicing
• Access the socket through the oven light cover or interior panel per your model's disassembly steps
• Remove the old socket and transfer wiring or terminals exactly as removed; replace with this socket and reinstall cover

This door latch bolt secures a front-load washer door during operation to help the machine start and run safely. It restores the door's ability to lock and stay closed for normal wash cycles. What it does:

• Engages with the door strike to hold the door closed while the washer is running.
• Allows the machine to detect a secure door and begin the selected cycle.
• Helps prevent leaks and interrupts caused by an unlatched door.
• Commonly replaces worn, broken, or bent latch bolts that prevent proper door closure.

• Disconnect power and water before beginning any repair.
• Access typically requires opening the washer door trim or front panel; follow OEM disassembly instructions.
• Inspect surrounding strike and latch housing for damage; replace if necessary.

This is the upper oven filter that helps keep the oven cavity and ventilation area cleaner for better performance and odor control. It replaces a worn or clogged filter to restore proper airflow through the upper oven vent. What it does:

• Traps grease, food particles and debris that can build up in the upper oven vent
• Helps reduce lingering cooking odors and excess smoke during use
• Maintains designed airflow paths for consistent oven operation
• Useful when the existing filter is torn, collapsed, heavily soiled or missing

• One upper oven filter

• Allow the oven to cool completely and disconnect power (and gas if applicable) before servicing
• Remove oven racks or access panels as needed to reach the upper vent area
• Install the filter in the correct orientation and secure it per the manufacturer's instructions

This is a replacement door hinge pin that secures the door hinge assembly and helps the appliance door pivot smoothly. It restores proper door alignment and reduces sagging or binding at the hinge. What it does:

• Replaces a worn or broken hinge pin that lets the door pivot on its hinge
• Helps correct a sagging, misaligned, or uneven door
• Reduces rubbing, binding, or squeaking at the hinge during opening/closing
• Works as a direct-fit mechanical fastener in the hinge assembly

• One (1) door hinge pin

• Disconnect power (and water for dishwashers) before starting any repair
• Remove the door or hinge access panels to reach the pin
• Support the door while removing/installing the pin to avoid injury or damage
• Use appropriate hand tools; do not force parts—inspect hinge components and replace any damaged brackets or bushings

This right sidewall is a factory-style replacement panel that restores the dishwasher's inner cavity protection and appearance. It helps cover internal components and maintain the tub enclosure for proper operation and safety. What it does:

• Replaces a cracked, dented, or missing right inner sidewall panel
• Protects wiring, hoses, and components from debris and water exposure
• Reduces rattles or vibration caused by loose or damaged panels
• Restores a proper seal and fit inside the dishwasher tub to help prevent splashing onto adjacent parts

• Disconnect power and water supply before beginning any repair
• Remove outer panels and mounting screws to access and replace the sidewall
• Handle edges carefully; sheet metal can be sharp — wear gloves and eye protection
• Secure all fasteners; do not operate the appliance with panels missing
