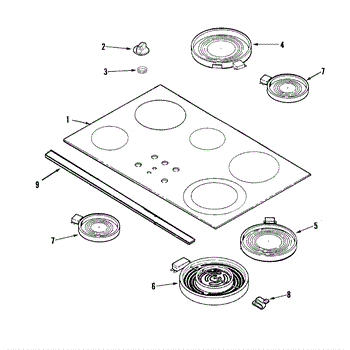

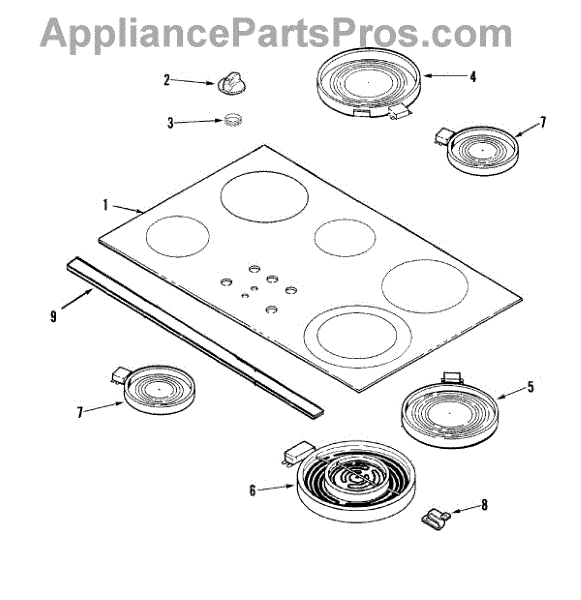

Parts for Maytag MEC5536BAS: 02 - Top Assembly Parts

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents

Gas valve burner control knob. Color: Black. Measures about 2 inches in diameter. For white order WP74011408.

Color: black. Measures about 1-1/2 inches in diameter.

This surface heating element replaces a damaged or nonworking stovetop burner to restore even heat for cooking. It fits most compatible electric ranges and gives you a direct replacement for a faulty top burner element. What it does

• Provides the heating element that transfers heat to cookware on the cooktop
• Restores proper burner heat when an element no longer warms or cycles correctly
• Helps eliminate uneven cooking or intermittent on/off heating from a failed element
• Works as a direct replacement for the corresponding top/burner element on compatible ranges

• Disconnect power to the range before removing or installing the element to avoid electrical shock
• Pull the element straight out of the terminal block; avoid bending terminals or damaging the receptacle
• Inspect the burner receptacle for damage and replace if corroded or loose
• After installation, test the element on low and high settings and watch for proper operation

Restore reliable heat to your electric range or cooktop with this surface heating element. Replacing a failed top-burner element brings back consistent, even heating so pots and pans heat up properly at your chosen setting.

• Supplies electric heat to a cooktop burner zone when turned on
• Common fix for a burner that won't heat or only partially glows/heats
• Helps address uneven or slow heating on the affected element
• Replace if the element shows visible breaks, blisters, or has shorted

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Access varies by model; support and protect glass tops when lifting/removing
• Photograph wiring; transfer any original brackets, insulators, or limiter/thermostat if present
• Ensure clean, tight terminal connections; fully reassemble before restoring power

This 2000W bake element heats the oven cavity for baking and roasting, restoring oven cooking performance. It replaces a failed or damaged bake element to help your range reach and maintain proper baking temperatures. What it does:

• Heats the oven interior during bake cycles for even cooking
• Restores normal oven temperature when a broken element prevents heating
• Replaces elements with visible breaks, burning, or no heat output
• Helps resolve inconsistent baking and undercooked food when element-related

• Disconnect power to the range at the breaker before starting any repair
• Handle terminals and ceramic insulators carefully to avoid damage
• Basic hand tools typically required; follow your model's service instructions

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even cooking performance and reliable heat for everyday pots and pans. What it does:

• Provides direct heat to cookware on the cooktop so burners reach cooking temperature
• Replaces a cracked, broken, or non-heating top burner element
• Fixes symptoms like a burner that stays cool, heats intermittently, or heats unevenly
• Works as a direct replacement for the listed part when the element is the failed component

• Disconnect power to the appliance at the breaker or unplug the range before starting any work
• Allow the cooktop and element to cool completely; handle carefully to avoid cuts from edges
• Reconnect wires to the matching terminals and secure the element in the appropriate retainer;

This surface heating element restores reliable heat to an electric cooktop burner so pots and pans warm evenly and predictably. Replace a failed element to bring consistent performance back to your range or smooth-top cooktop.

• Supplies heat to a single cooking zone on an electric range or glass-top cooktop
• Replaces an element that is open, shorted, or intermittently heating
• Common symptoms: burner won't heat, heats unevenly, or only part of the zone glows
• Helpful when there is visible damage or hot spots on the element

• Disconnect power at the breaker; allow the cooktop to cool completely
• Access the element by lifting/removing the cooktop or from below
• Move wires one at a time to matching terminals; reuse any mounting clips/brackets as required
• Support the glass top during service and avoid stressing or scratching the surface

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

This surface heating element powers one of your range's top burners, restoring steady, responsive heat for everyday cooking. Replace a failed element to bring your cooktop back to consistent performance when boiling, simmering, or sautéing.

• Provides heat to the selected surface burner when the control is turned on
• Works with the burner switch to reach and maintain set temperatures
• Common symptoms of failure: burner won't heat, heats unevenly or intermittently, or shows visible damage/hot spots
• Helps resolve long heat-up times and inconsistent cooking results

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing.
• Access and mounting vary by model; note wire locations and transfer any brackets/clips from the original element.
• Inspect terminals and connectors; replace any heat-damaged wiring or receptacles before reconnecting.
• Handle by the frame and avoid stressing the element; ensure secure electrical connections before testing.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.

Razor blade scraper.
