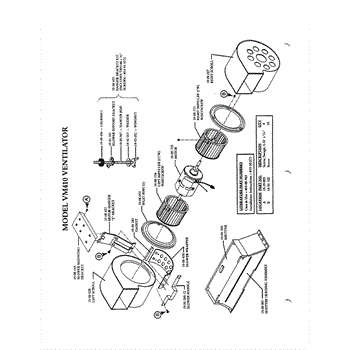

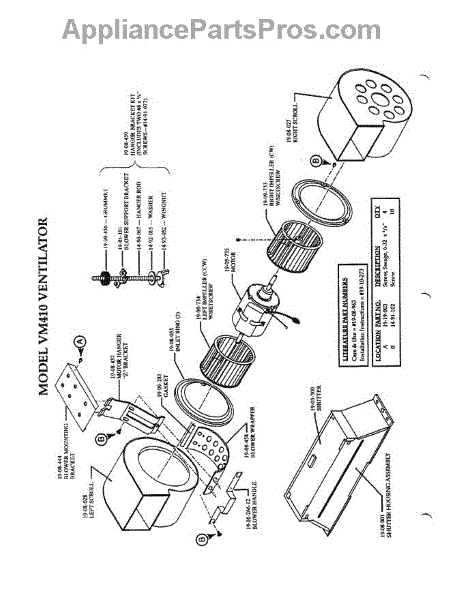

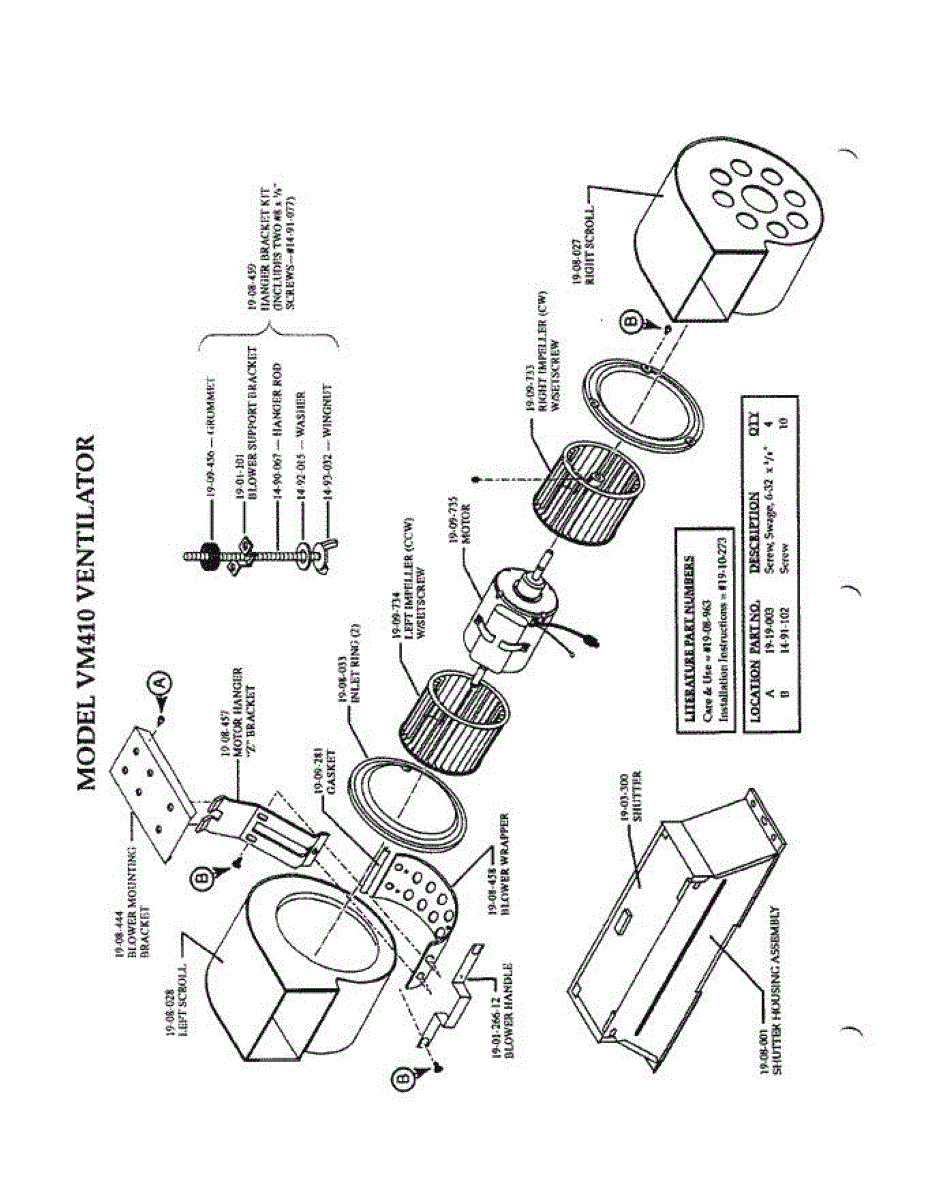

Parts for Thermador VM410: 02 - Ventilator Parts

Mounting bracket secures your range hood to the wall or cabinet. Replace if the original is cracked, bent, or missing to ensure safe installation.

This ventilation duct channels air and exhaust from the range hood to the exterior vent opening. It ensures proper airflow so cooking fumes, smoke, and grease are efficiently removed from the kitchen. Replace if the duct is cracked, blocked, or damaged, which can cause poor ventilation performance or unusual noise during hood operation.

This inlet ring is a small sealing/retention part that helps secure the appliance inlet connection and maintain a leak-resistant seal for proper water flow. Use it to restore a tight inlet connection and prevent drips. What it does

• Forms a seal at the appliance inlet to help prevent leaks from the connection.
• Helps hold inlet hoses or fittings securely in place.
• Replace if the existing ring is cracked, flattened, or leaking.
• Can resolve symptoms such as visible dripping at the inlet, loose inlet fittings, or reduced fill performance.

• Turn off water supply and power to the appliance before beginning any work.
• Inspect mating surfaces and replace any damaged hoses or fittings when present.
• Lubricate the ring with a small amount of approved appliance-safe lubricant; avoid petroleum-based products unless specified.
• After installation, restore water and power and check the connection carefully for leaks.

Replace your range hood's blower wrapper housing if the cover is cracked, broken, or missing. This housing encases the blower motor assembly in your ventilation system.

This wing nut secures components that use a 1/4-20 threaded fastener, offering an easy hand-tightening solution for service and maintenance. Zinc plating helps resist corrosion in typical appliance environments. What it does:

• Provides a thumb-adjustable fastening point for panels, brackets, or trim that use 1/4-20 threads
• Replaces missing or stripped wing nuts that cause loose or rattling parts
• Allows tool-free removal for frequent access panels or removable components
• Zinc finish helps reduce rust and wear in normal household use

• Always unplug the appliance or disconnect power before performing service
• Thread onto clean, matched 1/4-20 bolt or stud; start by hand to avoid cross-threading
• Hand-tighten for normal use; use pliers only if additional torque is required — avoid overtightening

This is a machine bolt used to secure components in compatible Bosch appliances, providing a tight, reliable fastened connection for panels, brackets, or assemblies. What it does

• Secures appliance parts and assemblies where a 1/4-20 threaded fastener is required
• Provides a strong, vibration-resistant connection when tightened with a 1/2" hex wrench
• Commonly used for mounting brackets, panels, or internal components
• Helps restore proper fit and function when a damaged or missing bolt causes looseness or rattling

• One machine bolt (1/4-20 x 5) with 1/2" hex head

• Use the correct 1/2" socket or wrench and tighten to the equipment manufacturer's torque specification
• Inspect mating threads and replace if stripped; do not force a damaged screw
• Disconnect power and follow appliance safety procedures before accessing internal parts
• Replace other fasteners showing wear as a set for best fit and safety

Blower support bracket for range hood ventilation systems. Secures and stabilizes the blower motor assembly. Replace if cracked, bent, or missing.

Support bracket grommet for range hoods. Cushions and stabilizes the mounting bracket. Replace if cracked, worn, or missing for proper installation.

Hanger bracket assembly for range hood installation. Secures hood to wall or cabinet. Replace if bent, cracked, or missing for proper mounting support.

Fix weak ventilation or excessive noise in your range hood with a new blower wheel. Restores proper airflow and reduces operating sound levels.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
