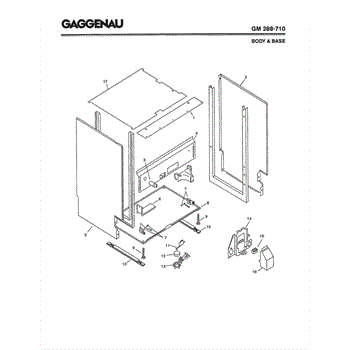

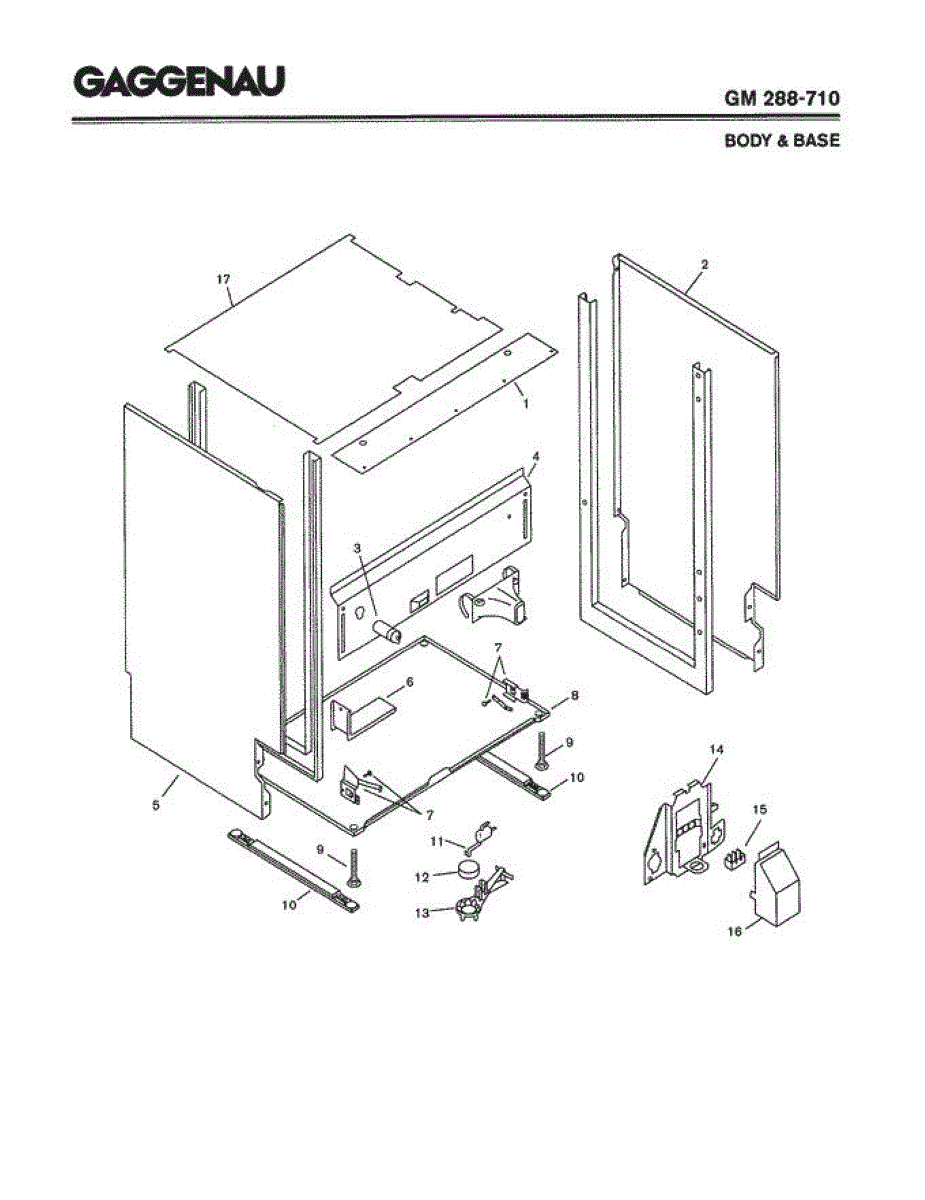

Parts for Gaggenau GM288-710: 03 - Body & Base Parts

This moisture shield protects internal components from water and condensation, helping prevent moisture damage that can cause corrosion or electrical problems. Simple replacement maintains proper moisture control and appliance reliability. What it does:

• Redirects or blocks water and condensation away from sensitive parts
• Helps prevent shorting, corrosion, and moisture-related failures
• Supports normal drainage and airflow in the affected area
• Restores the appliance's original moisture-protection layout after damage or wear

• One moisture shield

• Replace with the appliance powered off and unplugged for safety
• Inspect mounting tabs and surrounding seals; replace any damaged fasteners
• Position the shield exactly as the original part to maintain drainage paths
• Address affected components before reassembly

This part has been discontinued by the manufacturer and is no longer available.

This suspension replaces a worn tub support to stabilize the appliance's tub, reduce vibration, and restore proper alignment for smooth operation. It's a direct-fit replacement intended for compatible Bosch appliances. What it does:

• Supports and centers the tub or assembly to prevent sagging and uneven movement
• Dampens vibration and reduces noise during cycles
• Helps maintain proper door/hinge alignment affected by a loose or broken support
• Common symptom: excessive rocking, banging, or noisy operation during use

• One suspension tub support

• Follow the appliance manufacturer's service manual for safe removal and replacement
• Disconnect power and water before beginning service where applicable
• Inspect adjacent mounts, springs, and fasteners and replace if worn

This float set replaces worn or damaged water-level floats in compatible dishwashers to help restore proper water sensing and prevent overfilling. Each small plastic float sits in the tub base and works with the level sensor. What it does

• Provides individual replacement floats that ride in the tub base and trigger the dishwasher's water-level sensing system.
• Helps address symptoms like persistent overfill warnings, improper fill levels, or water-level sensor errors when floats are cracked or missing.
• Restores consistent contact with the level housing so the machine can detect and stop filling at the correct point.
• Useful when multiple floats show wear, discoloration, or physical damage affecting movement.

• Five (5) replacement plastic floats.

• Disconnect power to the appliance before starting any repair; also shut off the water if accessing connected plumbing.
• Access the lower tub/base per your model's service instructions.
• Remove old floats from their sockets and snap new floats into position; confirm they move freely and aren't obstructed by debris.
• After reassembly, restore power and run a short fill/drain cycle to confirm proper operation and no leaks.

This terminal block is the appliance wiring connector that secures incoming power and links internal circuits, restoring a safe, reliable electrical connection. Replaces a damaged or burned block to help prevent intermittent power or arcing. What it does

• Provides a secure connection point for incoming power leads and internal wiring
• Restores continuity when a cracked, corroded, or burned terminal causes loss of power
• Helps stop arcing, sparking, or overheating at the power entry point
• Used where multiple wires must be joined and fastened to the appliance chassis

• One terminal block

• Disconnect all power before inspecting or replacing the terminal block
• Verify wire locations and take photos or label wires before removal for correct reassembly
• Tighten connections to manufacturer torque spec—do not over-tighten screws
• If you see extensive burn or damaged wiring, replace damaged wires.
