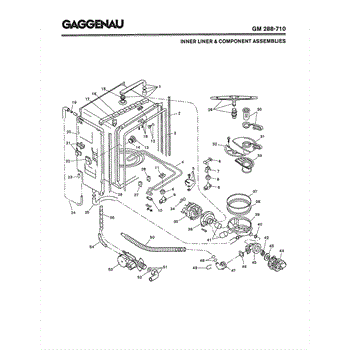

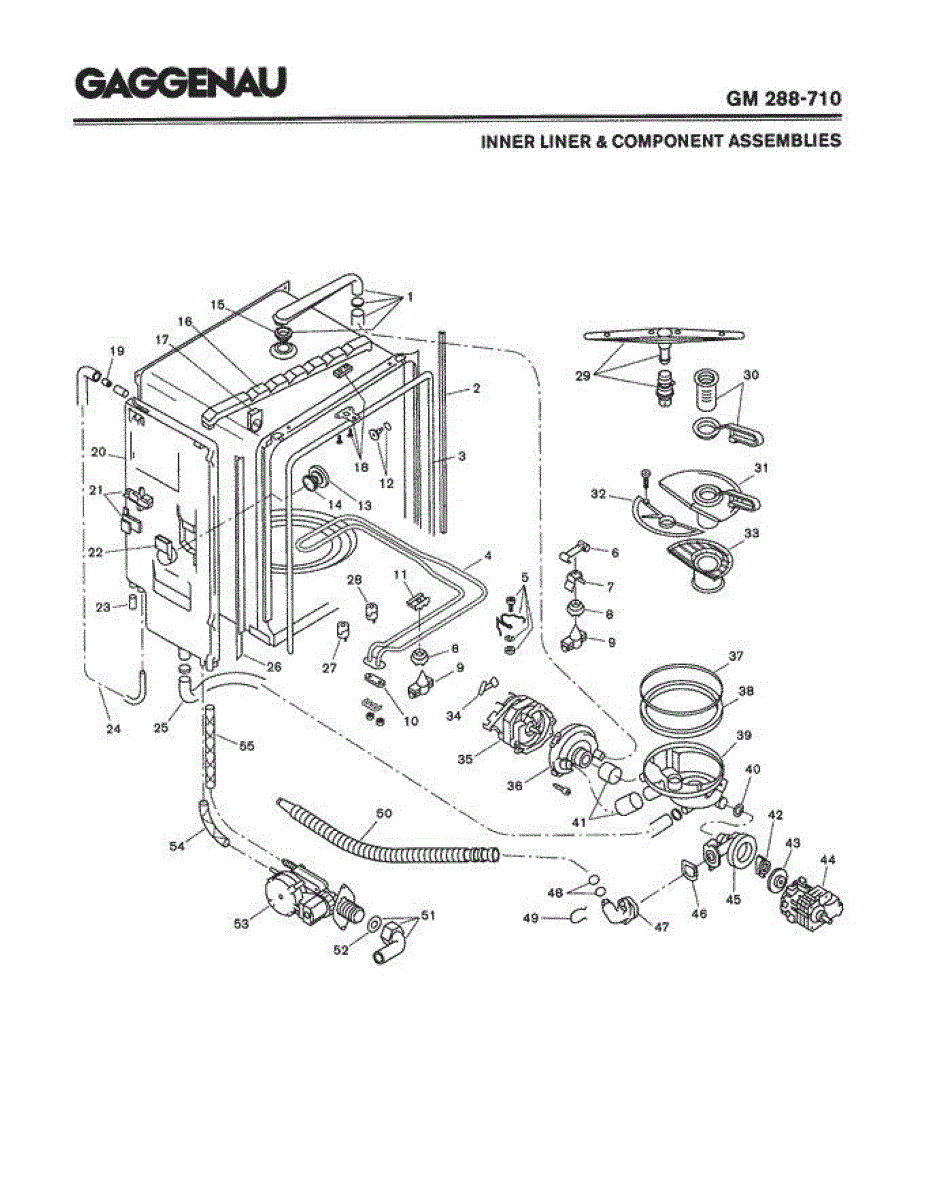

Parts for Gaggenau GM288-710: 02 - Inner Liner & Component Assemblies Parts

This door seal is the flexible gasket that runs around the dishwasher door opening to help keep water inside the tub during a wash cycle. It restores a secure, watertight seal and reduces leaks and drips. What it does:

• Provides a watertight barrier between the door and tub to prevent leaks during operation
• Cushions the door edge for quieter closing and helps maintain consistent wash performance
• Worn, cracked, or flattened seals can allow water to drip or pool at the dishwasher base
• Replacing a damaged seal helps protect cabinetry and flooring from water damage

• High-level replacement: remove the inner door panel or trim as required, pull out the old seal, and press the new seal into the channel
• Inspect the gasket channel for debris or damage before installing the new seal
• Ensure the seal is fully seated and the door closes evenly to avoid pinching or gaps
• Disconnect power and water if removal of panels exposes electrical or plumbing connections

185lf.

This door gasket is a flexible rubber seal that helps keep appliance doors closed tight to prevent leaks and maintain internal temperature. It replaces a worn or damaged door seal to restore a proper seal and reduce moisture or air loss. What it does:

• Forms a continuous seal around the appliance door to help prevent water leaks and air infiltration
• Helps maintain consistent internal temperature by reducing air exchange
• Reduces noise and vibration caused by a poor door fit
• Commonly replaced when the seal is cracked, torn, warped, or no longer holds suction

• One door gasket

• High-level replacement: most installations require removing the old gasket and seating the new gasket into the door channel
• Inspect the door flange and mounting channel for debris or damage before installing the new gasket
• Use gentle pressure to avoid tearing the gasket; some models benefit from warming the gasket slightly to improve flexibility
• Disconnect power and water (if applicable) and follow safety instructions in your appliance manual before attempting installation

This vent cover replaces the exhaust trim that directs airflow and protects the appliance vent opening. It restores proper exhaust routing and a finished appearance for safe, efficient operation. What it does:

• Covers and shields the appliance exhaust opening to keep debris and pests out
• Helps direct airflow from the appliance to the household vent system
• Commonly replaced when cracked, warped, or damaged around the vent opening
• Can reduce air leakage and visible gaps around the vent area

• One vent cover

• Follow the appliance service manual for panel removal and reinstallation steps
• Verify correct orientation before fastening; avoid overtightening mounting screws
• Disconnect power (and gas, if applicable) and work on a cool appliance for safety

This rubber gasket seals appliance openings to help prevent water and air leaks and restore proper door/tub sealing. It replaces a worn or damaged seal to reduce leaking and maintain normal appliance performance. What it does

• Creates a watertight/airtight barrier between mating surfaces to prevent leaks.
• Helps maintain operating temperature and efficiency by sealing the door/tub.
• Common symptom: visible water around the door or base during use.
• Common symptom: cracked, flattened, or distorted seal material that no longer compresses.
• Works as a direct replacement for the matching OEM seal when damaged or worn.

• One gasket as shown on the product page.

• Turn off power and water supply to the appliance before starting any repair.
• Remove the old seal carefully, clean the mounting channel of debris and residue, and inspect the mating surface.
• Press the new gasket evenly into the channel, starting at one corner and working around to ensure full seating without twists.
• Test the door closure and run a short cycle to confirm there are no leaks; re-seat if necessary.

161lf.

This thermostat (124°F) is a temperature control switch that helps an appliance maintain its designed operating temperature, protecting components and improving performance when the original control fails. What it does:

• Closes or opens the circuit at about 124°F to regulate appliance temperature
• Restores proper on/off cycling when a failed thermostat prevents heating or cooling
• Helps prevent overheating or inadequate temperature by signaling the appliance control
• Commonly related to issues such as temperature not reaching setpoint, intermittent heating, or unit cycling too frequently

• Disconnect power before inspecting or replacing the thermostat to avoid shock or damage
• Handle terminals and sensing elements carefully; verify proper orientation and seating during installation
• Test the thermostat with a multimeter and refer to the appliance wiring diagram or service manual

This outer housing case protects and supports internal components for a dishwasher or appliance assembly, restoring safe enclosure and structural alignment. It helps keep electronics and moving parts secure from debris and moisture. What it does

• Provides a protective shell for internal components to prevent damage and contamination
• Maintains correct spacing and alignment for mounted assemblies and fasteners
• Helps reduce vibration and keeps parts securely positioned during operation
• Can stop light ingress and limit exposure of electrical parts to moisture

• One outer housing case

• Disconnect power (and water, if applicable) before beginning any repair
• Installation typically requires removing trim or fasteners and snapping or screwing the case into place
• Handle edges carefully to avoid damaging clips or seals; replace any broken fasteners

This part has been discontinued by the manufacturer and is no longer available.

This replacement sump hose routes wastewater from the dishwasher sump to the drain/pump assembly, restoring proper draining and preventing leaks. It's a direct-fit service part for repairing faulty or deteriorated drain connections. What it does:

• Carries water from the sump to the drain pump so the dishwasher can empty properly
• Replaces cracked, clogged, or collapsed hose sections that cause standing water
• Helps stop leaks that can occur when the hose degrades or separates at fittings
• Can resolve drain-related faults and clearing-cycle failures tied to poor flow

• One sump hose

• Disconnect power and water supply before starting any repair
• Inspect and replace any worn clamps or connectors; use manufacturer-recommended clamps
• Route the hose as original to avoid kinks and ensure secure connections at both ends
• After installation, run a short drain cycle and check all connections for leaks

The Drain Motor Assembly is an OEM part for Bosch dishwashers. The drain motor assembly is responsible for draining dirty water from wash cycles and filling the dishwasher with clean water for the next use.

Symptoms of a bad drain motor assembly can include:

• Dishwasher failing to completely drain wash water
• Continuous running or buzzing drain motor sounds
• Accumulation of standing water at the bottom

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This front pump housing is the molded enclosure that directs water through the dishwasher's wash/circulation pump, restoring proper water flow and helping stop leaks. It's a direct-fit replacement for the pump assembly front housing. What it does:

• Houses and seals the front section of the dishwasher wash/circulation pump to route water through the spray system
• Replaces cracked or warped housings that can cause external leaks under the dishwasher
• Restores correct water circulation when a damaged housing disrupts pump flow or spray performance
• Can reduce unusual pump noise when damage or loose mounting allows vibration

• Disconnect power and turn off the water supply before starting repair
• Remove dishwasher panels and follow OEM disassembly to access the pump assembly; this part mounts to the pump/motor
• Inspect and replace any worn seals, gaskets, or mounting hardware removed during service
• After installation, reconnect power/water and run a short cycle to check for leaks and proper water circulation

The Drain Hose is an OEM part for Bosch dishwashers, designed to facilitate the efficient and reliable expulsion of wastewater from the appliance to the household drainage system. This component ensures that used water is properly drained out after each wash cycle, preventing water from backing up and causing issues within the dishwasher.  The hose measures 5 feet. This Bosch dishwasher drain hose comes with one O-ring. For the 1-foot drain hose order 00298556.

Causes for replacement may include clogs from food particles or debris, physical damage such as cracks or splits that lead to leaks, or a hose that has become stiff and noncompliant over time.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after the cycle has completed, indicating a failure to drain.
• Leaks under the dishwasher, which may be a sign of a cracked or damaged hose.
• Poor dishwasher performance or error codes related to drainage problems.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Water valve elbow.

Comes with two filters.
