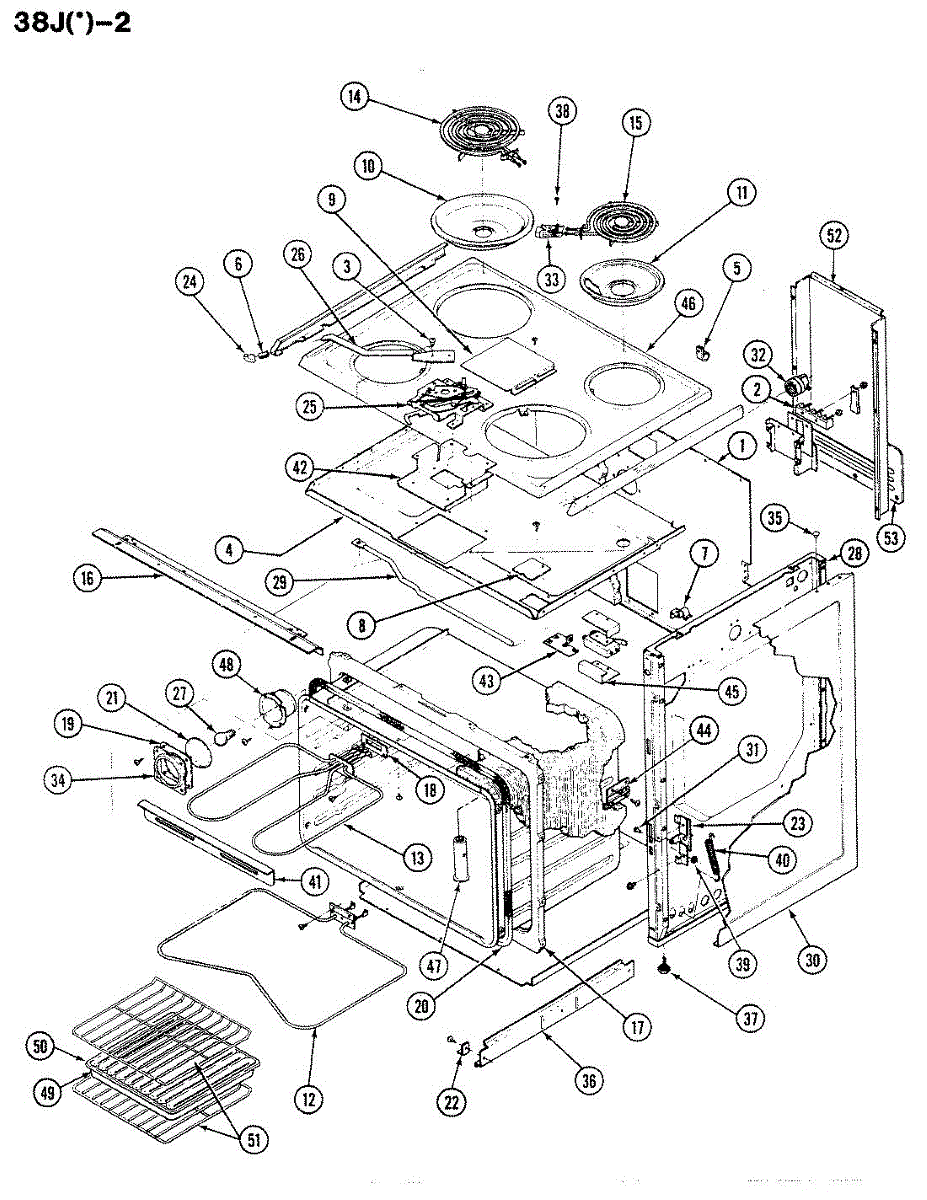

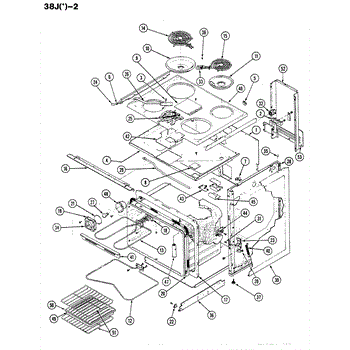

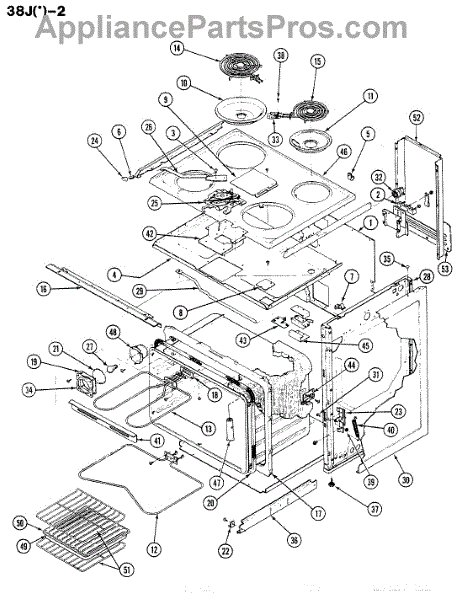

Parts for Magic Chef 38JA-2CW: 03 - Body Parts

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

For screws order: WP7101P485-60.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

This bake element supplies the primary heat from the bottom of the oven during the Bake cycle. Replace it to restore proper preheating and even results when the original is burned out, damaged, or no longer heating. What it does:

• Provides radiant heat for baking and preheating from the lower oven position
• Helps the oven reach and maintain the set temperature for consistent cooking
• Common symptoms: no heat in Bake, very slow preheating, uneven baking, or a visible blister/crack in the element
• Restores normal oven operation when the existing element has failed

• 1 bake element

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; take out the element's mounting screws and gently pull the element forward
• Support and disconnect the two wire terminals; prevent wires from slipping back into the insulation
• Attach wires to the new element, secure with existing hardware, restore power, and test

The Broil Element is an OEM part for Whirlpool ranges. This part provides the intense, direct heat necessary for broiling. This part is located at the top of the oven cavity and is essential for achieving high temperatures needed for tasks like browning and searing.

Causes of a bad broil element can include electrical issues such as short circuits, damage from spills or food debris, and general wear and tear from repeated use.

Symptoms of a bad Broil Element include:

• The oven not reaching broil temperatures
• Inconsistent or uneven broiling
• The element not glowing red when in use
• Visible signs of damage or burning on the element

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

2100W. Size: 8 inch. Location: Right front.

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This part has been discontinued by the manufacturer and is no longer available.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This genuine pin hinge secures and guides the appliance door, restoring smooth pivoting and proper alignment for reliable opening and closing. It's a direct-fit replacement designed to help stop door sag, binding, or uneven gaps. What it does:

• Provides the pivot point that lets the door swing open and closed
• Keeps the door aligned to the cabinet for a proper seal and even gap
• Replaces worn or bent pins that cause door sag, scraping, or noisy operation
• Helps restore smooth, wobble-free door motion

• Disconnect power (and water for dishwashers) before starting work
• Support the door during removal to prevent dropping or damage
• Simple hand tools typically required; reuse original screws unless damaged
• If the door has glass or heavy panels, get a helper to hold weight during installation

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This part has been discontinued by the manufacturer and is no longer available.

This oven door spring restores the door's counterbalance so it opens smoothly and closes firmly. Replacing a fatigued spring helps prevent heat loss and supports consistent baking by ensuring the door seals properly. What it does:

• Provides tension to counterbalance the oven door through the hinge mechanism
• Helps the door close fully against the gasket to retain heat
• Restores smooth, controlled opening and closing action
• Common symptoms of a worn spring: door drops or feels heavy, won't stay closed, heat escaping/uneven temperatures

• One oven door spring

• Disconnect electrical power; turn off gas supply to the range if applicable
• Springs and hinges are under tension—support the door/hinge and use caution
• Note spring hook positions/orientation before removal; reinstall in the same locations
• After replacement, verify the door closes fully and the seal is even

This part has been discontinued by the manufacturer and is no longer available.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
