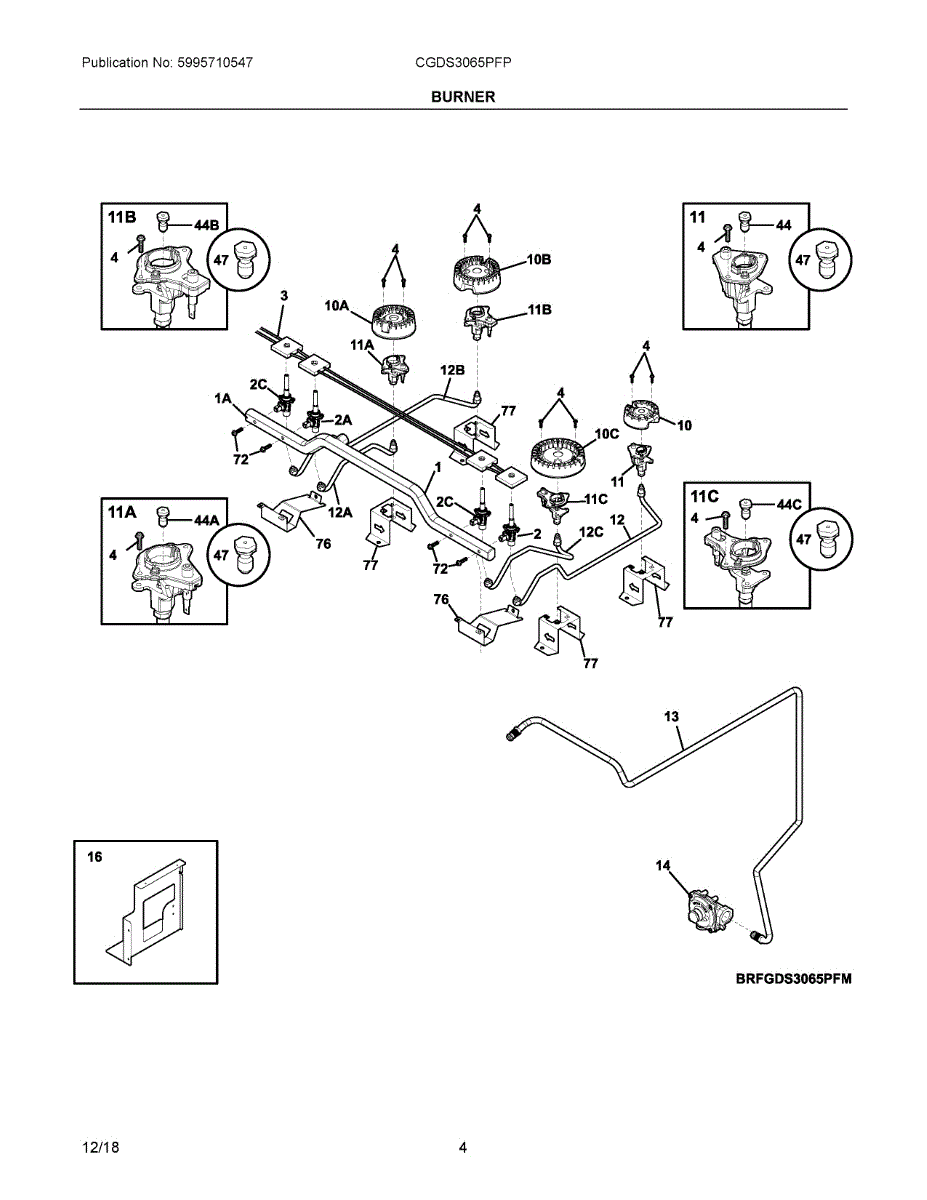

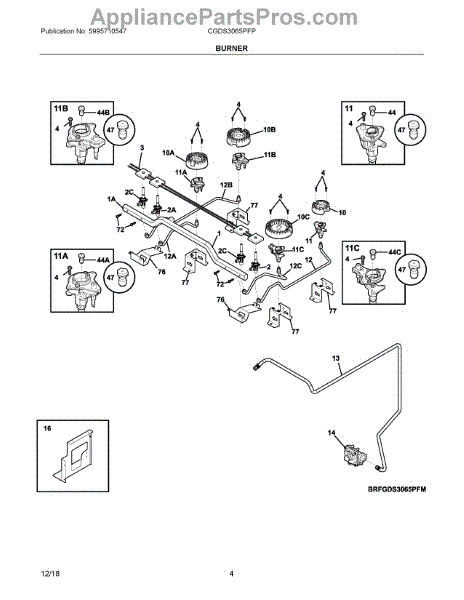

Parts for Electrolux CGDS3065PFP: 03 - Burner Parts

This is a surface burner valve for a gas range that controls the flow of gas to an individual cooktop burner. It connects to the burner knob and regulates gas output to adjust flame height. Replace this valve if a burner won't light, the flame cannot be adjusted, or you notice gas leaking near the control knob area.

Burner won't turn on or light? This gas valve controls gas flow to surface burners on your range. Common fix for non-functioning burners. Moderate DIY.

This is a top burner gas valve that controls the flow of gas to a surface burner on a gas range. It connects to the burner control knob and regulates the flame from low to high settings. Replace this valve if a surface burner won't ignite, the flame is difficult to adjust, or you detect a gas smell even when the knob is in the off position.

Oven won't ignite or pilot light fails? This spark ignition switch and harness controls burner ignition in gas ranges. Moderate DIY repair.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly replaces the burner gas orifice and ignitor used to light a gas cooktop or range. It restores reliable spark ignition and corrects flame delivery for safer, more consistent burner operation. What it does:

• Provides the ignitor electrode and matched gas orifice to initiate and shape the burner flame
• Helps stop intermittent or no-light conditions caused by a faulty ignitor or clogged orifice
• Can improve weak or uneven flames when the orifice is damaged or misaligned
• Works as a direct replacement assembly for the specified burner configuration

• One ignitor orifice assembly (electrode and orifice preassembled)

• Turn off gas supply and disconnect power before starting any repair
• Use proper tools to remove the burner cap and access the assembly; handle the ignitor electrode carefully to avoid damage
• Verify correct alignment and secure the assembly per manufacturer torque recommendations; test for proper ignition and gas leaks after installation

This ignitor orifice assembly routes gas to the oven igniter so burners light reliably. It replaces a damaged or clogged orifice to restore consistent ignition and safe burner operation. What it does:

• Directs gas flow from the manifold to the igniter/pilot so the burner can light
• Helps restore proper ignition when the burner sparks but fails to light
• Replaces corroded, clogged, or damaged orifice hardware that can weaken flame
• Works with standard oven/range ignition systems that use a separate orifice assembly

• One ignitor orifice assembly

• Turn off gas supply and disconnect power before attempting service
• Basic hand tools required; avoid overtightening fittings to prevent damage
• Check for gas leaks with a non-corrosive leak detector after installation

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Controls gas pressure to your range burners and oven. Replace if cracked, leaking, or damaged to restore consistent flame output and safe operation.

Gas burner orifice meters fuel flow to the cooktop burner. Replace if cracked, damaged, or when converting between natural gas and LP propane.

Meters gas flow to your range or cooktop burner for proper flame size. Replace worn, clogged, or missing orifices or when converting between propane and natural gas.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Converts your range between natural gas and propane fuel types. Includes orifices and parts needed to safely reconfigure gas burners for proper operation.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

This mounting bracket secures internal components to the appliance chassis, restoring proper alignment and support so panels, drawers or assemblies stay stable during use. Designed to match the OEM fit and function. What it does

• Provides a secure mounting point to hold panels, housings or assemblies in place
• Restores proper alignment when a bent or broken bracket causes looseness or rattling
• Prevents further damage by supporting attached components during normal operation
• Useful when bracket clips or screw tabs are cracked, bent, or missing

• One mounting bracket

• Use the correct screws and fasteners for your model; replace any damaged hardware
• Disconnect power and water before beginning repairs
• Handle sharp sheet-metal edges carefully and wear gloves to avoid cuts

This is a wiring harness that routes electrical connections between the control board, heating elements, switches, and other components inside the range. It ensures proper power distribution and signal communication throughout the appliance. Replace this harness if you experience intermittent heating, error codes, or if the wiring shows signs of heat damage, melting, or broken connectors.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
