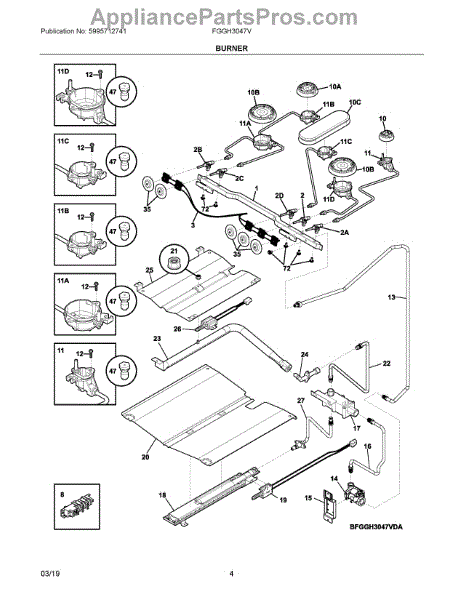

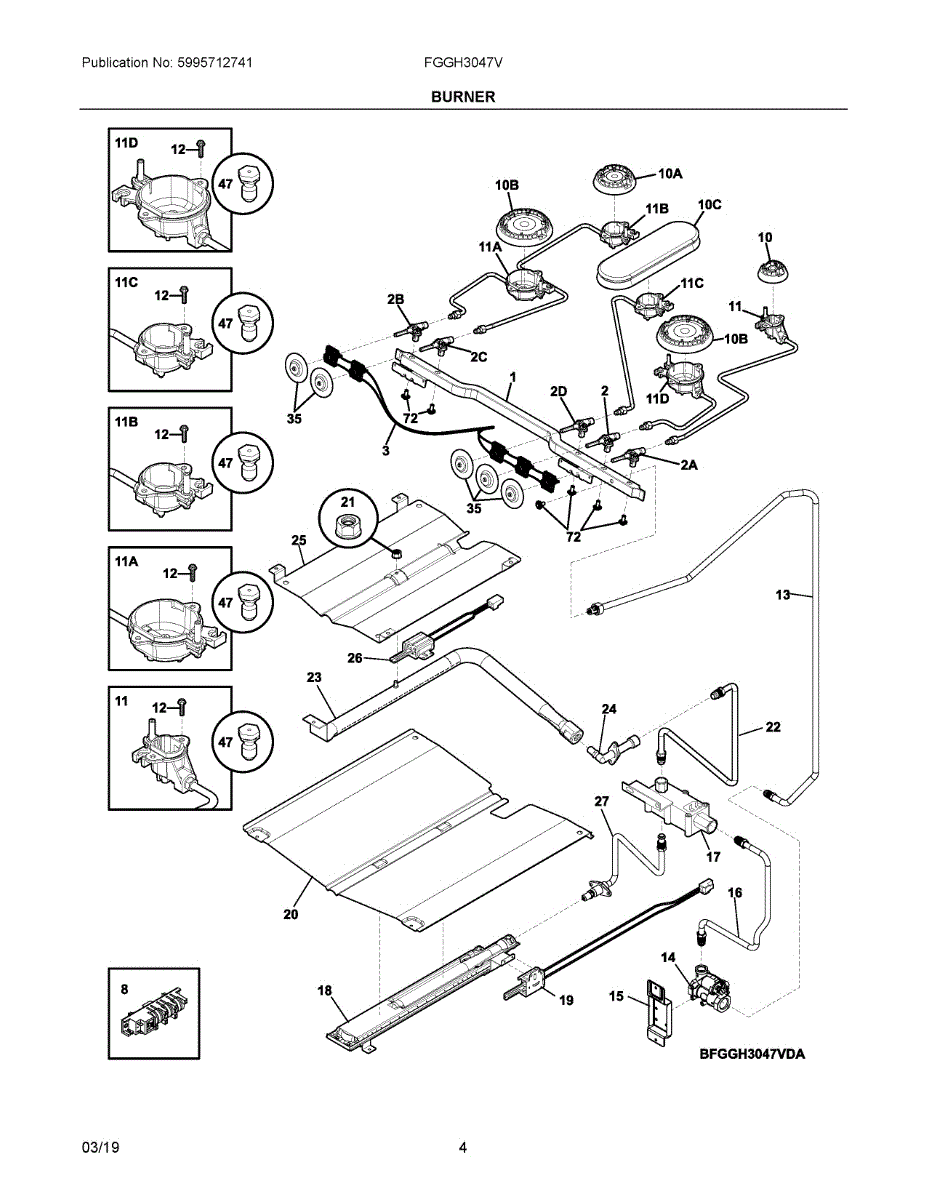

Parts for Electrolux FGGH3047VDA: 03 - Burner Parts

This manifold directs gas from the control valve to the range burners, ensuring each burner receives regulated fuel for ignition and cooking. Replacing a damaged manifold restores proper gas flow and burner operation. What it does:

• Channels gas from the oven/range valve to individual burner ports for ignition
• Ensures even distribution to burners so flames light and stay lit
• Can fail from corrosion, leaks, or impact, causing low flame, uneven burners, or a gas odor
• Helps maintain safe operation when installed and tested

• One manifold assembly as shown

• Turn off gas supply and electricity before starting work; leak-test all connections after installation
• Replace only with the exact OEM part number to ensure fit and safe operation
• Follow local codes and manufacturer service instructions during installation

This is a surface burner valve for a gas range that controls the flow of gas to an individual cooktop burner. It connects to the burner knob and regulates gas output to adjust flame height. Replace this valve if a burner won't light, the flame cannot be adjusted, or you notice gas leaking near the control knob area.

Burner won't turn on or light? This gas valve controls gas flow to surface burners on your range. Common fix for non-functioning burners. Moderate DIY.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


Fix a burner that won't light or sparks without gas flow. This surface burner valve controls gas to one burner. Replace if knob turns but burner won't ignite.

This is a top burner gas valve that controls the flow of gas to a surface burner on a gas range. It connects to the burner control knob and regulates the flame from low to high settings. Replace this valve if a surface burner won't ignite, the flame is difficult to adjust, or you detect a gas smell even when the knob is in the off position.

Fix a gas range that won't ignite or has burners that won't turn off with this switch assembly. Moderate DIY repair for restoring burner control.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Fixes uneven heating or burners that won't ignite on your gas range. This burner assembly restores proper flame distribution for safe, consistent cooking.

Securely houses and supports gas range burner assemblies. Replace if cracked, broken, or warped to restore proper burner positioning and stability.

The Surface Burner Base is an OEM part for Frigidaire gas ranges. It provides a stable foundation and housing for the range's burners. Each burner base has a molded indentation to securely hold the burner assembly in place while cooking.

Causes of a bad Surface Burner Base can include warping or distortion from overheating, cracks or punctures from impact or mishandling, or damage from corrosion over time.

Symptoms of a bad Surface Burner Base include:

• Burners wobbling or moving out of position during use
• Gas or liquid leaks around burner housing
• Irregular or uneven cooking performance
• Loose, damaged, or missing burner assemblies

This genuine OEM Frigidaire base is also compatible with some Electrolux, Gibson, Kelvinator, and Kenmore models.

Burner base mounts and houses the gas burner on your cooktop surface. Replace if cracked, discolored, or damaged to restore proper burner placement.

This ignitor orifice assembly mounts at the oven burner to deliver and direct gas to the ignitor so the burner can light reliably. Designed to restore proper ignition where the orifice and ignitor meet. What it does:

• Directs gas flow to the ignitor area so the burner can light
• Supports stable ignition and consistent burner lighting
• Works with the burner/ignitor interface; not a standalone ignitor

• Turn off gas supply and electrical power before starting any service
• Basic hand tools required; follow OEM service instructions for safe removal/installation
• Inspect nearby fittings and gaskets for damage and replace if leaking
• If you smell gas or are unsure, stop.

Burner won't ignite or clicks but doesn't light? This ignitor orifice assembly restores proper gas flow and ignition. Moderate DIY repair for gas ranges.

This ignitor orifice assembly replaces the gas feed and ignition interface on compatible gas ovens and ranges, restoring reliable spark and proper gas delivery for burner ignition. Use it when ignition or burner performance is inconsistent. What it does:

• Directs gas flow to the igniter/burner and provides the correct orifice opening for safe ignition
• Allows the igniter to light the burner reliably for even cooking heat
• Commonly used when burners won't light, take too long to ignite, or flame is weak/uneven
• Matches OEM mounting and gas-port alignment for straightforward replacement

• One ignitor orifice assembly

• Turn off gas supply and electrical power before beginning work
• Follow manufacturer instructions and local codes for testing for leaks after installation

Delivers precise gas flow and ignition alignment for safe burner lighting. Replace when experiencing delayed ignition or burner failure. Confirm fit with your model.

Controls gas flow to the oven burner for reliable ignition. Replace if oven won't light, ignites slowly, or flames are uneven. Confirm fit with model number.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Tube component for gas ranges. Installs in the burner assembly to direct gas flow. Replace if cracked, damaged, or missing to restore proper function.

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Fixes oven not heating or slow to heat issues. Controls gas flow to burner for safe ignition. Common repair for delayed heating or no heat problems.

This electric surface burner replaces a worn or broken cooktop heating element to restore even heating for pots and pans. It's a direct-replacement heating element commonly used on many Frigidaire electric ranges and cooktops. What it does:

• Heats cookware by converting electrical energy into heat for stovetop cooking
• Replaces cracked, unresponsive, or unevenly heating elements
• Helps stop sparks, intermittent heating, or a burner that won't warm
• Works with compatible receptacles and cooktop wiring to complete the circuit

• One electric surface burner element

• Disconnect power to the range at the breaker or unplug before servicing
• Remove the cooktop grate and any retaining clips to lift out the old element; reinstall in reverse order
• Inspect terminal connections and receptacle for damage; replace receptacle if corroded or loose

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

Fixes uneven baking or hot spots in your gas range oven. This heat baffle distributes flames evenly across the oven cavity for consistent cooking results.

This is an orifice elbow fitting that connects to the broil burner assembly in a gas range. It directs and regulates the gas flow to the broil burner for proper ignition and flame output. Replace this part if the broil burner produces an uneven flame, fails to ignite consistently, or if the fitting is cracked or corroded and causing a gas leak.

Fixes uneven oven temperatures caused by poor airflow. This air deflector baffle restores proper heat distribution in your gas range for even baking.

Oven won't heat or takes too long to ignite? This gas range igniter draws current to light the burner. Straightforward DIY repair in under an hour.

This is a gas supply tube that delivers gas to the broil burner in a gas range or oven. It connects the gas valve to the broil burner assembly, allowing fuel to reach the burner for proper ignition. Replace this tube if you notice a gas smell near the broiler, if the broil burner won't light or heats unevenly, or if the tube shows signs of corrosion or damage.

The Bushing is an OEM part for Frigidaire cooktops. This part serves as an interface between the control knob and the appliance, ensuring smooth operation and protecting both the knob and the control panel from wear and tear. The bushing fits snugly around the valve's stem, reducing friction and providing stability as the knob is turned to adjust the heat settings of the cooktop.

Causes of a bad Bushing can include degradation from frequent use, exposure to high heat, or accidental damage during cleaning or use, which can lead to the bushing becoming loose or worn out.

Symptoms of a malfunctioning Bushing include:

• Loose-feeling knobs that wobble or are difficult to turn
• Excessive wear or visible damage to the knob or panel area
• Difficulty in achieving precise temperature control
• Unusual noise when turning the knobs

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Converts your gas range from natural gas to LP (propane) fuel. Includes orifices and components for burners and oven. Replace when switching fuel types.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Range not powering on or losing electrical connection? This replacement wire lead restores damaged wiring to resume reliable operation. Direct fit.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
