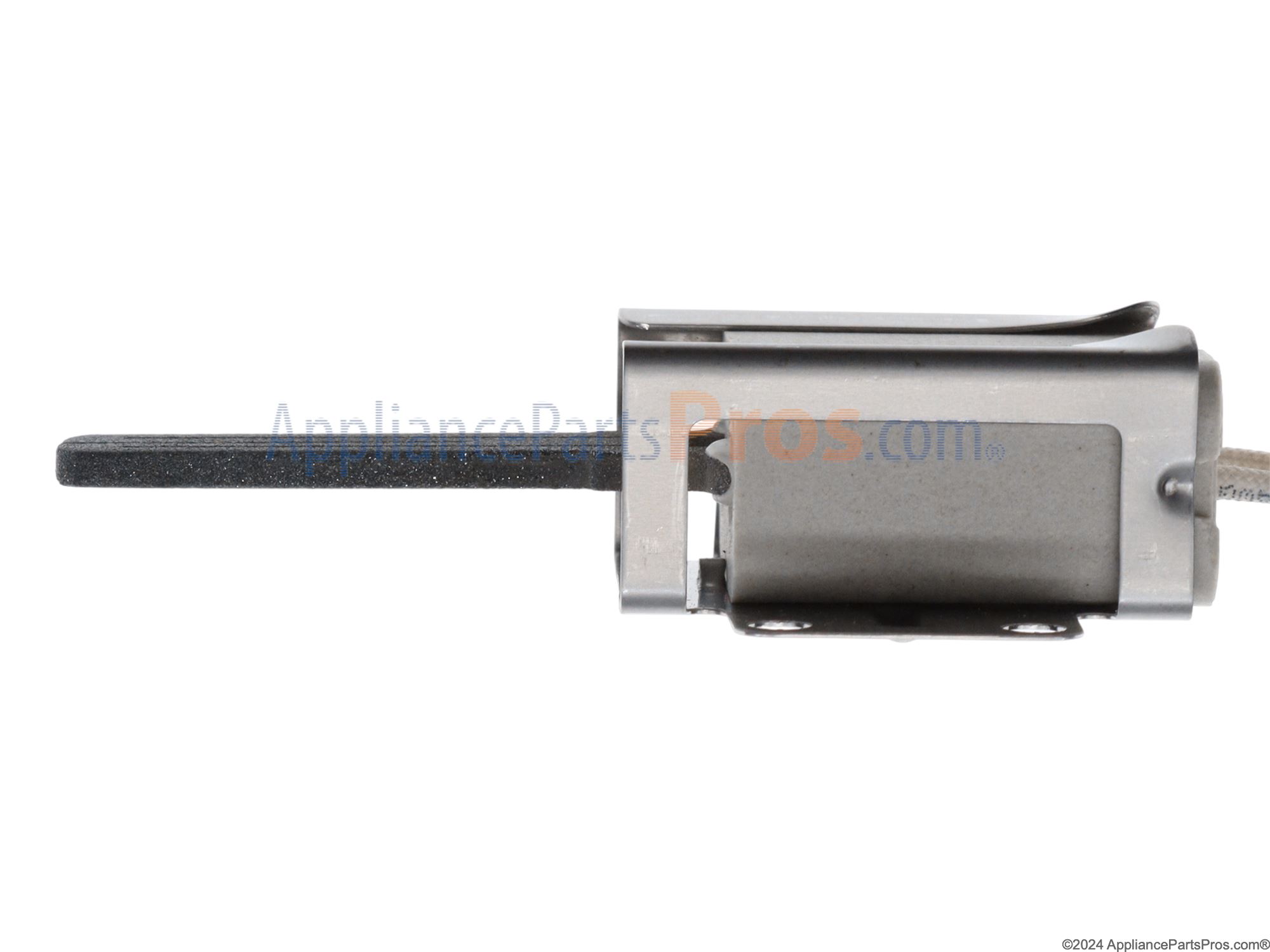

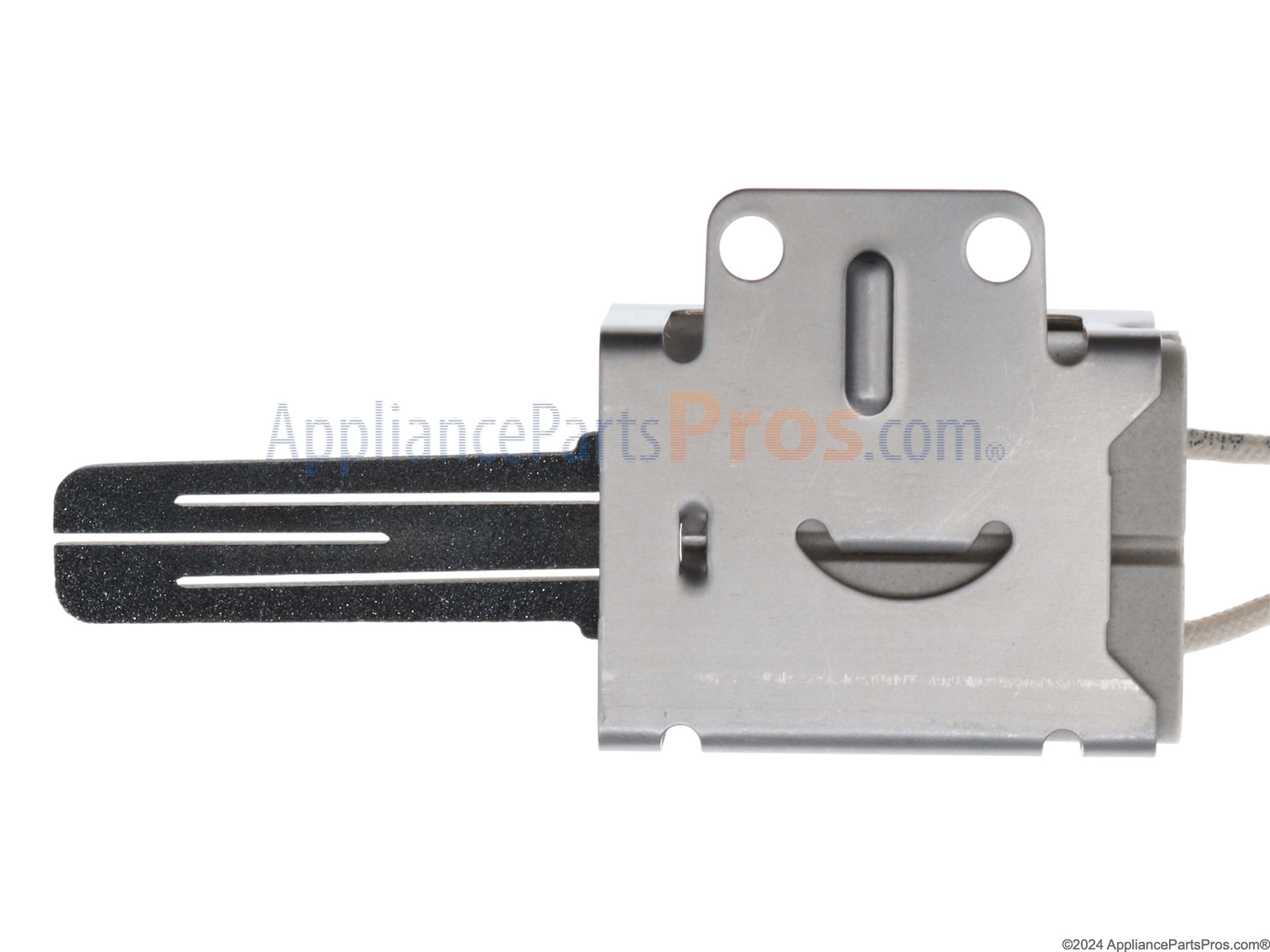

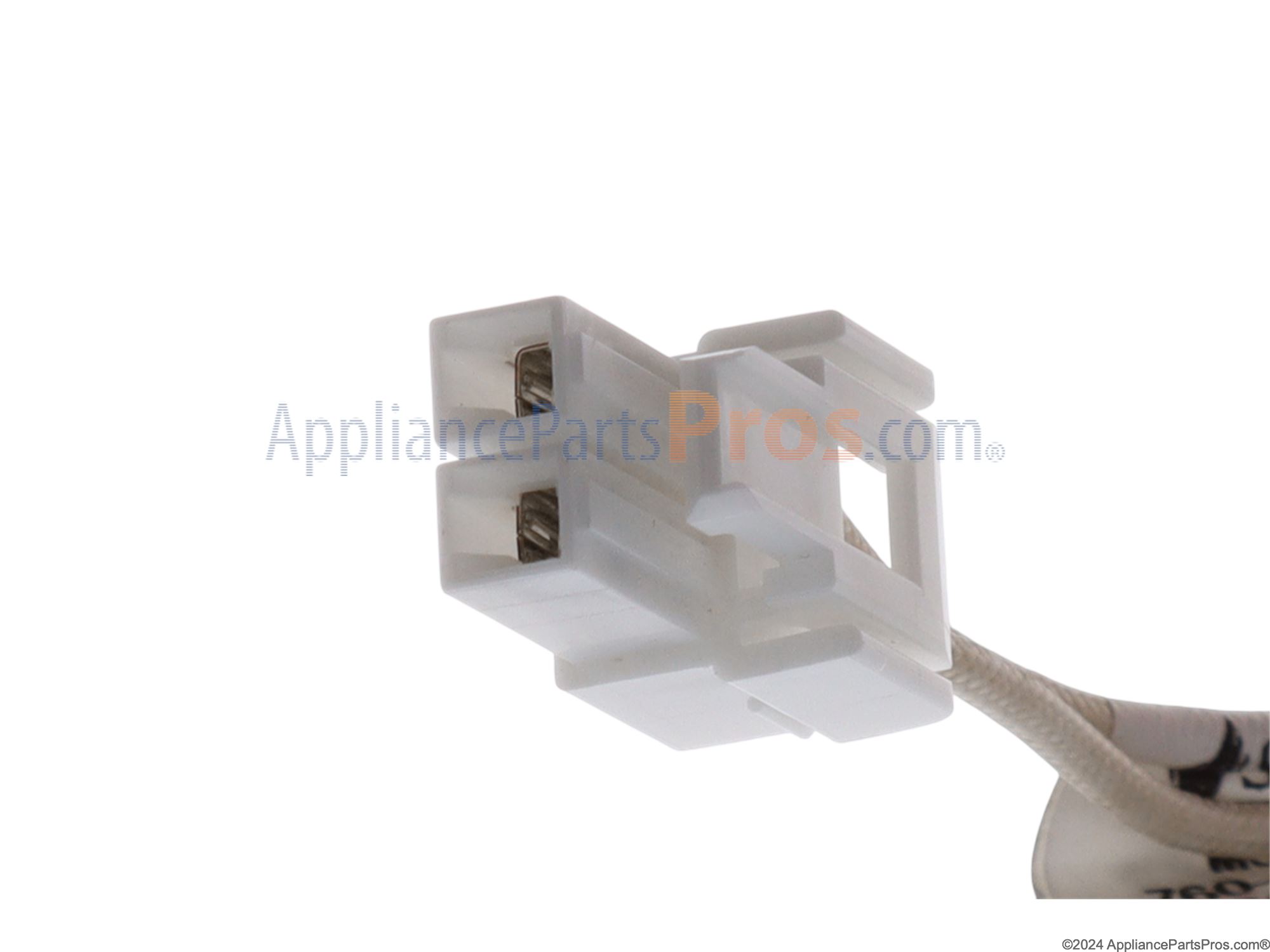

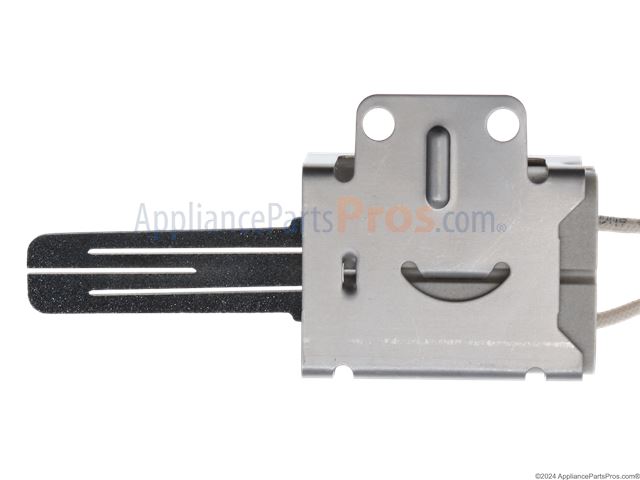

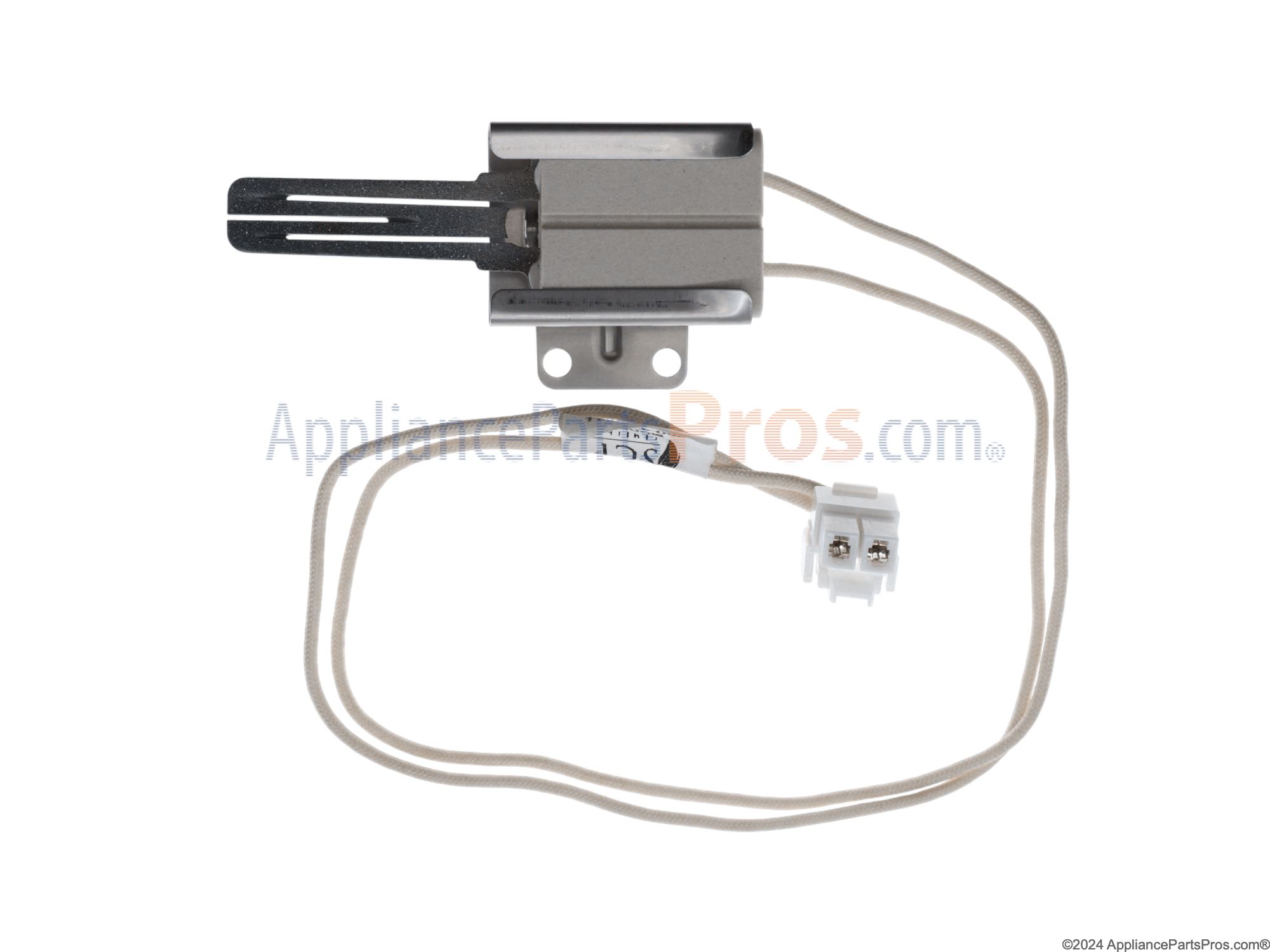

Joe H South Abington Township , PA February 05, 2021 Appliance: Model 790.74139310 Replacement of oven ignitor My Kenmore 790.74139310 gas range was taking over 30 minutes to reach 350F. It used to take a little less than 10 minutes. The problem was the ignitor for the lower gas burner. It would glow but not pass sufficient current to increase the gas flow to the lower burner. Once at temperature, there is of course loss of heat when loading the oven with room temperature food. This took too long to recover, so we did not have proper temperature for proper cooking for the first 30 to 40 minutes. Food was under cooked. So, we needed a new ignitor. The part diagram for our unit shows two ignitors: a top broiler igniter (#26, 316489403) and a lower oven ignitor beneath the floor of the oven (#19, 5304506545 that replaces 316489404). But the description for #26 says it is 14" long and the description for #19 is 6" long. I could see that my lower oven ignitor had leads 14" long since they have to reach a connector under the unit and many AppliancePartsPros customers wrote that the leads on part number 5304506545 were too short. So, I purchased the broiler ignitor and it appears to be a direct replacement for my lower ignitor. It looks identical. It fits. It works as we have used the oven quite successfully several times since completing the repair. I believe this to be an error in the original manufacture's parts diagram and listing: the ignitor part numbers are reversed. The video for repair link for part #19 was exactly what we did for our repair, but we of course used part #26 as described above. Read More... 27 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Socket Set
Ugo D Elizabeth , NJ September 02, 2014 Oven will not go on or will take long time and will go off gas I replaced the igniter and work good. Tks Read More... 150 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers, Screwdrivers
Larry S Portage , MI April 09, 2017 Delayed igniter on gas range New oven igniter. Igniter was under floor of oven . Removed floor and took out drawer on bottom. Would have been easier it I didn't have to lay down and reach to back left corner. Also 20 pounds and 20 years ago! Part fit perfect O.E.M. numbers matched. A little problem getting original part unplugged,but that was due to location. Took about 30 minutes. Read More... 15 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers, Screwdrivers
Robert B Middletown , NY October 30, 2016 My oven would not heat my ignitor wasn't working right I took the old ignitor out put in a new one started right up Read More... 7 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Henry R Richmond , VA December 30, 2018 Appliance: Model KENMORE 790 77483804 Kenmore gas oven would not light and heat Watched video, ordered new igniter. Received new part, took about 30 minutes to replace. Everything went smoothly no surprises. Problem fixed. A good day, made my wife happy. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Nut Drivers, Screwdrivers
