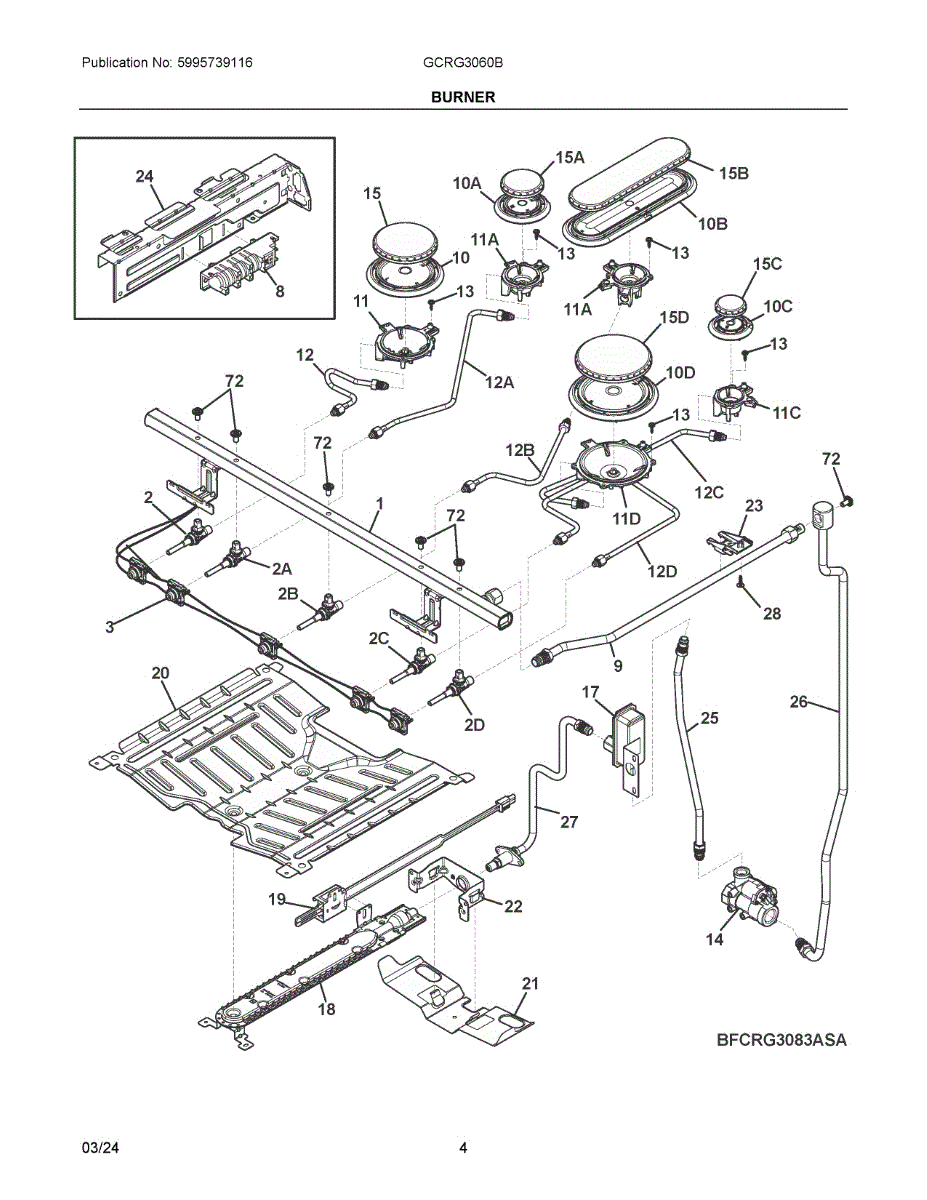

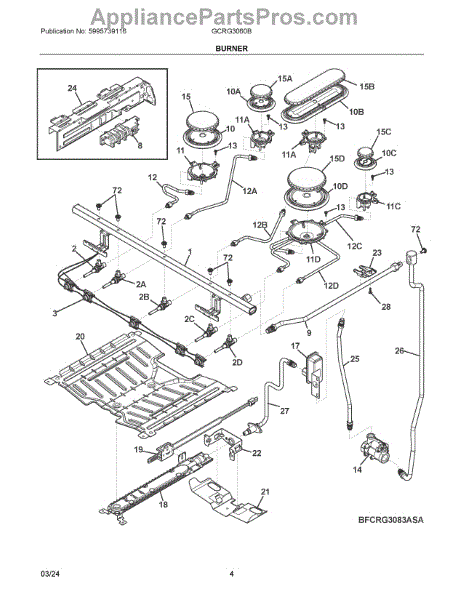

Parts for Electrolux GCRG3060BFA: 03 - Burner Parts

This is a surface burner valve for a gas range that controls the flow of gas to an individual cooktop burner. It connects to the burner knob and regulates gas output to adjust flame height. Replace this valve if a burner won't light, the flame cannot be adjusted, or you notice gas leaking near the control knob area.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


Burner won't turn on or light? This gas valve controls gas flow to surface burners on your range. Common fix for non-functioning burners. Moderate DIY.

Fix a burner that won't light or sparks without gas flow. This surface burner valve controls gas to one burner. Replace if knob turns but burner won't ignite.

This is a top burner gas valve that controls the flow of gas to a surface burner on a gas range. It connects to the burner control knob and regulates the flame from low to high settings. Replace this valve if a surface burner won't ignite, the flame is difficult to adjust, or you detect a gas smell even when the knob is in the off position.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Replace a cracked or corroded oval burner crown on your 10,000-BTU gas range burner. Restores even heating and reliable ignition. Verify fit with your model.

Surface burner crown that mounts on sealed gas burners to distribute gas through flame ports. Replace if worn, clogged, cracked, or missing.

This extra-large burner crown replaces the outer decorative cap on a cooktop surface burner, restoring proper flame distribution and cookware support for large pots and pans. Durable finish helps maintain even heating and appearance. What it does:

• Covers and protects the burner head while directing flames for even heating
• Supports large cookware on the cooktop surface
• Can reduce uneven or weak flames caused by a damaged or warped crown
• Restores proper fit and appearance for an extra-large surface burner

• One extra-large burner crown

• Ensure the cooktop is completely cool and gas or power is turned off before starting
• Remove and replace gently to avoid bending the burner head; no special tools usually required
• Follow the appliance manufacturer's instructions and safety guidelines

Medium burner crown for gas cooktops and ranges. Sits atop the burner base to shape and distribute flame. Replace if cracked, chipped, or damaged.

Small crown-style burner cap for gas cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or missing.

Oven won't heat or takes forever to preheat? This hot surface igniter lights the bake burner in gas ranges. Moderate DIY repair, about 30 minutes.

Oven won't heat or takes too long to preheat? This ignitor/orifice assembly restores proper gas flow and ignition for reliable oven heating.

Oven won't heat or takes forever to preheat? This hot surface igniter glows to ignite your gas range's bake burner, restoring consistent oven heating.

This ignitor/orifice assembly sits at the surface burner and provides both the ignition spark and metered gas flow for clean, reliable light-off. Replace it to restore quick starts and consistent flame quality. What it does:

• Provides the ignition spark at the burner via the electrode
• Meters gas through the fixed orifice to set proper flame size
• Wear, cracks, or blockage here can cause clicking with no flame or a burner that won't light without a match
• A damaged or restricted orifice may lead to small, uneven, or yellow flames

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the cooktop to cool; handle the ceramic electrode carefully to avoid damage
• Transfer any burner-specific hardware as needed and secure the spark lead connection
• After reassembly, restore gas and check all joints for leaks with a soapy-water solution; verify proper spark and flame

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, restoring proper water delivery and reducing the risk of leaks when the original tube is cracked or damaged. What it does:

• Channels water from the supply/valve to the dispenser or ice maker
• Replaces cracked, brittle, or kinked tubing that can cause leaks
• Helps restore normal dispenser or ice maker water flow when tubing is the issue
• Works as a direct-fit replacement when listed for your model

• Turn off the refrigerator and shut off the water supply before starting.
• Handle the tube gently; avoid sharp bends or kinks when routing.
• Use the original clamps or replace clips to secure connections and prevent leaks.
• After installation, restore water and power and check all connections for leaks.

This replacement drain tube routes defrost and condensation water from the freezer/evaporator area to the refrigerator drain pan to help prevent pooling and ice buildup. It restores proper water drainage when the original tube is cracked or clogged. What it does

• Channels defrost and condensation water away from the evaporator to the drain pan
• Helps prevent water pooling or leaks inside the fresh food or freezer compartments
• Reduces ice buildup around the evaporator by keeping the drain path clear
• Commonly replaced when the original tube is cracked, split, crushed, or clogged

• Inspect the drain trough and drain hole for debris before installing the new tube
• Seat both ends of the tube firmly; avoid sharp bends or kinks that can restrict flow
• Disconnect power before accessing internal refrigerator components to avoid injury

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Plastic cap cover for gas range burner assemblies. Replaces cracked, melted, or missing caps that expose fasteners. Restores finished appearance.

Snap-on burner cap for gas cooktops and ranges. Restores finished appearance and protects components. Replace if cracked, chipped, or missing.

Replacement burner cap for gas cooktops and ranges. Covers and protects the burner assembly. Needed when original cap is cracked, broken, or missing.

Replacement burner cap for gas cooktops and ranges. Covers the burner assembly for proper flame distribution. Needed when original is cracked or missing.

Replace a cracked, chipped, or missing burner cap on your gas range or cooktop. Restores a clean look and protects the burner assembly underneath.

This gas safety valve controls the flow of gas to the burners on a gas range. It works in conjunction with the ignition system to ensure gas is only released when the burner is actively being lit or is already ignited. Replace this valve if your burners fail to light, produce weak flames, or if you detect a gas smell when the burner is off.

Fix an oven that won't heat or takes too long to preheat. This igniter glows but may be too weak to open the gas valve. DIY repair in under an hour.

Replacement mounting bracket for gas ranges. Secures panels and components in place. Install when original is cracked, bent, broken, or missing.

This gas supply tube connects the pressure regulator to the safety valve on a gas range, delivering fuel to the oven burner assembly. It is a critical component in the gas delivery system that ensures proper flow between the regulator and the oven safety valve. Replace this tube if you detect a gas odor near the connection points, if the tube shows signs of corrosion or damage, or if the oven fails to ignite properly.

This replacement tube routes water to the ice maker or dispenser so your appliance can fill ice trays and dispense water reliably. It restores a sealed water path to prevent leaks and ensure proper filling. What it does

• Carries water from the supply or valve to the ice maker or dispenser
• Restores proper ice maker fill and water dispensing when a cracked or clogged tube is causing underfilling
• Helps stop leaks by replacing brittle, split, or deteriorated tubing
• Works with the appliance's existing fittings and clamps to maintain a sealed connection

• One replacement water tube

• Turn off the water supply and unplug the appliance before starting work
• Inspect fittings and clamps; reuse if undamaged or replace with equivalent clamps for a secure seal
• Confirm tube routing matches the original to avoid kinking or interference with moving parts

This is a gas burner tube that delivers gas to the bake burner in the bottom of the oven cavity. It connects the gas valve to the bake burner and ensures proper gas flow for even heating during baking. Replace this tube if you notice uneven oven heating, smell gas near the oven, or see visible damage or corrosion on the tube.

Replacement screw for gas range panels and components. Needed when original fastener is missing, stripped, or damaged to restore secure fit and alignment.

This screw is a factory replacement fastener used to secure panels, trim, or internal components so parts stay aligned and stable during normal use. It restores proper fit and reduces rattles from loose hardware. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Restores proper alignment when hardware is missing or worn
• Helps stop vibration or rattling caused by loose or missing fasteners
• Replaces stripped, damaged, or lost screws to allow correct reassembly

• Screw

• Disconnect power and water to the appliance before servicing when applicable
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Wear gloves to protect hands from sharp edges and steady small parts during installation

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Converts your gas range from natural gas to liquid propane fuel. Includes all orifices and instructions. Needed when switching fuel types or missing parts.
