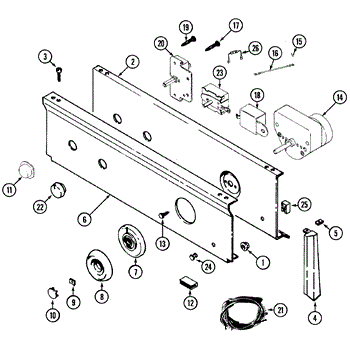

Parts for Maytag LDG7334AAE: 03 - Control Panel Parts

This part has been discontinued by the manufacturer and is no longer available.

A small hex nut used to secure components and fasteners on compatible Whirlpool appliances. Replaces a worn or missing nut to restore proper part retention and reduce noise or loose fittings. What it does:

• Secures panels, brackets, or components that use a matching bolt or stud
• Helps prevent rattling, vibration, or parts coming loose during operation
• Restores a proper threaded connection when the original nut is stripped or missing
• Works wherever the correct thread size and profile are required

• Unplug the appliance or disconnect power before starting any repair
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten securely but avoid overtightening, which can strip threads or crack parts
• Inspect mating bolts/studs and replace if damaged

This replacement cap fits over a range/oven control knob to restore finished appearance and protect the underlying shaft. It snaps into place and matches original white knobs for a cohesive control panel look. What it does:

• Covers and protects the knob stem from dirt and wear
• Restores the finished appearance of a chipped, faded, or missing knob cap
• Helps keep moisture and debris out of the control shaft area
• Fits the original knob assembly to maintain proper knob fit and function

• One white knob cap

• Snaps onto the front of the existing knob or knob collar; press firmly until it seats
• Inspect the knob and shaft for damage; replace the full knob assembly if the shaft is bent or worn
• Disconnect power to the appliance and follow appliance safety guidelines before servicing nearby components
• No tools usually required; use a soft cloth to avoid scratching finished surfaces during installation

Size: 8-32 x 1/4 inch.

This timer controls a specific timed function in the appliance so cycles start, advance, and finish when they should. Replacing a worn timer can restore consistent operation and help prevent incomplete or stalled cycles.

• Advances the appliance through its timed cycle stages
• Can help when cycles won't start, won't advance, or won't shut off
• Restores reliable, repeatable cycle timing

• Unplug the appliance or disconnect power before service
• Take a photo of wire positions and transfer one-by-one to the new timer
• Handle terminals carefully to avoid bending or loosening
• Reuse the original screws/bracket

This timer controls a specific timed function in the appliance so cycles start, advance, and finish when they should. Replacing a worn timer can restore consistent operation and help prevent incomplete or stalled cycles.

• Advances the appliance through its timed cycle stages
• Can help when cycles won't start, won't advance, or won't shut off
• Restores reliable, repeatable cycle timing

• Unplug the appliance or disconnect power before service
• Take a photo of wire positions and transfer one-by-one to the new timer
• Handle terminals carefully to avoid bending or loosening
• Reuse the original screws/bracket

Size: 8-32 x 1/4 inch.

Size: 8-32 x 1/4 inch.

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.
