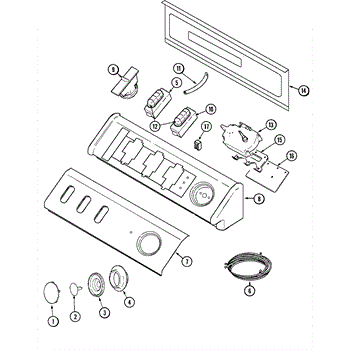

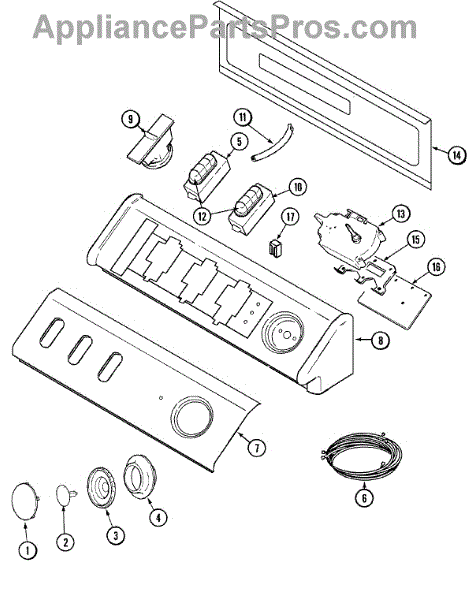

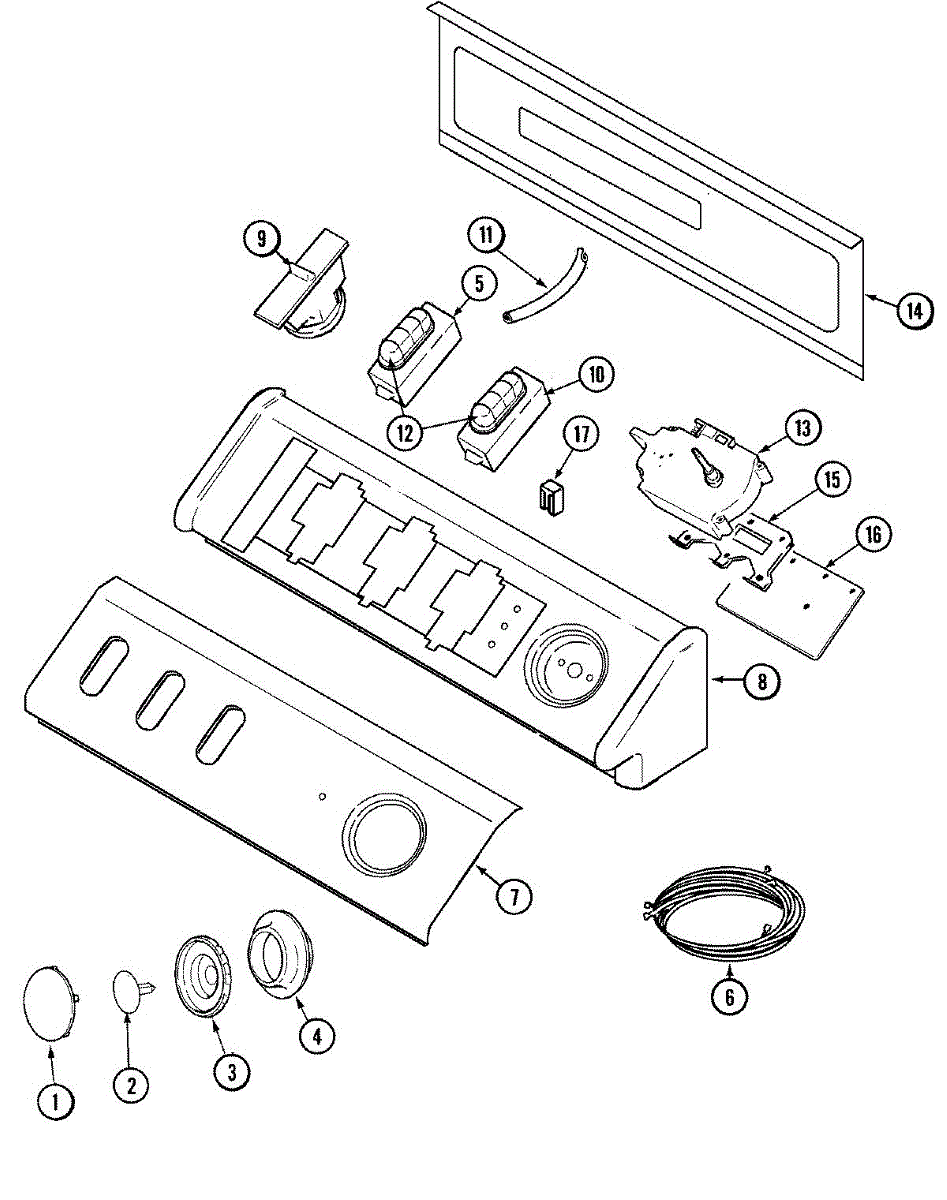

Parts for Maytag MAV7450AWQ: 03 - Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Color: Biscuit.

This small pin secures the timer knob to the control shaft and prevents it from slipping during operation. Located behind the timer knob on the control panel, replacement is necessary when the knob spins freely without changing settings or falls off the washer.

4 button temperature switch. Color: Biscuit.

Screw: 8-16 x 3/8 inch.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This replacement timer controls the sequence and duration of your washer's cycles, helping the machine advance smoothly through fill, wash, rinse, drain, and spin. Replacing a failing timer can restore consistent cycle progress and dependable operation.

• Controls timing and sequencing for fill, agitate, drain, and spin operations
• Switches power to the motor, pump, and water valves as each step advances
• Advances the cycle knob/dial through each phase
• Can also help with skipping rinse/spin or a dial that's hard to turn

What's included: 1 timer assembly Install notes:

• Disconnect power before servicing
• Remove the console/panel; pull off the knob and dial as needed to access the timer
• Transfer wires one at a time from the old timer to the new; mount and secure the timer
• Reassemble, restore power, and run a short cycle to verify operation

Replacement mounting screw for securing panels, brackets, and components in dryers, refrigerators, and washers. Needed when screws are lost or stripped.

The control board mounting bracket securely attaches the washer's electronic control board to the machine's frame or cabinet. Located behind the control panel, it provides stable positioning and protection for sensitive electronic components. Replace if the bracket is damaged, causing the control board to move or vibrate excessively during operation.

The main control board manages all washer operations including cycle selection, water levels, and motor functions. Replace if cycles don't start, the washer stops mid-cycle, error codes appear, or wash functions operate incorrectly.

To order indicator lens use WP22001948.

To order indicator light use WP903115.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
