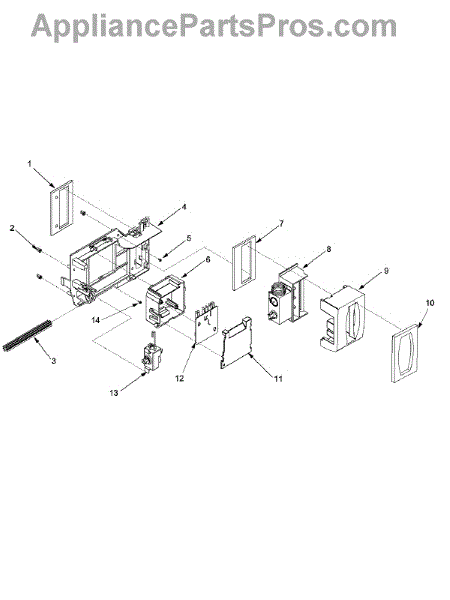

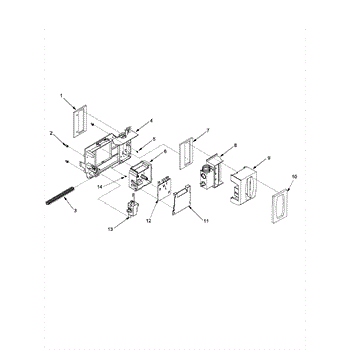

Parts for Amana ACD2234KRS: 03 - Controls Parts

This electronic control board manages the appliance's functions and user interface, restoring normal operation when the original board fails. It replaces a faulty control module to help re-enable cycles, settings, and display feedback. What it does:

• Receives input from the control panel and sensors to run timed cycles and selected options
• Controls power delivery, timers, and cycle sequencing for proper operation
• Can cause error codes, unresponsive buttons, or intermittent operation if damaged

• One electronic control board (main control board) as shown

• Disconnect power before removing or installing the control board to avoid shock or damage
• Handle the board carefully; avoid touching circuitry and use anti-static precautions when possible
• Verify the board mounting, wiring harness connections, and connectors seat fully during installation

This freezer temperature control lets you set and regulate the freezer's temperature, signaling the appliance to maintain consistent freezing conditions. Replacing a worn control restores accurate adjustment and helps protect your frozen foods. What it does:

• Sets the desired freezer temperature based on your dial/setting
• Regulates cooling or airflow to reach and maintain the selected temperature
• Helps keep freezer temperatures stable for reliable food storage and ice quality
• Common symptoms: freezer too warm or too cold, temperature swings, or a control that's stuck, erratic, or unresponsive

• 1 freezer temperature control

• Unplug the refrigerator before servicing
• Access the control housing; note wire connections and component orientation for reassembly
• Handle any sensing element or linkage carefully; avoid sharp bends or damage
• Reassemble, restore power, and verify temperature operation with an appliance thermometer

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This control harness connects the appliance control board to front-panel components, restoring proper signal and power routing for the console and associated controls. It replaces a damaged or faulty cable assembly to help recover responsive controls. What it does:

• Carries power and signal between the control board and user interface components
• Replaces frayed, burned, or broken wiring that causes intermittent or no console response
• Restores proper connections when buttons, lights, or display are unresponsive or operate erratically
• Prevents shorts and poor connections caused by damaged terminals or insulation

• Disconnect power (unplug or shut off breaker) before starting work
• Remove access panels per service instructions to reach the control and routing channels
• Note connector locations and routing; transfer clips and grommets to the new harness as needed
• Confirm secure, fully seated connectors and intact strain reliefs before restoring power
