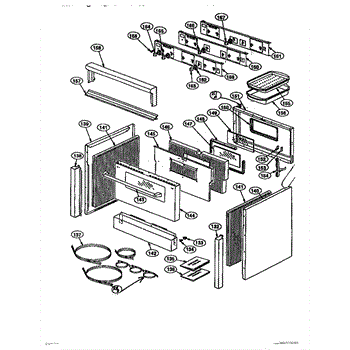

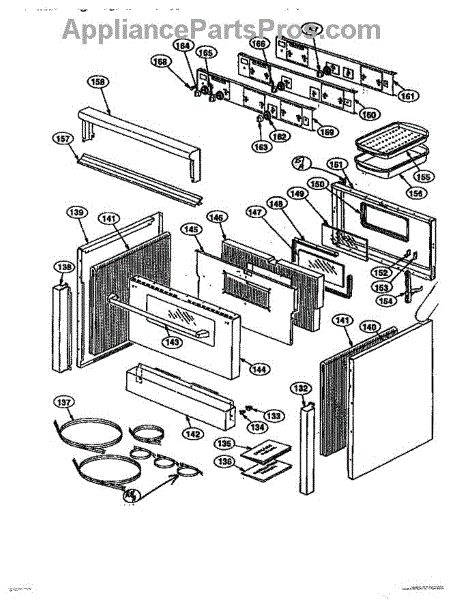

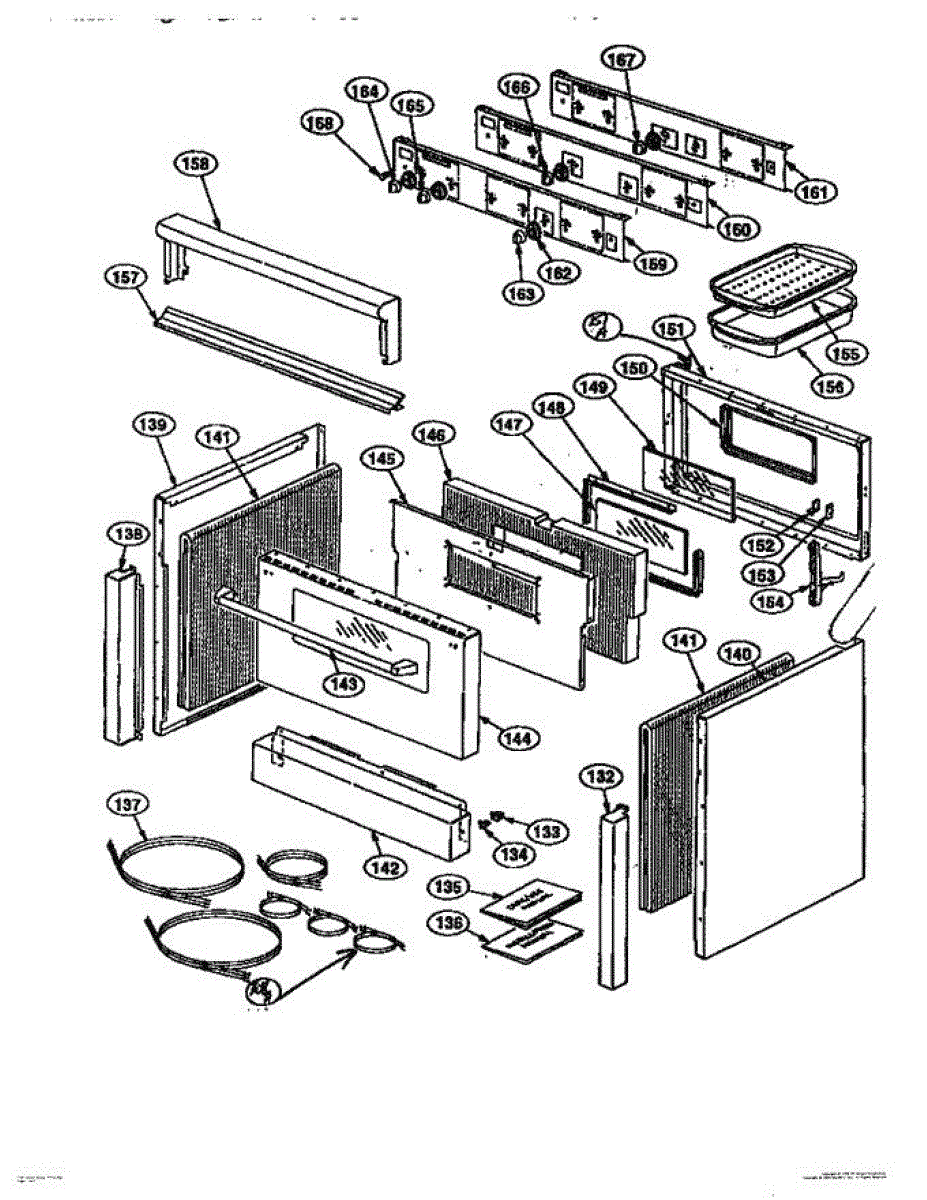

Parts for Thermador PRSG366: 03 - Door & Control Panel Parts

This right-side front frame piece replaces a damaged or worn exterior support on the appliance front. It restores proper panel alignment and helps maintain a flush fit and reliable door/panel operation. What it does

• Replaces the right front side frame that supports the appliance's front panel and trim
• Restores proper alignment to reduce gaps, rubbing or uneven panel fit
• Helps eliminate rattling or vibration caused by a broken or bent frame section
• Prevents further wear to adjoining panels and fastening points when intact

• Disconnect power to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) may be required; keep fasteners for reuse
• Handle edges carefully—metal parts can be sharp

This part has been discontinued and is no longer available

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical systems and may need replacement if wires are broken, melted, or corroded.

Sound dampening insulation for gas ranges. Installs inside cabinet to reduce noise and provide thermal protection. Replace if torn, compressed, or missing.

This is a structural frame that surrounds and supports the oven door, providing rigidity and a finished appearance. It holds the door glass and inner panel components securely in place. Replace this frame if it is bent, cracked, or damaged, which can cause the door to fit poorly, allow heat to escape, or create an uneven seal against the oven opening.

Replace your oven door glass spacer if it's cracked, broken, or missing. This spacer sits between glass panels in range oven doors for proper alignment.

Replaces the interior glass pane in your oven door assembly. Needed when the original inner glass is cracked, shattered, or broken. Restores visibility.

This replacement window frame secures and finishes the door glass, restoring the appliance door's fit and appearance. It keeps the glass held in place and helps maintain a proper seal and smooth operation. What it does:

• Holds and supports the inner/outer door glass panel
• Restores proper alignment and fit of the door assembly
• Helps prevent drafts, splashes, and visible gaps around the door glass
• Commonly replaced when cracked, warped, or cosmetically damaged

• One window frame

• Disconnect power and water before starting repairs
• Handle glass and frame edges carefully; wear cut-resistant gloves and eye protection
• Some door disassembly may be required; follow the OEM service instructions for your model

Left-side hinge bracket for range oven doors. Secures the door hinge to the frame. Replace if cracked, bent, or if door alignment is compromised.

Left-side hinge bracket for range oven doors. Secures the door hinge to the frame. Replace if cracked, bent, or if door alignment is compromised.

Decorative trim piece that frames the control panel on your gas range. Replace if the original is cracked, chipped, discolored, or missing for a clean finish.

This replacement control panel assembly restores the user interface and appearance of your appliance, letting you access buttons and the display used to set cooking functions. Designed to match the original form and fit. What it does:

• Houses the touch buttons/keys and display used to select oven/range functions.
• Sends user commands to the appliance control electronics so cycles start and change as intended.
• Restores readable status indicators and timers when the panel or overlay is cracked, faded, or non-responsive.
• Helps address symptoms such as unresponsive buttons, missing display characters, or a damaged front panel.

• Disconnect power to the appliance (unplug or shut off circuit breaker) before beginning work.
• Some panels attach behind the front trim and may require removal of the cooktop/door or control bezel; keep track of screws and fasteners.
• Handle the display and ribbon/connector cables carefully to avoid damage.

This pilot light lens covers and diffuses the control-panel indicator lamp. Replace a cracked, missing, or discolored lens to restore clear visibility of the light, protect the lamp opening, and keep the panel looking finished.

• Covers and diffuses the indicator lamp on the control panel
• Helps protect the lamp opening from debris and accidental contact
• Restores a clean, finished appearance to the panel
• Replace if the lens is cracked, missing, loose, or discolored
• Can help when the indicator is hard to see even when lit

• Disconnect power to the appliance before servicing and allow surfaces to cool
• Access the indicator opening from the front or rear (varies by design) and remove any retainer or clips holding the old lens
• Note orientation and transfer any existing retainer or gasket if present
• Seat the new lens fully, reassemble, and test the indicator light

This Tinnerman C nut is a spring-steel speed clip that secures sheet-metal panels and components using a mating screw. It provides a captive thread where a tapped hole or weld nut isn't practical, helping restore proper fit and stop rattles. What it does:

• Provides a captive, reusable threaded anchor for self-tapping or machine screws
• Secures trim, access panels and internal brackets to sheet-metal edges or panels
• Stops panel movement and vibration-related noise when the original clip is damaged or missing
• Works where a conventional nut or stud cannot be used due to limited access

• Disconnect power and unplug the appliance before accessing panels or fasteners
• Position the clip over the panel edge or hole, then press or slide until it snaps into place
• Align the mating screw and thread carefully to avoid cross-threading the clip
• Use hand tools or pliers for placement; do not over-torque the screw once installed

This is a 1/4-20 hex keps nut — a hex nut with an attached captive washer that helps secure panels, brackets, and fasteners. It provides a simple, vibration-resistant fastening solution for appliance assemblies. What it does

• Fastens components to machine frames, panels, and brackets using a 1/4-20 bolt or stud.
• Captive washer helps resist loosening from vibration and movement.
• Commonly used where a compact, pre-assembled nut-and-washer is needed for reliable retention.
• Replace when threads are stripped, washer is damaged, or parts wobble or rattle.

• One hex keps nut (1/4-20).

• Disconnect power and follow appliance safety procedures before working on hardware.
• Use the correct 1/4" socket or wrench to install; hold the mating bolt head as needed to tighten.
• Tighten securely but avoid over-tightening to prevent thread damage or distortion.
• Replace with the same nut type and size to maintain fit and vibration resistance.

This is a #10 x 1/2 inch pan-head Phillips sheet-metal screw used to fasten appliance panels and internal components. It replaces missing or worn screws to restore proper fit and reduce rattles or loose parts. What it does:

• Secures trim, access panels, brackets and other sheet-metal parts
• Keeps components aligned and prevents vibration-related noise
• Restores proper fastening when original screws are stripped, lost or corroded
• Works where a #10 x 1/2" pan-head Phillips sheet-metal screw is specified

• One #10 x 1/2" pan-head Phillips sheet-metal screw

• Disconnect power and water before servicing the appliance
• Use the correctly sized Phillips screwdriver to avoid stripping the head
• Start threads straight and tighten until snug—do not overtighten to avoid stripping or deforming sheet metal
• Keep small parts away from children and pets

90-degree elbow orifice holder for gas ranges and cooktops. Replace this gas line connector if cracked, broken, or causing improper gas flow alignment.

Package of 60 pyramid shaped briquettes

Mounting screw for securing range components and panels. Replace worn, stripped, or missing screws during repairs or maintenance to ensure proper assembly.

Foam adhesive tape seals gaps between range panels to reduce vibration and eliminate rattling. Replace when worn or loose. Verify fit with your model number.
