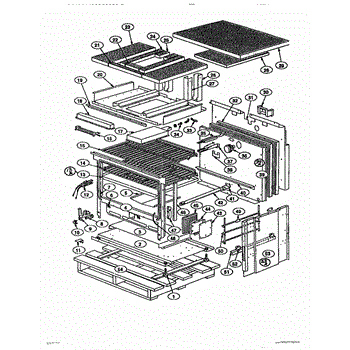

Parts for Thermador PRSG366: 01 - Main Body Parts

This orifice is the small, calibrated gas jet used in the oven burner to control natural gas flow for proper combustion and consistent heat. It replaces a worn or clogged orifice to help restore reliable oven ignition and baking performance. What it does:

• Directs and meters natural gas to the oven burner for correct flame size and stability
• Helps resolve symptoms like weak or uneven burners, weak ignition, or yellow/sooting flames when caused by a restricted orifice
• Used on the oven top/burner assembly where a #38 sized jet is specified
• Fits into the burner orifice holder and works with the existing regulator and valve

• Install only after shutting off the gas supply and following all safety procedures; check for leaks with a soapy water solution or approved leak detector
• Use correct tools and avoid damaging the orifice tip; thread carefully to prevent cross-threading
• Do not modify the orifice; replace with the exact specified size to maintain safe operation

The Oven Burner Igniter is an OEM part for Bosch ranges. This part ignites the gas burner to provide the necessary heat for cooking. The igniter works by heating up and creating a spark that ignites the gas, ensuring efficient and reliable operation of the oven.

Causes of a bad igniter can include regular wear and tear, damage from repeated heating cycles, or issues with the electrical connections.

Symptoms of a bad igniter include:

• The oven not heating up
• Difficulty igniting the burner
• The burner not staying lit
• Unusual clicking or sparking noises during ignition

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This metal angle flue guard protects and covers the flue opening on compatible gas ranges, helping direct exhaust and keeping nearby components shielded from heat. It restores the range's original flue trim and helps maintain safe operation. What it does:

• Replaces a bent, cracked or missing flue guard that no longer shields the flue opening
• Directs heat and combustion byproducts away from surrounding panels and components
• Helps reduce hot spots and contact with wiring or insulation near the flue area
• Restores proper fit and appearance of the cooktop/flue assembly

• One angle flue guard

• Turn off and disconnect power and gas supply before starting any repair
• Remove cooktop or access panels as required to reach the flue; retain original fasteners unless new ones are supplied
• Handle edges carefully; metal trim may be sharp

This oven/range insulation panel replaces the original cavity insulation to help control heat transfer and protect surrounding components. Designed to fit behind the oven cavity for improved thermal management and consistent performance. What it does:

• Replaces damaged or missing oven cavity insulation to restore proper heat containment
• Helps reduce heat exposure to control electronics and outer cabinetry
• Can reduce hot spots and uneven baking caused by compromised insulation
• Useful when insulation is torn, deteriorated, or missing after repairs

• High-level replacement; access requires removing oven range panels
• Use heat-resistant gloves and eye protection; insulation fibers can irritate skin and lungs
• Ensure power is disconnected at the breaker before starting work
• Verify proper placement and securement so insulation does not contact heating elements

This glow igniter heats electrically to light the appliance's gas burner. A weak or failed igniter can stop ignition or cause very long preheat times; replacing it restores reliable burner lighting and proper heating performance.

• Heats to a bright glow to ignite the gas burner
• Common fix for oven not heating or burner not lighting
• Often resolves long preheat times or intermittent ignition
• If the igniter doesn't glow—or glows but no flame appears—it may be weak or failed

• Disconnect power and shut off gas before servicing; allow the unit to cool completely
• Handle the ceramic element carefully; avoid touching the igniter surface and do not flex, drop, or strike it
• Transfer any reusable mounting hardware and wiring/connectors from the old part as needed
• Verify secure connections and proper positioning near the burner before restoring power and gas

This replacement insulation panel fits inside the range cavity to help limit heat transfer and protect the cabinet and internal components during normal cooking. It restores the appliance's thermal barrier for safer operation. What it does:

• Provides thermal insulation behind the oven/range cavity to help contain heat
• Helps reduce heat transfer to surrounding cabinet surfaces and nearby components
• Prevents direct exposure of wiring and parts to high temperatures
• Worn or damaged insulation can be linked to hot cabinets, heat-related component failure, or visible tearing/soiling

• Disconnect power (and gas if applicable) and allow the appliance to fully cool before starting
• Use basic hand tools; avoid compressing or folding the insulation when positioning
• Wear gloves and a dust mask if insulation is soiled or friable
• Reinstall any mounting clips or fasteners removed during disassembly; replace damaged hardware as needed

Support, hinge counter restores proper hinge support and door balance for a worn or damaged hinge assembly. This replacement helps the appliance door open and close smoothly and stay aligned for reliable everyday use. What it does:

• Provides structural support to the door hinge and helps counterbalance the door
• Stabilizes hinge movement to reduce sagging, binding, or uneven closing
• Helps the door latch and seal correctly by keeping the hinge alignment consistent
• Use when you notice door droop, difficulty latching, or irregular door motion

• Installation may require partial disassembly of the door or hinge assembly—refer to the OEM instructions for your model
• Disconnect power and turn off water supply before beginning any repair
• Inspect surrounding hinge components and fasteners; replace any damaged parts and test door operation after installation

This is a #10 x 1/2 inch pan-head Phillips sheet-metal screw used to fasten appliance panels and internal components. It replaces missing or worn screws to restore proper fit and reduce rattles or loose parts. What it does:

• Secures trim, access panels, brackets and other sheet-metal parts
• Keeps components aligned and prevents vibration-related noise
• Restores proper fastening when original screws are stripped, lost or corroded
• Works where a #10 x 1/2" pan-head Phillips sheet-metal screw is specified

• One #10 x 1/2" pan-head Phillips sheet-metal screw

• Disconnect power and water before servicing the appliance
• Use the correctly sized Phillips screwdriver to avoid stripping the head
• Start threads straight and tighten until snug—do not overtighten to avoid stripping or deforming sheet metal
• Keep small parts away from children and pets

This is a 1/4-20 hex keps nut — a hex nut with an attached captive washer that helps secure panels, brackets, and fasteners. It provides a simple, vibration-resistant fastening solution for appliance assemblies. What it does

• Fastens components to machine frames, panels, and brackets using a 1/4-20 bolt or stud.
• Captive washer helps resist loosening from vibration and movement.
• Commonly used where a compact, pre-assembled nut-and-washer is needed for reliable retention.
• Replace when threads are stripped, washer is damaged, or parts wobble or rattle.

• One hex keps nut (1/4-20).

• Disconnect power and follow appliance safety procedures before working on hardware.
• Use the correct 1/4" socket or wrench to install; hold the mating bolt head as needed to tighten.
• Tighten securely but avoid over-tightening to prevent thread damage or distortion.
• Replace with the same nut type and size to maintain fit and vibration resistance.

This Tinnerman C nut is a spring-steel speed clip that secures sheet-metal panels and components using a mating screw. It provides a captive thread where a tapped hole or weld nut isn't practical, helping restore proper fit and stop rattles. What it does:

• Provides a captive, reusable threaded anchor for self-tapping or machine screws
• Secures trim, access panels and internal brackets to sheet-metal edges or panels
• Stops panel movement and vibration-related noise when the original clip is damaged or missing
• Works where a conventional nut or stud cannot be used due to limited access

• Disconnect power and unplug the appliance before accessing panels or fasteners
• Position the clip over the panel edge or hole, then press or slide until it snaps into place
• Align the mating screw and thread carefully to avoid cross-threading the clip
• Use hand tools or pliers for placement; do not over-torque the screw once installed

This 1/2-inch foam adhesive tape cushions and seals appliance gaps to reduce vibration and prevent rubbing or rattling of panels. It's a simple, flexible trim that restores fit and quiets noisy or loose parts. What it does:

• Provides a soft, compressible barrier to reduce panel-to-panel contact and eliminate rattles
• Helps seal small gaps to keep out dust and reduce drafts around doors or trim
• Cushions components to damp vibration and protect finishes from wear
• Conforms to irregular surfaces for easy placement in tight spots

• Access the area with the appliance powered off and, if applicable, unplugged for safety
• Clean and dry the surface before applying for best adhesion
• Cut to fit with scissors or a utility knife and press firmly to set the adhesive
• Replace if the foam is compressed, torn, or no longer adheres

Package of 60 pyramid shaped briquettes
