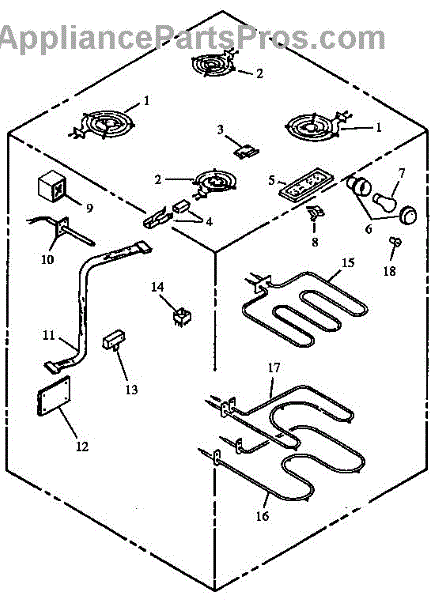

Parts for Amana FDU2482WW: 03 - Electrical Components Parts

Parts for Amana FDU2482WW: 03 - Electrical Components Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
4.9 (12)
By: Whirlpool
Part Number: WP3191454

Burner not heating or heating intermittently? This 8-inch surface element restores your cooktop. Easy DIY repair—just unplug the old, plug in the new.

More
$94.95

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP3191455

Replace a burner that won't heat or heats unevenly with this 6-inch surface element. Compatible with electric ranges and cooktops. DIY-friendly install.

More
$75.38

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Product photo
By: Whirlpool
Part Number: Y0065780
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
Best Seller
Product photo
4.9 (247)
By: Whirlpool
Part Number: 330031

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

More
$15.95

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Product photo
By: Whirlpool
Part Number: 0301293
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Product photo
4.9 (15)
By: Whirlpool
Part Number: WP74011278

Illuminates oven interior for monitoring cooking without opening the door. Replace if light fails, socket cracks, or bulbs blow frequently. Verify fit.

More
$79.26

IN STOCK
Ships Today Guaranteed
Add to Cart
7
Best Seller
Product photo
4.9 (376)
By: Whirlpool
Part Number: 8009

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

  • Dimming or flickering light
  • Complete lack of illumination inside the appliance
  • Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

More
$19.55

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: Y0300808
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
Product photo
By: Whirlpool
Part Number: Y0300807
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
By: Maytag
Part Number: 0042185
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
By: Whirlpool
Part Number: Y0061389
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPY0061732

Broiler not heating or browning evenly? This broil element restores intense overhead heat for proper broiling. Easy DIY replacement with basic tools.

More
$89.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
4.9 (16)
By: Whirlpool
Part Number: WP77001096

This lower bake element supplies the primary heat for Bake cycles, restoring consistent oven temperatures and even results. Replace a burned-out or damaged element to resolve no-heat on Bake, extended preheat times, and undercooked food.

  • Heats the oven cavity from the bottom during Bake cycles for proper cooking
  • Restores heat when the original element is burned out or broken
  • Common symptoms: no heat on Bake, very long preheat, uneven or undercooked results
  • Visible damage such as blistering, cracks, or breaks indicates replacement
What's included: 1 bake element Installation notes:
  • Disconnect power at the breaker before servicing
  • Remove oven racks, take out the element's mounting screws, and gently pull the element forward
  • Transfer the two wires one at a time; do not allow wires to slip behind the oven liner
  • Reinstall the element and screws, restore power, and test Bake
If the oven still won't heat after replacement, check the thermal fuse, wiring connections, and control/relay.

More
$36.95

IN STOCK
Ships Today Guaranteed
Add to Cart
17
By: Whirlpool
Part Number: Y0300539
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
Product photo
By: Whirlpool
Part Number: 866294
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
By: Whirlpool
Part Number: Y0306900
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
Best Seller
Product photo
4.8 (36)
By: Whirlpool
Part Number: WPW10245259

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

  • Burnt or scorched connections
  • Intermittent power loss to the range
  • Difficulty in the range heating up properly
  • Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Today Guaranteed
Add to Cart
