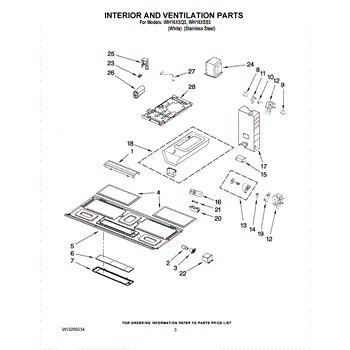

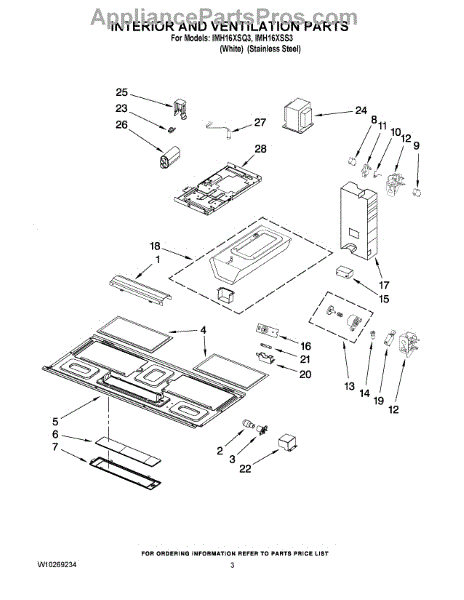

Parts for Whirlpool IMH16XSS3: 03 - Interior And Ventilation Parts

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

Traps grease and airborne particles during cooking to maintain cleanliness and proper ventilation. Replace when clogged or dirty. Verify fit by model.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Microwave displays 'close door' message or won't start? The door interlock switch is likely failed. Moderate DIY repair—replace all 3 switches together.

This small spring is part of the door interlock system in your microwave, providing tension to the safety switch mechanism that detects whether the door is properly closed. It ensures the microwave will only operate when the door is securely latched. Replace this spring if the microwave does not start, runs with the door open, or the door interlock switch is not engaging correctly.

The Interlock Cam Plate is an OEM part for Whirlpool microwaves. It is responsible for securing the microwave door to notify the unit that the door is closed. It works in conjunction with other components to ensure proper alignment and engagement of the door. This allows the microwave to function safely and efficiently.

Causes of a faulty interlock cam plate can include wear and tear over time, damage due to regular use or mishandling, or malfunctioning internal components. These factors can result in issues such as the door not closing properly, difficulty in starting or operating the microwave, or safety concerns.

Symptoms of a bad interlock cam plate may include:

• The door not closing or latching properly
• The microwave not starting or operating when the door is closed
• Flickering interior lights

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Top Interlock Support is an OEM part for Whirlpool microwave ovens. It is an essential safety component that helps ensure the microwave door is securely closed and locked before the microwave can operate.

Causes of a faulty Top Interlock Support include physical damage from impact or wear over time, as well as failure of the internal mechanisms that detect the door's position.

Symptoms of a bad Microwave Top Interlock Support include:

• Microwave does not start or operate when the door is closed
• Door appears closed but microwave will not run
• Microwave starts with the door open, posing a safety hazard
• Error codes related to the door interlock system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Microwave won't start or shows door open error? The bottom interlock support ensures proper door latching. Moderate DIY repair—access control panel.

This plastic actuator engages the door interlock switches when the microwave door is closed, ensuring the appliance only operates when the door is fully latched. It translates the motion of the door latch into the switch activation needed for safe operation. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch securely.

Replacement mounting screw secures exterior panels, trim, or internal components. Needed when original fastener is missing, stripped, or damaged.

Fix a microwave that runs but won't heat with this capacitor. Works with magnetron and diode to restore heating function. Moderate DIY repair.

This thermistor measures temperature changes inside your microwave to control cooking functions and safety systems. It sends temperature readings to the control board to adjust power levels and cooking times. Replace this part if your microwave doesn't heat properly, overheats, or sensor cooking features don't work correctly.

This door interlock switch is a safety micro switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a small, snap-action switch mounted near the door latch mechanism. Replace this switch if the microwave won't start, runs with the door open, or blows a fuse when the door is closed.

Microwave has no power or won't heat? A blown thermal fuse is often the cause. This safety part protects against overheating. DIY repair in 30 minutes.

Microwave overheating or won't start? This fixed-temperature thermostat acts as a safety switch to prevent thermal damage. Straightforward repair.

Capacitor mounting bracket for microwaves. Secures the capacitor inside the microwave cabinet. Replace if bent, broken, or missing to safely mount capacitor.

If your microwave runs but won't heat, a failed magnetron capacitor may be the cause. This high-voltage component stores energy for the magnetron.

Microwave won't heat but hums loudly? The diode regulates power to the magnetron. Test with multimeter—reads one direction only. Moderate DIY repair.
