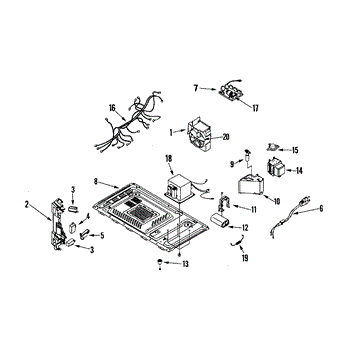

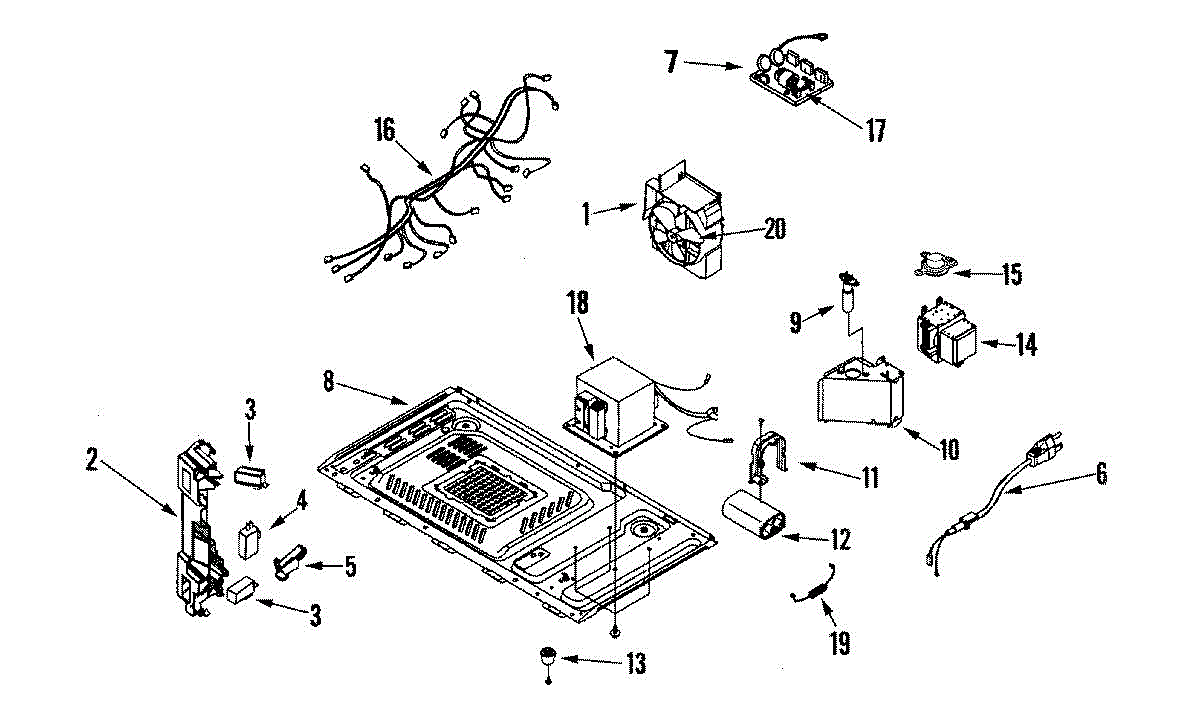

Parts for Maytag UMC5200BAS: 03 - Internal Controls / Latch Asy. / Base Parts

The Microwave Motor Cover Assembly is essential for maintaining the functionality and appearance of your Samsung microwave. This genuine OEM part ensures a perfect fit, seamlessly integrating with your appliance to provide reliable protection for the motor components. Crafted with durability in mind, the cover assembly guards against dust, debris, and accidental damage, helping to extend the lifespan of your microwave. Installing the Microwave Motor Cover Assembly is straightforward, allowing you to quickly restore your appliance to optimal working condition without the need for professional assistance. By choosing this genuine OEM part, you can be confident in the quality and compatibility with your Samsung microwave, ensuring consistent performance and peace of mind. Whether you are replacing a worn-out cover or upgrading your microwave, the Microwave Motor Cover Assembly offers a dependable solution that enhances the efficiency and safety of your kitchen appliance.

This door interlock microswitch detects when the microwave door is fully closed and allows the unit to run only under safe conditions. Replacing a worn switch restores reliable starting and consistent operation tied to the door latch.

• Monitors the door-latch position and completes the safety interlock circuit when the door is closed
• Helps prevent operation with the door open
• Common symptoms: microwave won't start or stops when the door is moved; requires pushing/jiggling the door to run
• Contributes to "runs but no heat" or light/fan behavior that changes as the door is opened/closed

• Unplug the microwave before service; internal high-voltage components can retain a dangerous charge
• Access the switch at the door-latch assembly; transfer wires one at a time to the new switch to maintain correct positions
• Ensure the actuator aligns with the door latch and that the switch clicks freely when opening/closing the door
• After reassembly, test with a microwave-safe cup of water to ensure proper operation

The Microwave Door Switch is an essential component for maintaining the safe and efficient operation of your microwave. This genuine OEM part ensures a perfect fit and reliable performance, specifically designed for Samsung microwave models. By accurately detecting when the microwave door is closed, it prevents the appliance from running when open, enhancing safety in your kitchen. The Microwave Door Switch is built to withstand regular use, offering durability and long-lasting functionality. Easy to install, this switch allows you to quickly restore your microwaveGÇÖs performance without the need for professional assistance. Choosing this genuine OEM part guarantees compatibility and peace of mind, as it meets SamsungGÇÖs exacting standards for quality and reliability. Whether youGÇÖre replacing a faulty switch or performing routine maintenance, the Microwave Door Switch provides a dependable solution to keep your microwave operating smoothly and safely.

This high-voltage magnetron capacitor stores and delivers the pulse of energy the microwave magnetron needs to generate heat. Replacing a failed unit restores proper high-voltage function so the oven can heat reliably. What it does:

• Stores and releases high-voltage energy to the magnetron during cooking cycles.
• Works with the oven's diode and transformer to produce microwave energy.
• A failed capacitor can cause no heat, weak heating, or a blown fuse/circuit interruption.
• Designed for the microwave high-voltage assembly; handle as a high-voltage component.

• Disconnect power and unplug the appliance before service.
• Discharge the capacitor with an insulated tool before touching terminals.
• Verify this part number matches your appliance before ordering.

This electronic main control board assembly manages the oven's timed functions and user commands so the appliance runs cycles correctly and responds to panel inputs. It replaces a failed control module to restore normal operation. What it does

• Receives and processes inputs from the front control panel and sensors to run selected cycles
• Controls timing, cycle selection, and various operational relays on the appliance
• Common symptoms: appliance won't start, unresponsive controls, incorrect or no cycles, or intermittent operation
• May resolve display errors or fault codes caused by a failed control board

• Disconnect power to the appliance before attempting service to avoid electric shock
• Handle the board carefully; avoid static discharge and contact with printed circuits
• Verify screw locations, connector seating, and grounding during reassembly

The Microwave Thermostat is a reliable component designed to regulate temperature in your microwave, ensuring optimal performance and safety. This genuine OEM part is specifically compatible with a wide range of Samsung microwave models, providing a secure and precise fit. By maintaining the correct temperature levels, the Microwave Thermostat helps prevent overheating and extends the lifespan of your appliance. Installing the THERM thermostat restores your microwaveGÇÖs functionality, allowing you to enjoy consistent heating results every time. Crafted from high-quality materials, this thermostat offers durability and dependable operation, giving you peace of mind with your repair. Whether your original thermostat is malfunctioning or needs replacement, the Microwave Thermostat is the perfect solution to maintain your microwaveGÇÖs efficiency and reliability. Trust in this genuine OEM part to keep your Samsung microwave running smoothly and effectively.

The Fuse is an OEM part for Whirlpool microwaves. It is a crucial safety component designed to protect the microwave from electrical surges and potential short circuits by breaking the circuit if the current flow exceeds safe levels.

Causes of a bad microwave fuse can include electrical surges, faulty wiring, or normal wear and tear over time. A blown fuse will render the microwave inoperable, as it cuts off the power supply to prevent further damage or hazards.

Symptoms of a bad microwave fuse include:

• The microwave not powering on
• The microwave stopping mid-operation
• No response from the control panel or keypad
• Sudden loss of power during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Microwave High Voltage Transformer is an essential component for maintaining the optimal performance of your microwave. This genuine OEM part is designed to deliver consistent high-voltage power, ensuring your appliance operates efficiently and safely. The TRANS H.V features robust construction that withstands regular use, providing reliable energy output for effective cooking and heating. It is compatible with a wide range of Samsung microwave models, guaranteeing a perfect fit and seamless integration. Installing this Microwave High Voltage Transformer restores your microwaveGÇÖs functionality, preventing frequent breakdowns and extending the lifespan of your appliance. This genuine OEM part offers a cost-effective solution for DIY repairs, allowing you to save time and money while ensuring quality performance. With easy installation, you can quickly replace a faulty transformer and get your microwave back to working order. Trust the Microwave High Voltage Transformer to deliver the dependable performance you expect from Samsung, enhancing your overall kitchen experience.

The Microwave High Voltage Diode is essential for maintaining the efficiency and performance of your microwave. This genuine OEM part is specifically engineered to replace faulty diodes, ensuring your appliance operates smoothly and reliably. Crafted with high-quality materials, the Microwave High Voltage Diode effectively converts and regulates electrical power, providing consistent heating and preventing power interruptions during use. Compatible with a wide range of Samsung microwave models, this diode guarantees a secure fit and easy installation, allowing you to restore your microwaveGÇÖs functionality quickly. By choosing this genuine OEM part, you benefit from enhanced durability and performance, reducing the need for frequent repairs and extending the lifespan of your microwave. Whether your microwave is experiencing uneven heating or electrical issues, the Microwave High Voltage Diode offers a dependable solution to get your appliance back to optimal working condition. Trust in this high-quality diode to deliver reliable performance and ensure a better cooking experience.

The Microwave Fan Blade is a crucial component designed to maintain proper airflow within your microwave. This genuine OEM part ensures seamless compatibility with a variety of Samsung microwave models, providing a reliable fit and easy installation. Crafted from high-quality materials, the fan blade offers durability and consistent performance, helping to reduce noise levels and promote efficient cooling during operation. Replacing a damaged or worn-out blade with this genuine OEM part restores your microwave's functionality, ensuring it operates smoothly and effectively. The Microwave Fan Blade enhances the overall performance of your appliance, preventing overheating and extending the lifespan of your microwave. Trust in this genuine OEM part to deliver the reliability and efficiency you expect from your Samsung microwave, making your kitchen experience more convenient and enjoyable.
