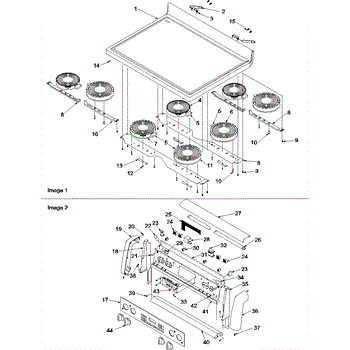

Parts for Amana ZRTC8500E / P1143671N E: 03 - Main Top And Backguard Parts

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even cooking performance and reliable heat for everyday pots and pans. What it does:

• Provides direct heat to cookware on the cooktop so burners reach cooking temperature
• Replaces a cracked, broken, or non-heating top burner element
• Fixes symptoms like a burner that stays cool, heats intermittently, or heats unevenly
• Works as a direct replacement for the listed part when the element is the failed component

• Disconnect power to the appliance at the breaker or unplug the range before starting any work
• Allow the cooktop and element to cool completely; handle carefully to avoid cuts from edges
• Reconnect wires to the matching terminals and secure the element in the appropriate retainer;

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The infinite switch regulates power to your range or cooktop's surface element, letting you set heat from low to high. Replace a failed switch to restore dependable burner control and consistent cooking performance.

• Regulates on/off power cycling to the surface element based on the knob setting
• Helps resolve no-heat, stuck-on-high, won't-turn-off, or erratic/uneven heat issues
• Often controls the surface "on" indicator light circuit; failure may affect the light
• Installs behind the control knob and connects to the existing wire harness

• Disconnect power at the breaker; allow the appliance to cool completely
• Remove the knob and access panel to reach the switch
• Photograph wiring and transfer wires to the same labeled terminals (commonly L1, L2, H1, H2, P)
• Reassemble, restore power, and test multiple heat settings; check the element and wiring

Size: 26 inches long. F18t8/cw/k26.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts
