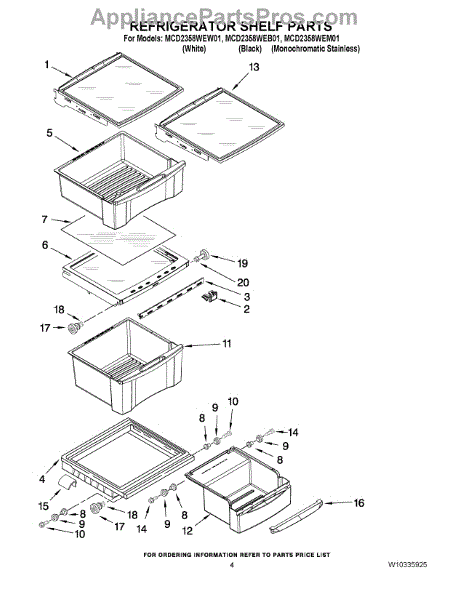

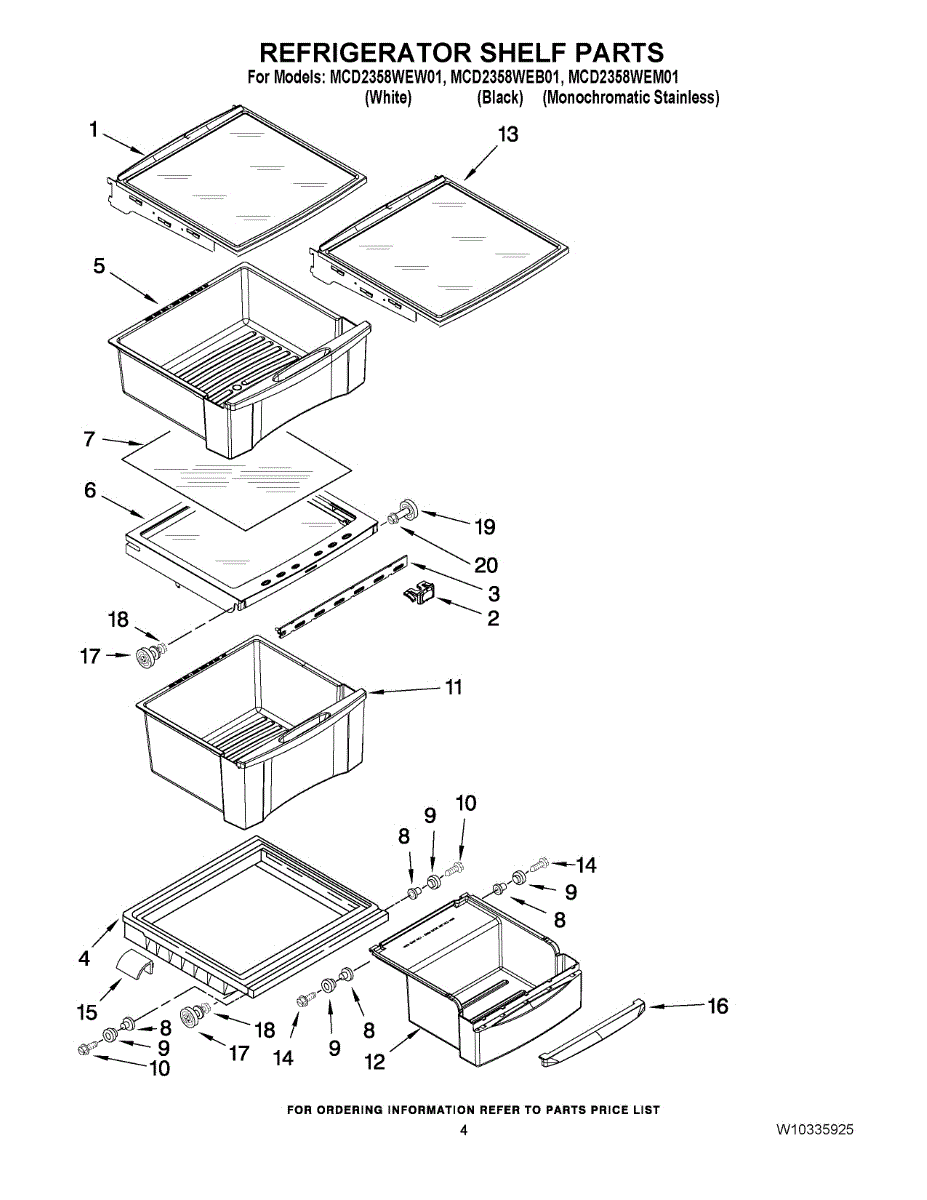

Parts for Maytag MCD2358WEB01: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This humidity control body is the fixed housing for a refrigerator crisper vent. It mounts to the crisper cover or drawer and provides the track for the slider so you can open/close the vent and help manage drawer moisture. What it does:

• Serves as the stationary housing for the crisper's humidity control vent
• Guides and secures the humidity control slider so it moves smoothly
• Helps regulate airflow into the crisper to influence moisture levels
• Common signs of failure: broken/missing housing, loose slider, vent won't adjust or stays stuck

• One humidity control body

• Disconnect power and remove the crisper/bin or cover for access
• Note slider orientation and position before removal
• Transfer the slider to the new body and secure the body to existing mounting points
• Avoid overtightening to prevent cracking; verify smooth slider travel before reassembly

This humidity control slide mounts in the crisper cover and moves the vent door to adjust airflow in the drawer. Replace a broken or missing slide to restore smooth adjustment and help manage moisture for better produce storage.

• Controls the crisper vent to increase or decrease humidity
• Provides the user-facing lever for Low/High humidity settings
• Helps reduce excess condensation, sogginess, or drying in the drawer
• Common symptoms: slide cracked or missing, hard to move, won't stay in position, humidity setting has no effect

• Unplug the refrigerator before servicing
• Remove the crisper drawer and lift off the cover/shelf as needed
• Release the old slide from its retainers (a small flat-blade screwdriver may help) and note the linkage to the vent
• Snap in the new slide, confirm smooth travel end to end, then reassemble

This is the meat pan cover assembly used above the deli/meat drawer. It provides a stable shelf surface and supports the drawer below, helping organize items and contain spills to keep the fresh food section cleaner.

• Supports the deli/meat drawer and serves as the shelf surface above it
• Helps contain minor spills and prevents drips to lower compartments
• Common signs it may need replacement: cracked or sagging cover, broken supports, or the deli drawer not sliding/aligning properly

• Unplug the refrigerator before starting
• Remove the deli/meat drawer and any items resting on the cover
• Lift out the damaged cover assembly and set the new assembly in place
• Ensure the cover is fully seated on its supports, then reinstall the drawer

The Snack Pan is an OEM replacement part for Whirlpool refrigerators. It is a storage bin located in the refrigerator section.

Causes of a bad pan can include cracks, scratches, or clouding of the clear plastic that reduces visibility and effectiveness.

Symptoms of a bad snack pan include:

• Difficulty sliding or accessing the pan due to sticking or binding
• Leaks due to cracks in the plastic forming
• Cloudy or scratched plastic reduces visibility of stored items

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Glass Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as the cover for the crisper drawers, providing a sturdy surface for storing items while helping to maintain the humidity levels inside the drawers to keep fruits and vegetables fresh. Measuring approximately 15 1/4" by 18", it ensures the drawer slides in and out smoothly.

Causes of a bad glass crisper cover can include accidental impacts that cause cracks or shattering, stress from heavy loads placed on top of the cover, or general wear and tear over time. Exposure to extreme temperatures or mishandling during cleaning can also lead to damage.

Symptoms of a bad glass crisper cover include:

• Cracks or breaks in the frame
• The cover not fitting securely over the crisper drawers
• Difficulty sliding the crisper drawers in and out
• Food items falling through due to gaps or damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Comes with two rollers and two eyelets

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Crisper Pan is an OEM part for Whirlpool refrigerators. It provides a dedicated space for storing fruits and vegetables, helping to maintain their freshness by regulating humidity levels within the drawer. The pan measures approximately 16 3/8" Wide X 15" Deep X 8 1/4" High.

You should replace this crisper pan if it becomes cracked or damaged. Causes of a bad crisper pan can include impact from dropping or overloading, wear and tear from frequent use, or damage from cleaning with harsh chemicals.

Symptoms of a bad crisper pan include:

• Cracks or holes in the pan
• Difficulty sliding the pan in and out of the refrigerator
• Food items not staying fresh as long

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Shelf is an OEM part for Whirlpool refrigerators. It provides storage space within the refrigerator, helping to organize and support various food items. The shelf is designed to fit securely and withstand the weight of stored items, ensuring optimal use of the refrigerator's interior space.

Causes of a bad shelf can include cracks or breaks from heavy items or impact, wear and tear over time, or warping due to temperature fluctuations.

Symptoms of a bad refrigerator shelf include:

• Visible cracks or breaks
• Difficulty in securing the shelf properly
• Items not staying level on the shelf
• Reduced storage capacity due to damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
