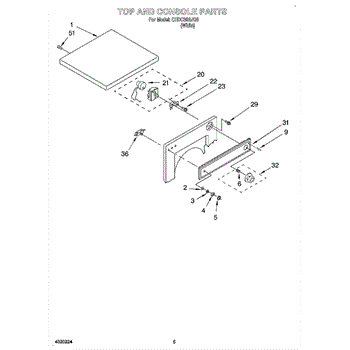

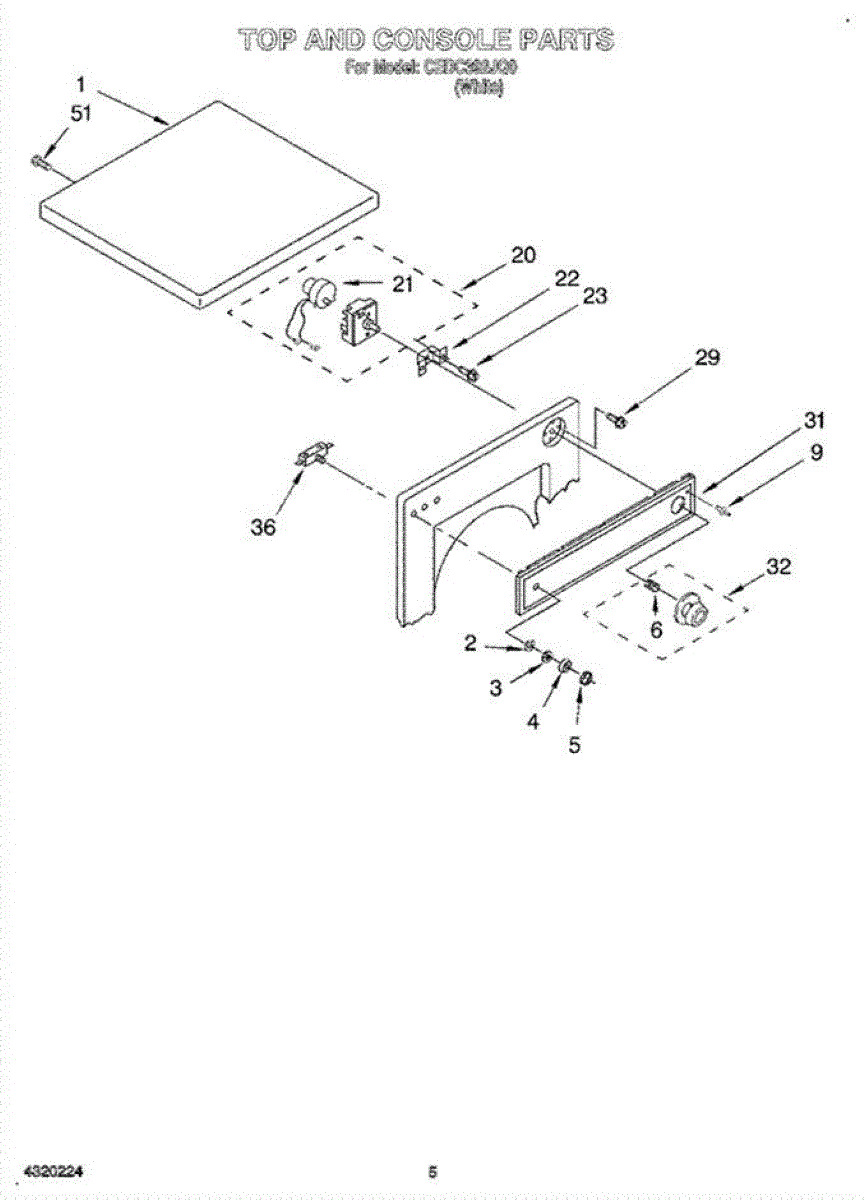

Parts for Whirlpool CEDC392JQ0: 03 - Section Parts

This white top panel replaces the outer cooktop surface on compatible ranges to restore a finished look and protect internal components from spills and debris. It's a direct-fit exterior part used when the original top is dented, cracked, or cosmetically worn. What it does:

• Covers and protects the range's internal components and burners from spills and heat exposure
• Restores a clean, finished appearance to the appliance exterior
• Helps maintain proper spacing and support for burner assemblies and controls
• Reduces risk of debris falling into the cabinet area below the cooktop

• One white top panel

• Requires basic disassembly of the cooktop; your model's service manual for step-by-step instructions
• Disconnect power (and gas supply if applicable) before beginning any repair to avoid shock or injury
• Use appropriate fasteners and gaskets from your model's parts list; do not force-fit parts

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

3-cycle timer that controls and advances an appliance's cycle sequencing and timing, restoring reliable operation. Replaces a worn or failed timer to address cycle-stopping, failure to advance, or unresponsive cycle controls. What it does:

• Advances and times the appliance's cycles so selections complete in the correct order.
• Replaces a defective timer that prevents the appliance from starting or advancing through cycles.
• Helps stop intermittent or stalled cycles caused by a worn or burned timer mechanism.
• Restores predictable automatic cycle progression when the original timer fails.

• Disconnect power to the appliance before starting any repair to avoid electric shock.
• Verify the part number and match the connector/wiring before removing the old timer.
• Take photos of wiring and panel placement to ensure correct reassembly.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Specs: 10-16 x 1/2 inch.
