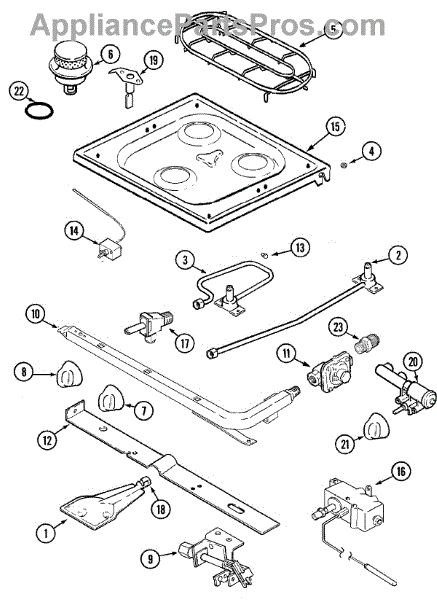

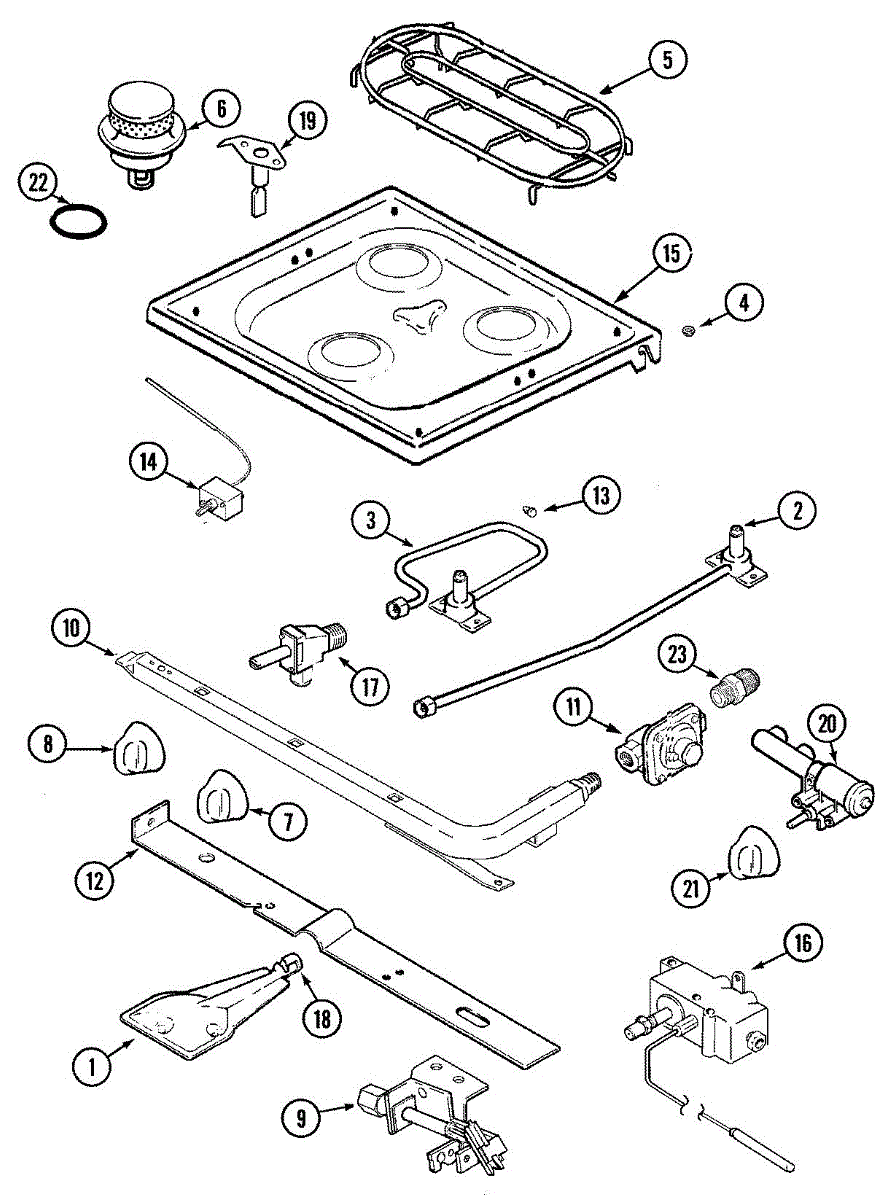

Parts for Magic Chef CLY2235BDB: 03 - Top & Gas Controls Parts

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This part has been discontinued and is no longer available.

This burner seal assembly replaces the cooktop burner gasket that sits between the burner and the cooktop surface to help keep spills and debris out of the burner opening and keep the burner seated correctly. What it does:

• Seals the gap around a surface burner to help prevent food and liquid from getting under the cooktop
• Helps the burner sit flush and stable on the cooktop surface
• Reduces the need to lift burners when cleaning by containing spills at the cooktop level
• Can help prevent ignition issues caused by debris buildup around the burner area

• Disconnect power and turn off the gas supply before starting any service
• Remove the burner head and clean the mounting area before installing the new seal to ensure a proper fit
• Press the seal into place around the burner opening so it sits flat and even; avoid stretching or twisting the gasket

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement igniter knob is the user control that engages the spark igniter and gas valve on compatible gas ranges, restoring safe, reliable burner ignition and user control when the original knob is damaged or worn. What it does:

• Replaces a worn, cracked, or stripped igniter/control knob so you can easily turn burners on and off.
• Engages the burner spark mechanism when rotated or pressed (depending on range design).
• Helps ensure proper alignment with the range valve splines for predictable control response.
• Addresses symptoms like a loose, slipping, or broken knob that won't turn the burner valve or activate ignition.

• One replacement knob

• Disconnect power to the appliance and shut off the gas supply before attempting service.
• Ensure splines on the shaft and inside the knob are clean and undamaged; align knob to the shaft and slide fully onto the splines.
• Do not force the knob onto a damaged shaft; forcing can break the knob or valve stem.
• If the burner does not ignite after installation, the igniter or valve assembly may need inspection—this knob only replaces the user control.

This part has been discontinued and is no longer available. This gasket is no longer needed.

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations
