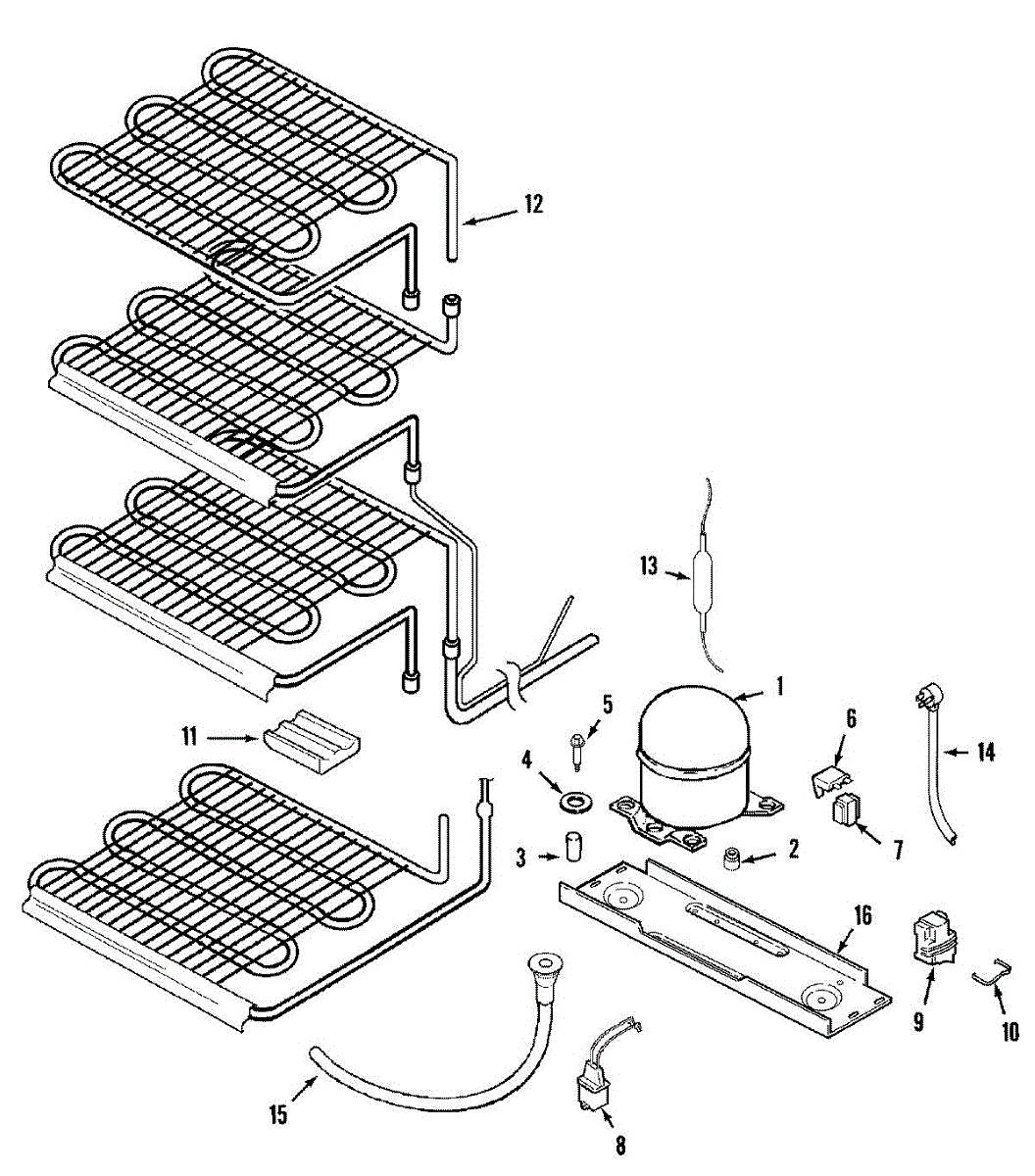

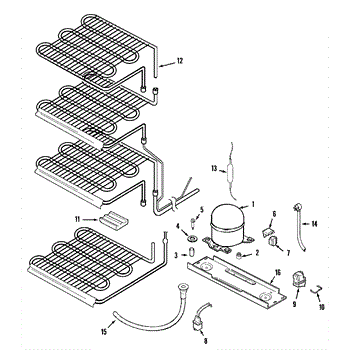

Parts for Maytag DF15J: 03 - Unit Compartment & System Parts

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

Start relay for refrigerator compressors that helps the compressor begin running at power-up. Replacing a failed relay can restore normal starting behavior and resolve common startup symptoms. What it does

• Provides the initial start current path to the compressor during startup.
• Allows the compressor to reach running speed, then drops out once the motor is running.
• Common symptoms a bad relay may cause: compressor clicking, humming without starting, intermittent cooling or frequent cycling.
• Installed as the electrical component used only on compatible compressor assemblies.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access the relay at the compressor; remove and replace the relay only after confirming diagnostics.
• Dispose of the old electrical part per local regulations.

This start relay controls power to the compressor's start winding so the refrigerator can start and run. Replacing a weak or burned relay restores dependable compressor start-up and can stop repeated clicking with warming temperatures.

• Energizes the compressor's start winding to provide initial torque, then disengages from the circuit
• Common failure symptoms: refrigerator not cooling or intermittently warm; compressor hums/clicks and won't start; relay rattles, smells burnt, or shows heat damage; overload trips
• Helps prevent hard-start conditions that stress the compressor
• The relay contacts are open/shorted, the compressor may fail to start and cycle off on overload

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment; remove the relay cover on the compressor. Note wire positions, pull the old relay straight off the compressor pins, transfer wires, and fully seat the new relay in the same orientation
• If equipped, safely discharge the run capacitor; inspect the overload, wiring, and terminals for heat damage and address as needed
• Reinstall the cover. If the compressor still won't start, further diagnosis of the start device, capacitor, or compressor is required

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power
