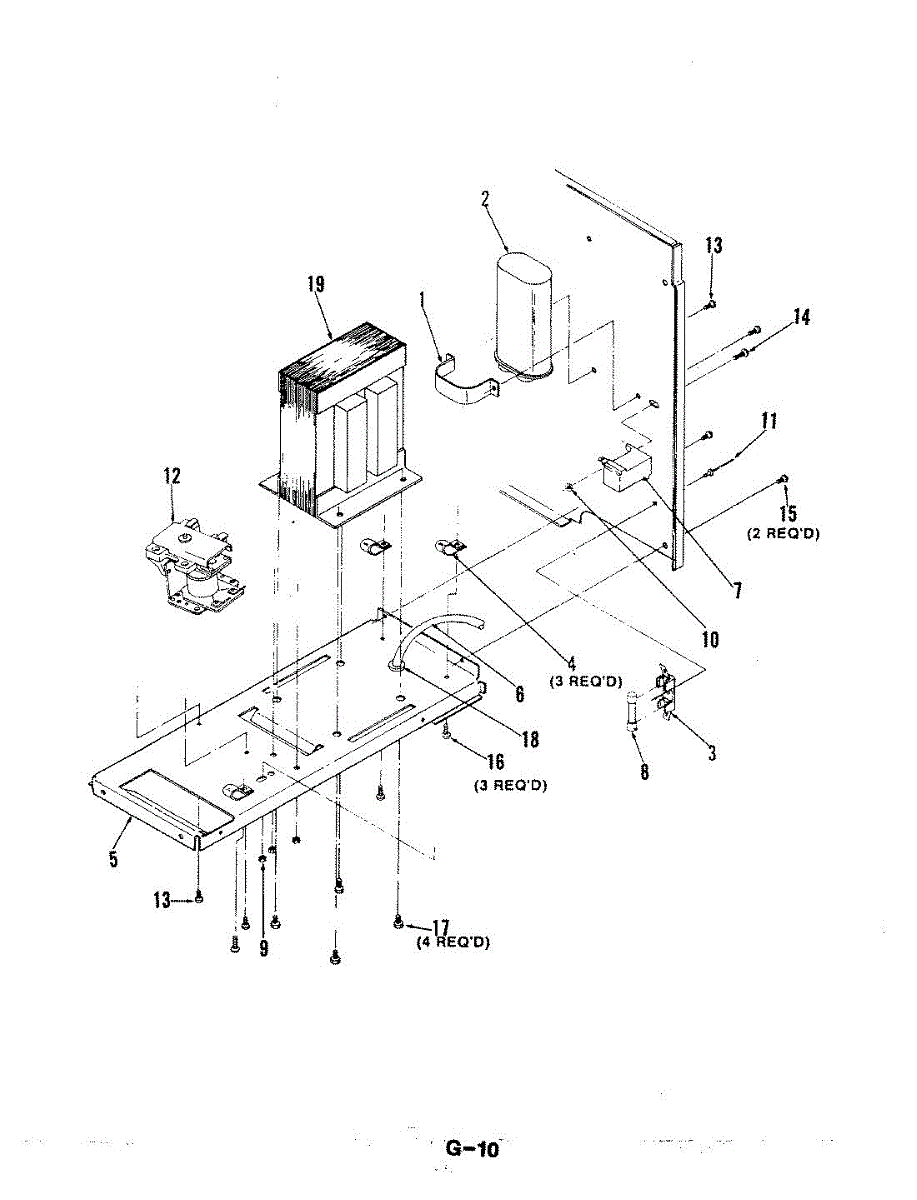

Parts for Magic Chef M40B-3-X9: 04 - Component Mounting Plate Parts

This replacement capacitor restores stable electrical timing and motor/run performance in compatible Whirlpool appliances. It helps the appliance start and run smoothly when the original capacitor has failed or weakened. What it does:

• Provides the stored charge needed for motor start/run circuits and control timing.
• Helps prevent motor hum, slow starts, or failure to start when the capacitor is failing.
• Reduces erratic cycling or intermittent operation caused by a weak capacitor.
• Supports reliable operation of blower, fan or small motor circuits that rely on a dedicated capacitor.

• Disconnect power to the appliance at the source before accessing electrical components.
• Capacitors can hold charge—discharge safely before touching terminals.
• Use insulated tools and avoid shorting terminals; verify correct fit and secure connections.

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

• Provides a secure mounting point and electrical connection for a fuse or inline connection
• Enables proper power flow between the control and high-voltage components
• Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
• Replaces a worn, cracked, or melted terminal block to restore safe connections

• Disconnect power to the appliance before starting any work
• Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

This 15 amp, 250 volt replacement fuse protects your appliance's electrical circuits by interrupting power when a fault or overload occurs. It restores safe operation once the underlying issue is fixed and the fuse is replaced. What it does:

• Acts as an overcurrent protection device for circuits rated up to 15 A and 250 V
• Prevents damage to wiring and components by opening the circuit during an overload or short
• Common symptom: appliance has no power or specific functions stop working after a sudden failure
• Replacing a blown fuse can resolve intermittent power loss or complete power failure tied to a single blown element

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only with a fuse of the same amperage and voltage rating to maintain safety and proper protection
• Use insulated tools and avoid touching live terminals; internal access may require disassembly, follow OEM service instructions
• If fuses blow repeatedly, stop using the appliance.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

Size: 8-32 x 1/2 inch.
