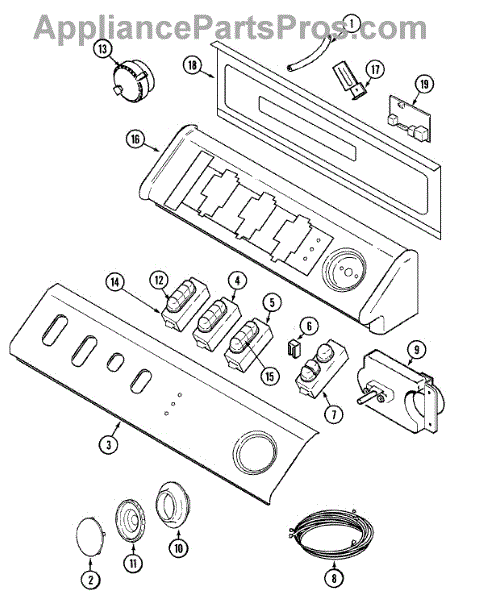

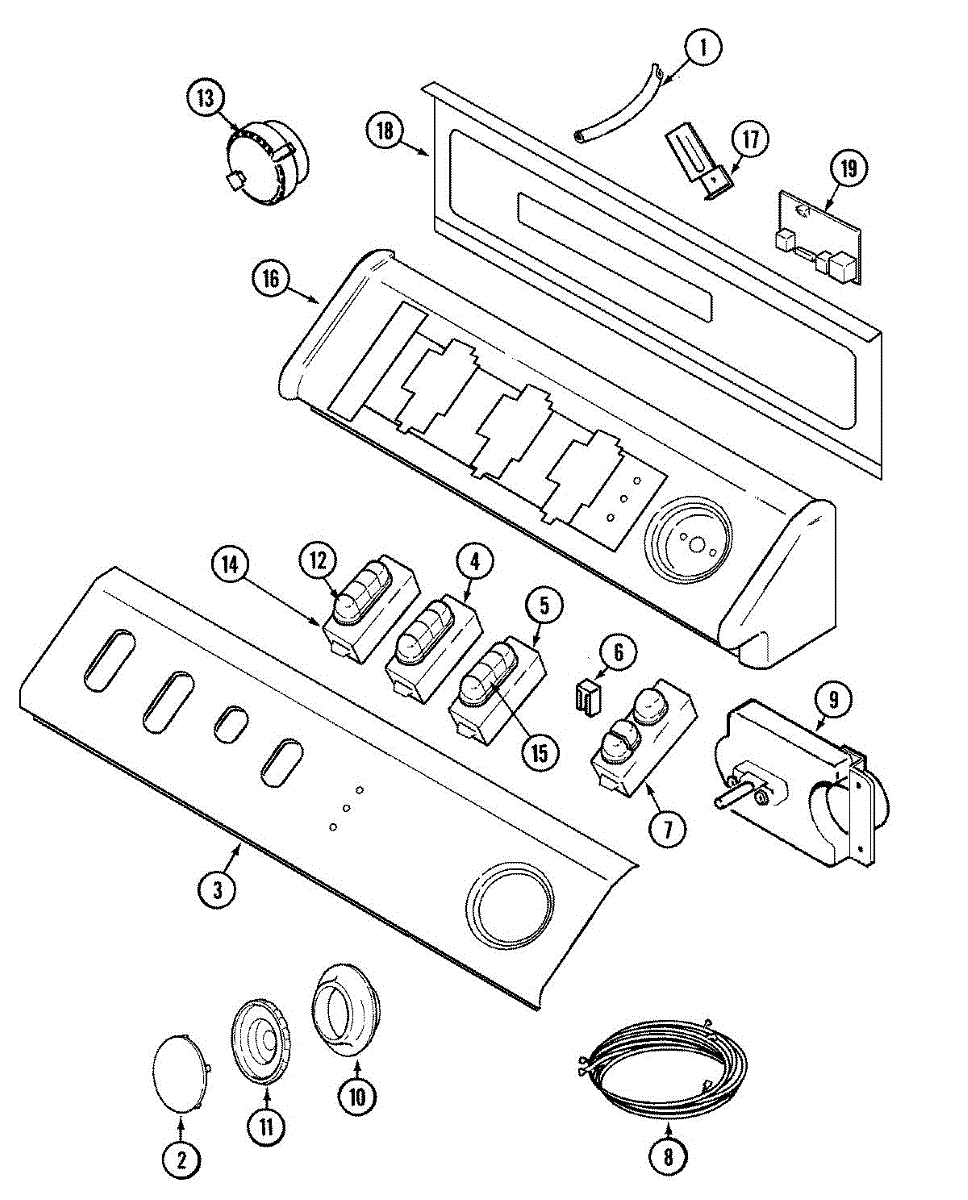

Parts for Maytag MAH5500AWW: 04 - Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Fix washer cycle control issues and water level problems with this airdome pressure hose. Connects water sensing system to prevent cycle errors.

The Timer Knob Insert is an OEM replacement part for Whirlpool dryers. This is a cap located on the timer knob on the control panel. Color: White. This is the timer knob cap only. For the complete assembly, you must also order the knob and skirt.

Causes of timer knob Insert failure can include cracked plastic from years of repeated turning motions. Wear on components also occurs due to extensive lifetime usage cycles.

Symptoms of a faulty timer knob insert include:

• Knob becomes loose, detached or inoperable for timings scrolling
• Cracks appear exposing internal timer parts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: White

To order indicator lens use WP22001948.

To order indicator light use WP903115.

Replacement mounting screw for securing panels, brackets, and components in dryers, refrigerators, and washers. Needed when screws are lost or stripped.

Washer not advancing through cycles or stopping mid-cycle? Replace the timer to restore automatic cycle progression. Easy DIY repair, takes less time than opening the panel.

The Timer Knob is an OEM replacement part for Whirlpool dryers. It allows users to set cycle durations with smooth, intuitive adjustment.

Symptoms of a faulty timer knob include:

• The timer knob does not turn or is difficult to turn.
• The timer knob is missing

Causes of a bad timer knob can include loose or stripped internal gears from an extended operation or impact damage during loading/unloading clothes.

Note: This is the center portion of the knob only. For the complete knob assembly, the cap and skirt must also be purchased.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Color: White.

Screw: 8-16 x 3/8 inch.

Replacement mounting screw for securing panels, brackets, and components in dryers, refrigerators, and washers. Needed when screws are lost or stripped.

Screw: 8-16 x 3/8 inch.

This is a Whirlpool washer control board. This is the main control board behind the user interface, not to be confused with the motor control board located within the body of the washer. This part controls the main functions of the washer and toggles between different cycles. Certain functions may become unavailable intermittently when the main control board loses function. The washer may also continue to spin, not following the regular timeline of the cycle.Start the repair by pulling the control knob from the front of the washer. Pull the washer out from the wall to access the rear panel. Remove the screws from the back panel, and push back on the control panel while sliding a flat head under the right corner to release the mounting clip. Repeat this on the left side, and the central console should pull free. Release the clips for the wire harness and remove the air hose from the control board. Remove the mounting screws and pull the control board from its protective console. Reverse this process to install the new component.This product is a genuine OEM part sourced directly from the manufacturer. This part is compatible with Whirlpool, Maytag, and JennAir appliances.

This part has been discontinued and is no longer available.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
