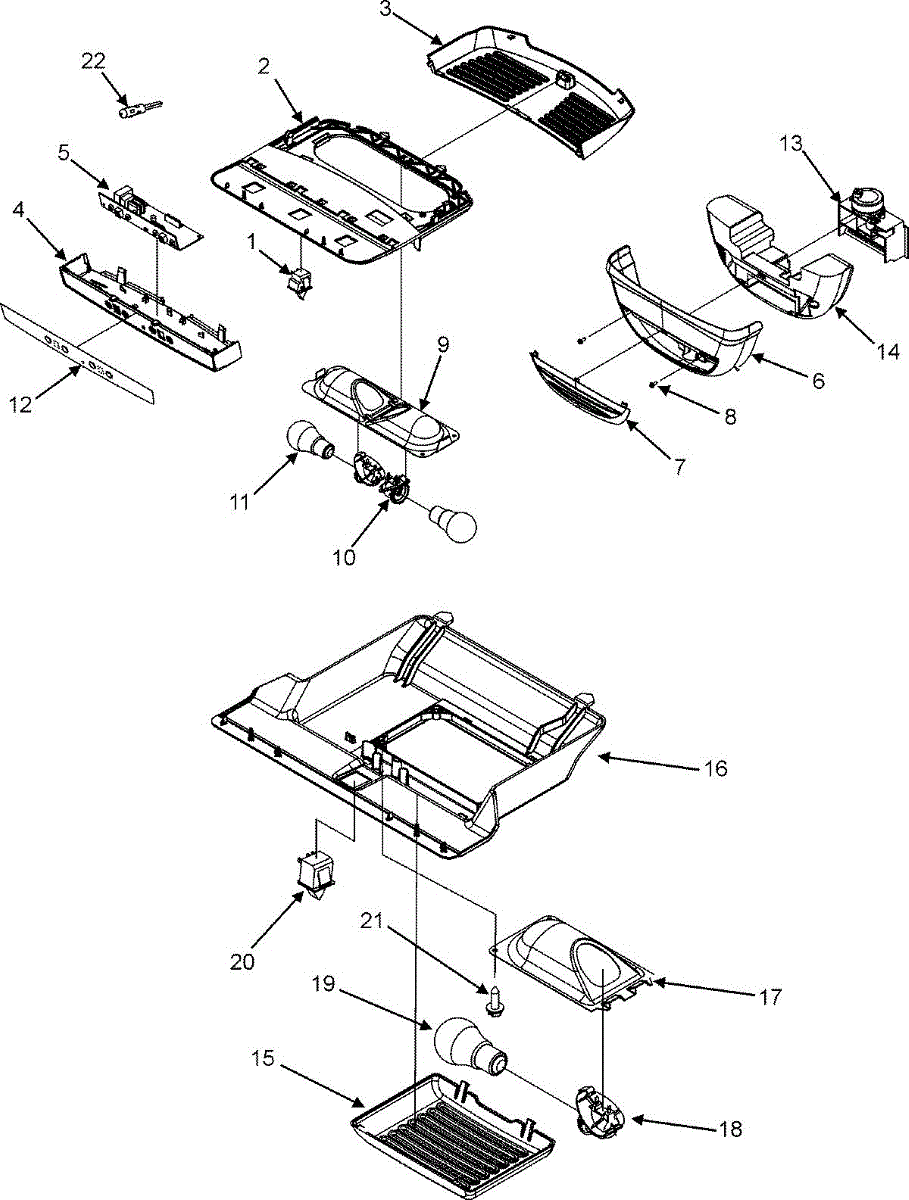

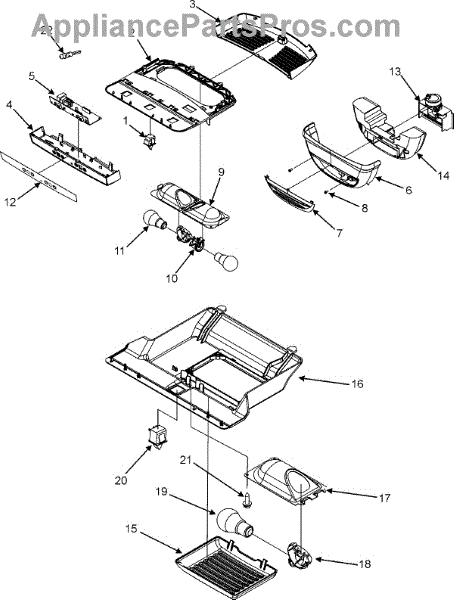

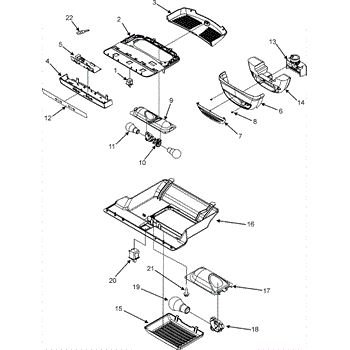

Parts for Maytag MBF2256HEB: 04 - Controls Parts

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement cover restores a finished look and protects underlying components on your appliance. Replacing a cracked or missing cover helps keep out debris and moisture while maintaining proper function and appearance. What it does:

• Shields internal parts from dust, splashes, and accidental contact
• Helps maintain intended airflow/water routing depending on location
• Secures the opening or mechanism for a snug, rattle-free fit
• Typical symptoms: cracked, warped, loose, or missing cover; exposed components; new rattling or vibration noises

• Disconnect power; shut off water supply before servicing
• Note orientation and any clips/gaskets before removal; transfer reusable hardware
• Reinstall with original screws/clips; do not overtighten to avoid cracking
• Restore power and test; check for proper fit and any leaks or vibration

This control module housing protects and secures the refrigerator's electronic control board, helping keep the board stable and shielded from damage and moisture. Replacing a damaged housing restores proper support and connector alignment for the control module. What it does:

• Provides a mounting enclosure and protective cover for the refrigerator control module
• Keeps wiring harnesses and connectors properly routed and secured
• Helps prevent moisture and debris from contacting the control board
• A damaged or cracked housing can lead to loose connections, intermittent operation, or control/display issues

• Disconnect power to the appliance before starting any repair
• Handle the control board and electronics with care; avoid static discharge
• Ensure all connectors are fully seated and routed the same way as the original housing
• Reuse factory mounting hardware unless replacement fasteners are specified

The Electronic Control Board is an OEM replacement part for Whirlpool refrigerators. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. After installation, the board will need to be programmed. An instruction sheet is included.

Causes of a bad Electronic Control Board can include electrical surges, which can damage components on the board, age-related wear and tear affecting its functionality, and exposure to moisture or extreme temperature fluctuations. These factors can lead to a malfunctioning fridge with erratic behaviors.

Symptoms of a bad Electronic Control Board include:

• The refrigerator not cooling properly
• Irregular defrost cycles leading to frost buildup or thawing issues
• Unresponsive controls or display issues
• The ice maker or water dispenser not working as expected

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Damper Control is an OEM part for Whirlpool refrigerators. It regulates the airflow between the freezer and refrigerator compartments, maintaining the appropriate temperatures in each section. This component ensures that cold air is distributed properly, contributing to the overall efficiency and performance of the refrigerator.

Common causes of a bad damper control can include wear and tear over time, electrical failures, or mechanical obstructions. A malfunctioning damper control can lead to temperature imbalances, affecting the preservation of food.

Symptoms of a bad damper control include:

• Inconsistent temperatures between the freezer and refrigerator
• Freezer overly cold while the refrigerator is too warm, or vice versa
• Frost buildup in the refrigerator compartment
• Unusual noises coming from the damper area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This insulation piece fits around the appliance's air damper to help seal and quiet the damper area, improving airflow control and reducing heat loss or cold air transfer. What it does:

• Cushions and insulates the damper area to reduce drafts and thermal transfer
• Helps minimize noise and vibration from the damper assembly
• Supports proper damper operation by maintaining an insulated enclosure
• Commonly replaced when insulation is torn, missing, or degraded

• Disconnect power to the appliance before servicing
• Handle insulation carefully to avoid tearing; replace with identical part
• Follow the appliance service manual for disassembly and reassembly steps

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

The Thermistor Kit is an OEM part for Whirlpool refrigerators and freezers. This component plays a role in monitoring and controlling the temperature within your appliance. A thermistor is a type of resistor whose resistance changes with temperature changes, allowing the refrigerator's control system to accurately maintain the desired cooling levels based on the readings it provides.

Causes of a bad thermistor can include wear and tear from constant use, exposure to extreme temperatures that can damage the component, or electrical issues such as short circuits.

Symptoms of a bad Thermistor Kit include:

• The refrigerator or freezer is too cold or not cold enough
• The appliance cycles on and off more frequently or for longer periods than normal
• Unexplained changes in temperature settings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wire harness assembly routes electrical power and signals between the appliance control and components so the unit operates reliably. It replaces damaged or worn wiring to restore proper electrical connections and reduce intermittent faults. What it does

• Delivers power and control signals between control board and components.
• Replaces frayed, burned, or disconnected wiring that can cause intermittent operation.
• Helps resolve failures where components do not receive power or controls are unresponsive.
• Prevents shorts and arcing when damaged insulation or connectors are present.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Photograph existing routing and connector positions to ensure correct reinstallation.
• Handle connectors carefully; do not force pins or terminals. Match connector shapes and colors.
• Inspect nearby wiring and terminals for heat or corrosion; replace if damaged.
