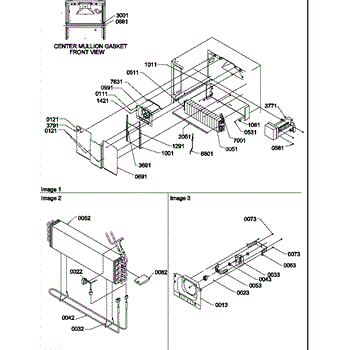

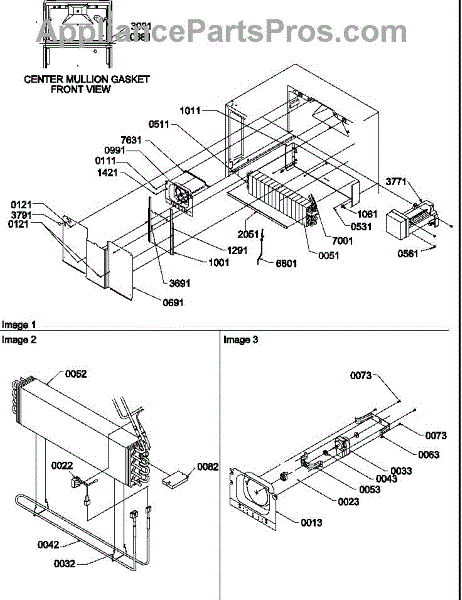

Parts for Amana TH21TE / P1301802W E: 04 - Evap And Fan Motor Assemblies Parts

This replacement fan blade mounts to the fan motor to move air through the system, restoring proper airflow and helping maintain stable temperatures while reducing unwanted noise and vibration. What it does:

• Attaches to the fan motor shaft to circulate air through the appliance
• Drives airflow across coils and compartments to support proper cooling
• Helps maintain even temperatures and stable performance
• Common symptoms include rattling/whirring noises, weak airflow, warm spots, or wobbling due to a cracked or warped blade

• Disconnect power before servicing
• Access the fan housing; remove any guards/shrouds as needed
• Transfer and reuse the existing retainer/clip or fastener and fully seat the blade on the motor shaft with correct orientation
• Spin by hand to ensure free clearance; reassemble and test for smooth, quiet operation

This evaporator fan motor drives the internal fan that circulates cold air across the evaporator coils and throughout the refrigerator. Replacing a weak or noisy motor restores proper airflow for more consistent temperatures and reliable cooling. What it does

• Moves air across the evaporator coils to remove heat from the cabinet
• Distributes chilled air to both compartments for even cooling
• Helps reduce warm spots and temperature swings
• Common symptoms: fan not running, weak airflow from vents, louder-than-normal or intermittent fan noise, warmer-than-usual refrigerator or freezer

• One evaporator fan motor

• Disconnect power to the appliance before servicing
• Access the motor behind the rear panel inside the freezer; remove shelves/drawers as needed
• Transfer the existing fan blade, grommets, and bracket if required; mount the new motor in the same orientation
• Reconnect the wire harness, ensure the blade spins freely, reassemble panels, restore power, and confirm the fan runs

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

Size: 8-32 x .312 inch.

Size: 8-32 x .312 inch.
