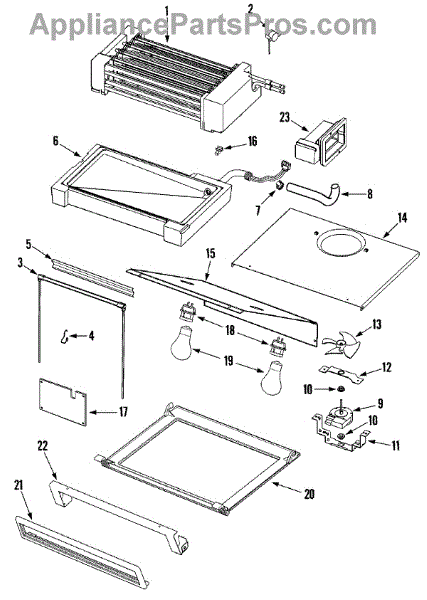

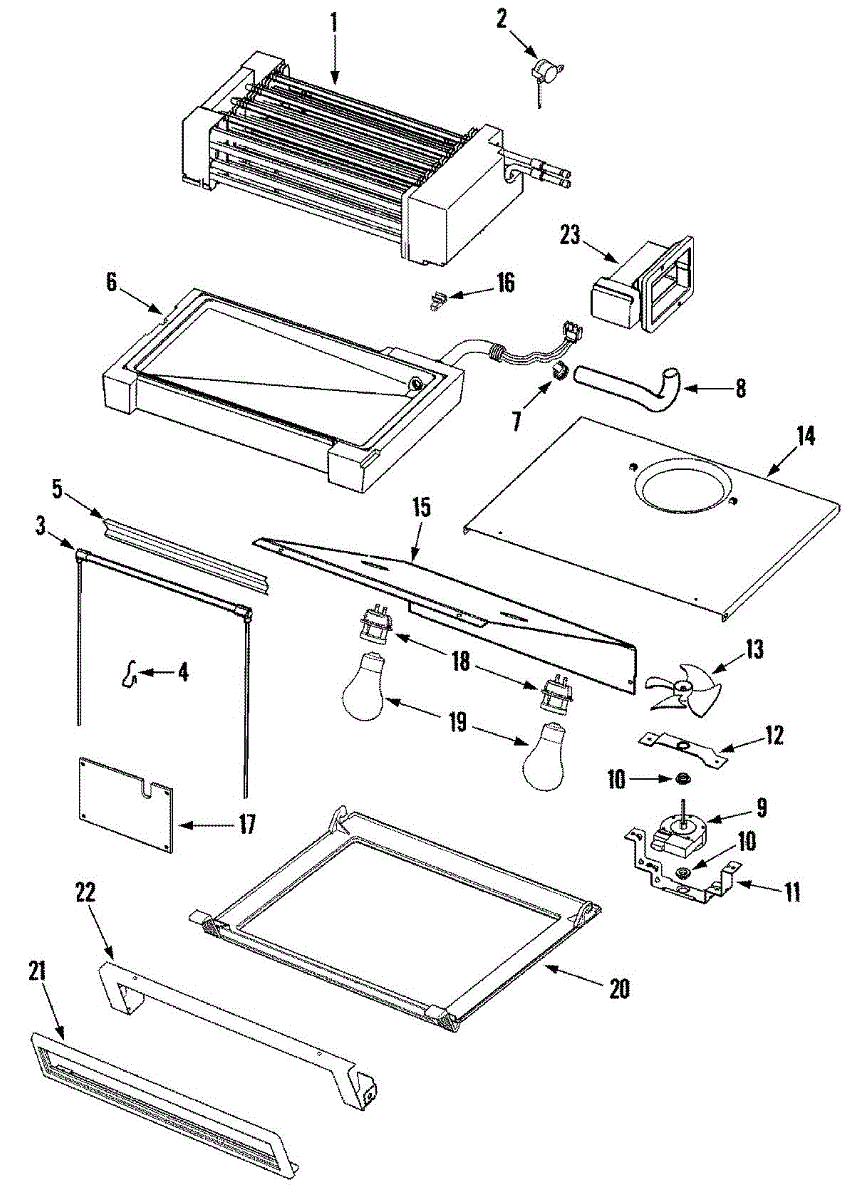

Parts for Jade RJRS4280A: 04 - Evaporator Compartment Parts

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

This defrost heater clip secures the refrigerator's defrost heater to the evaporator assembly, keeping the heater in proper position for reliable defrost cycles and helping prevent ice buildup that impairs cooling performance. What it does:

• Secures the defrost heater to the evaporator so the heater maintains proper contact and alignment.
• Helps ensure the heater can melt frost and ice during automatic defrost cycles.
• Small replacement part that restores proper heater placement without replacing the entire assembly.

• Disconnect power to the appliance before accessing the evaporator or heater to avoid shock or injury.
• Replacement typically requires removing interior panels or an evaporator cover; handle evaporator fins carefully—they are sharp.
• Verify the heater and wiring are undamaged and positioned correctly when installing the clip.

This product is a Whirlpool refrigerator drip pan for the evaporator. The drip pan is in place to catch water created from defrosting or condensation created by the evaporator. A damaged or clogged pan will lead to water leaking underneath the appliance. Substantial leaks from the refrigerator need to be inspected. Typically the two leading causes would be a worn-out seal from the door causing ice to melt or a clogged or damaged drip pan. Carefully examine the drip pan to ensure it's not just a clog, which is easily fixable. Any cracks or more significant damage means a replacement should be ordered.Access the drip pan by removing the bottom vent of the refrigerator. The drip pan is connected to the evaporator. Unplug the refrigerator to ensure safety before making any repairs. Carefully unscrew the nut that fastens the connecting line between the evaporator and the drip pan with a wrench. Remove the old drip pan and insert the new product. Make sure the nut is tight enough to make a good connection between the evaporator and the new component.This product is compatible with Whirlpool, Admiral, Magic Chef, Jenn-Air, and KitchenAid appliances. This is a genuine OEM product sourced directly from the original manufacturer.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

Size: 8-32 x .312 inch.

This evaporator fan blade mounts on the freezer fan motor to move air across the evaporator coils and circulate cold air through the cabinet, helping maintain proper temperatures when the original blade is cracked, warped, or missing.

• Circulates air over the evaporator coils for efficient heat removal and even cooling
• Helps restore airflow between freezer and fresh food sections
• Addresses symptoms such as weak/no airflow from vents, rising temperatures, or rattling/scraping noises from the freezer area
• Replaces a damaged blade that wobbles or rubs the shroud

• Disconnect power; remove freezer shelves/bins and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; avoid prying on or bending the shaft
• Match the orientation of the original and press the new blade onto the shaft until fully seated with clearance to the shroud
• Spin by hand to ensure free movement; reassemble panels and restore power

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

This replacement screw secures the damper assembly in the appliance, keeping the vent/damper properly mounted so airflow and venting work as intended. Use it to replace a missing, stripped, or corroded fastening screw. What it does:

• Fastens the damper assembly to the appliance frame or vent bracket
• Keeps the damper aligned so it opens and closes normally for proper airflow
• Can stop symptoms like a loose or rattling damper, intermittent venting, or a damper that falls out of position
• Simple, direct replacement for a damaged or missing damper screw

• Disconnect power to the appliance before starting any repairs.
• Handle the damper and linkage gently to avoid bending or misalignment.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• If other fasteners appear corroded or damaged, inspect and replace them as needed.
