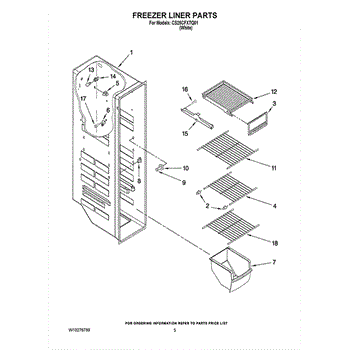

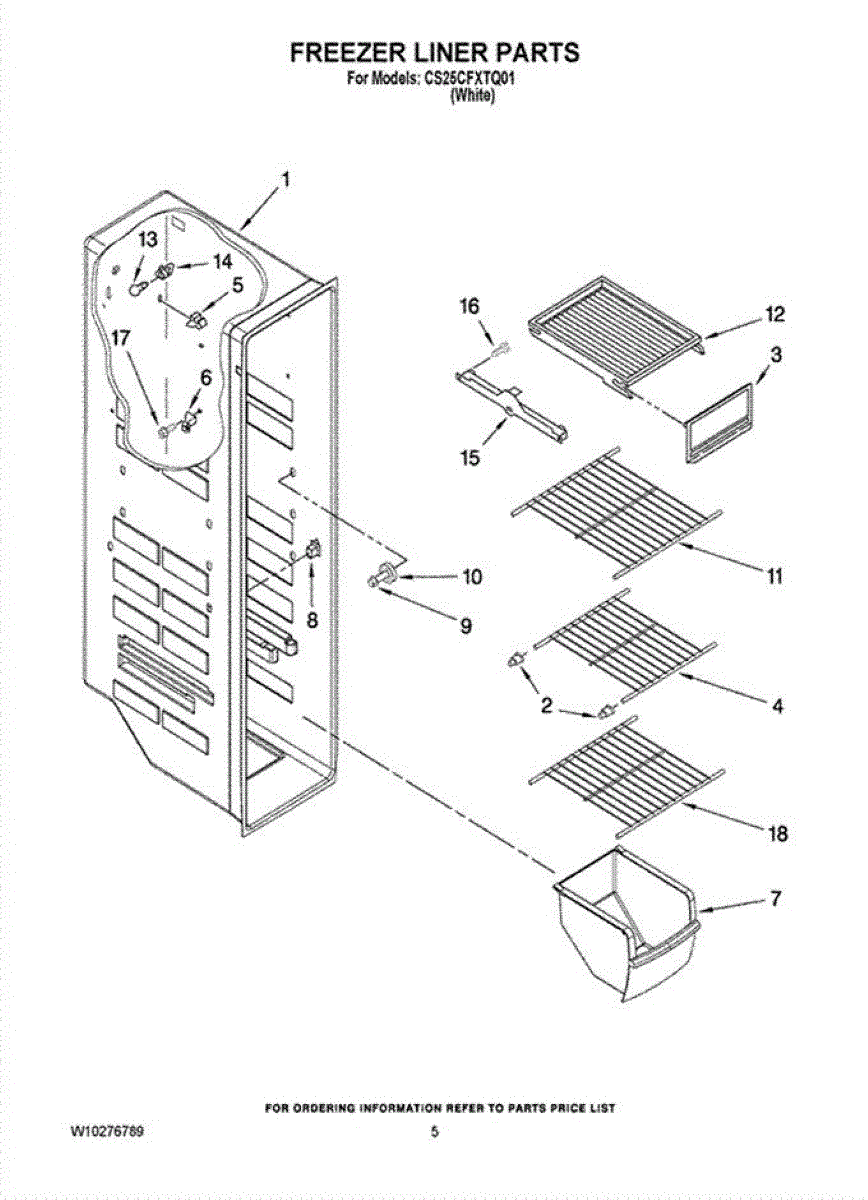

Parts for Whirlpool CS25CFXTQ01: 04 - Freezer Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This freezer shelf mounting cup fits into the liner opening to support the ribbed freezer shelf post, keeping the shelf level and secure. Replace cracked or missing cups to restore proper shelf support and prevent sagging.

• Supports the ribbed freezer shelf post and anchors it in the liner
• Helps keep the shelf level and properly positioned
• Replaces cracked, worn, or missing cups
• Common symptoms: shelf tilts, won't stay in place, rattles, or falls

• Unplug the refrigerator before starting
• Remove the freezer shelf; carefully pry the old cup straight out of the liner opening to avoid damage
• Press the new cup fully into the opening until flush; reinstall the shelf post into the cup
• Verify the shelf is seated and level before loading items

This ice compartment door closes off the ice storage area inside the freezer, helping contain cold air and keep ice clean. Replace a cracked or warped door to restore a proper seal and easy access to the bin.

• Covers the ice compartment opening to help maintain temperature around the ice bin
• Hinged panel provides convenient access to the ice container
• Helps minimize frost and moisture at the compartment opening
• Common signs it's needed: cracked/missing door, broken hinge tabs, won't stay closed, frost buildup, or ice clumping near the opening

• Disconnect power to the refrigerator before servicing
• Remove screws, pins, or clips securing the old door; note hinge orientation
• Transfer any reusable hinge pins, latches, or trim from the original if required
• Install and align the new door; confirm smooth operation and a tight closure

This freezer wire shelf restores sturdy, ventilated storage in the freezer compartment. Replace a bent, rusted, or missing shelf to regain safe support and organize frozen items at the correct height.

• Provides level support and organization for frozen foods
• Open-wire construction allows air to circulate around stored items
• Helps maximize usable space by maintaining an extra storage level
• Replace if the shelf is bent, coating is chipped/rusting, welds are broken, or the shelf is missing

• For safety, disconnect power before servicing
• Remove or relocate contents to access the shelf position
• Slide the old shelf out of the side rails; align and insert the new shelf into the same rail slots
• Wear gloves to protect hands from sharp edges

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

This replacement freezer bin restores secure, usable storage inside the freezer compartment. Replace a cracked, warped, or missing bin to keep frozen foods contained and organized, and to help prevent items from tipping or falling during normal door or drawer movement. What it does:

• Replaces a damaged or missing bin in the freezer compartment
• Mounts in the original location to hold and organize frozen items
• Helps keep contents contained when the door/drawer opens and closes
• Common symptoms: cracked plastic, broken tabs, bin sags or won't stay seated

• 1 freezer bin

• Disconnect power to the refrigerator before servicing
• Remove contents; lift/slide the old bin out of its mounts
• Align the new bin with the tabs/rails and push/slide until fully seated
• Verify a secure fit before reloading; avoid overloading the bin

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening

The Wire Shelf is an OEM part for Whirlpool refrigerators. This shelf provides additional storage space within the refrigerator, allowing for organized and accessible placement of various food items.

Causes of a bad wire shelf can include frequent heavy loading, accidental impacts, or general wear and tear over time.

Symptoms of a bad wire shelf include:

• Bent or warped wires
• Coating peeling off the wires
• Difficulty fitting the shelf securely into place
• Reduced storage capacity due to instability

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This track is the replacement rack guide that supports and guides a dishwasher or oven rack so it slides smoothly in and out. It restores proper rack alignment and prevents the rack from sticking or tipping. What it does:

• Provides a smooth sliding surface for a rack to roll or glide along
• Restores proper rack alignment to prevent tipping and rubbing
• Replaces worn, cracked, or broken guides that cause sticking or noisy operation
• Compatible with factory mounting points to maintain original movement

• Disconnect power and water (if applicable) before servicing the appliance
• Remove the affected rack and any retaining clips or screws to replace the track
• Tighten fasteners securely and test rack movement after installation

This track is the replacement support rail that guides and stabilizes a sliding component so it moves smoothly and stays aligned. Replacing a worn track restores proper slide action and reduces binding or scraping. What it does:

• Guides a drawer, rack or assembly along a straight path to prevent tipping or catching
• Keeps the sliding component aligned for smooth opening and closing
• Reduces noise and wear caused by a worn or damaged rail
• Common symptom: drawer or rack sticks, drops, or moves unevenly when operated

• Disconnect power (or unplug appliance) before starting repairs to reduce shock risk
• Keep track of all screws, clips and any retained fasteners during removal
• Use basic hand tools; support the sliding component while removing/installing the track
