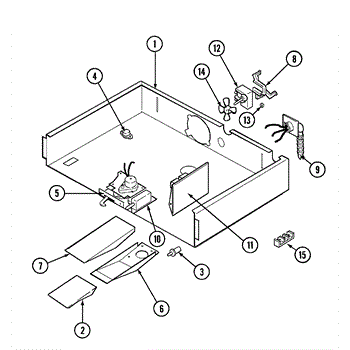

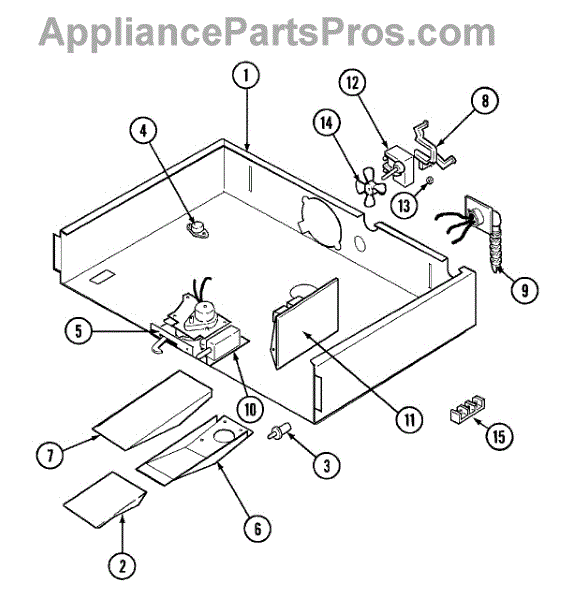

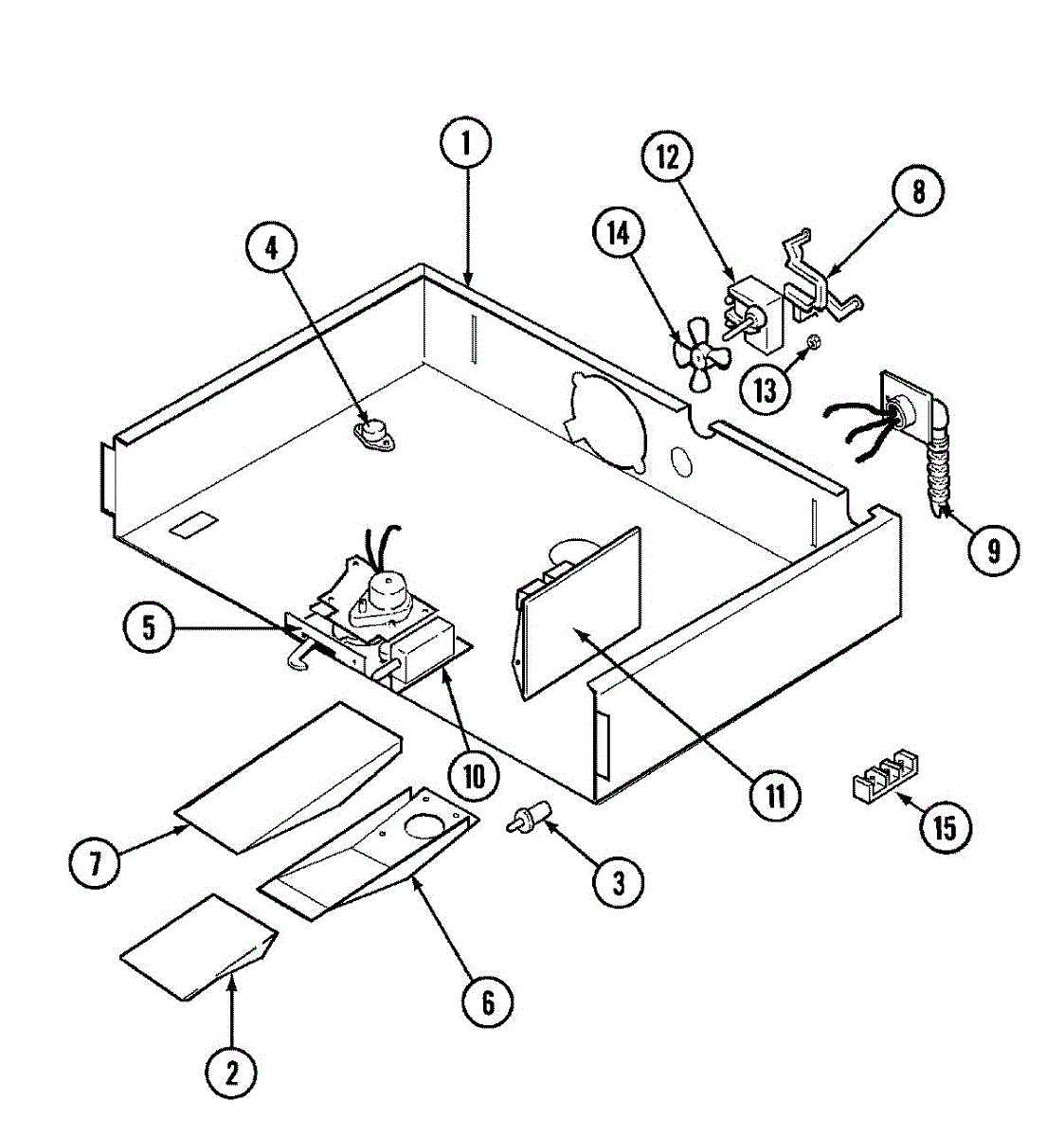

Parts for Maytag MEW6530BCB: 04 - Internal Controls (Bcb / Bcw) Parts

A hi-limit safety switch that stops heating when temperatures get too high, protecting the appliance from overheating and helping prevent damage. Designed to replace a failed thermal cutoff to restore safe temperature control. What it does:

• Opens the heating circuit when internal temperature exceeds the safe limit to prevent overheating
• Commonly replaces a failed or intermittently opening thermal limit control
• Helps stop burners or heating elements from running unchecked when a thermostat fails
• Addresses symptoms like no heat, intermittent heating, or safety trip shutdowns

• Disconnect power before accessing heating components and wiring
• Verify the part matches the appliance diagram and wiring orientation before installation
• If corrosion or other damage is present on connectors or terminals, replace or repair per OEM guidance

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This auxiliary relay is an electrical switch used by the control to route line voltage to high-demand components. Replacing a weak or failed relay restores reliable power delivery for consistent heating and fan operation, depending on the model.

• Switches power to elements, fans, or other high-load components when signaled by the control
• Offloads high current from the electronic control for durability and reliability
• Common symptoms can include: oven not heating or heating intermittently; element or blower won't run; audible clicking with no heat; discoloration or melting at relay terminals
• Supports stable operation by providing a dedicated, serviceable switching point in the circuit

• Disconnect power at the breaker and verify no voltage before servicing
• Access the relay near the control/wiring harness; note its mounting orientation
• Move wires one at a time to matching terminals; ensure snug spade connections and repair any heat-damaged wiring
• Secure the relay, reassemble panels, restore power, and test operation

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
