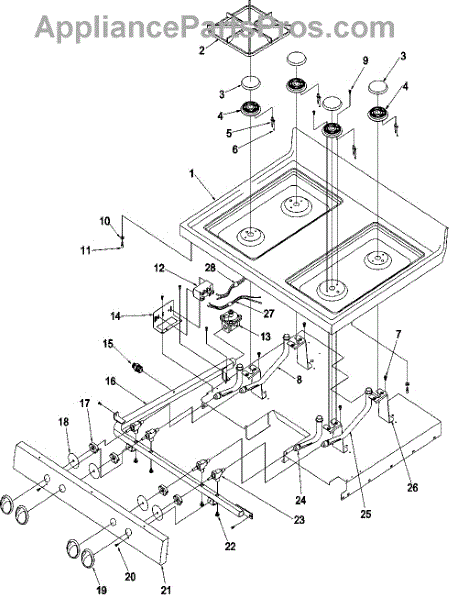

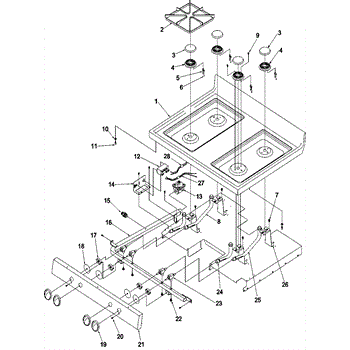

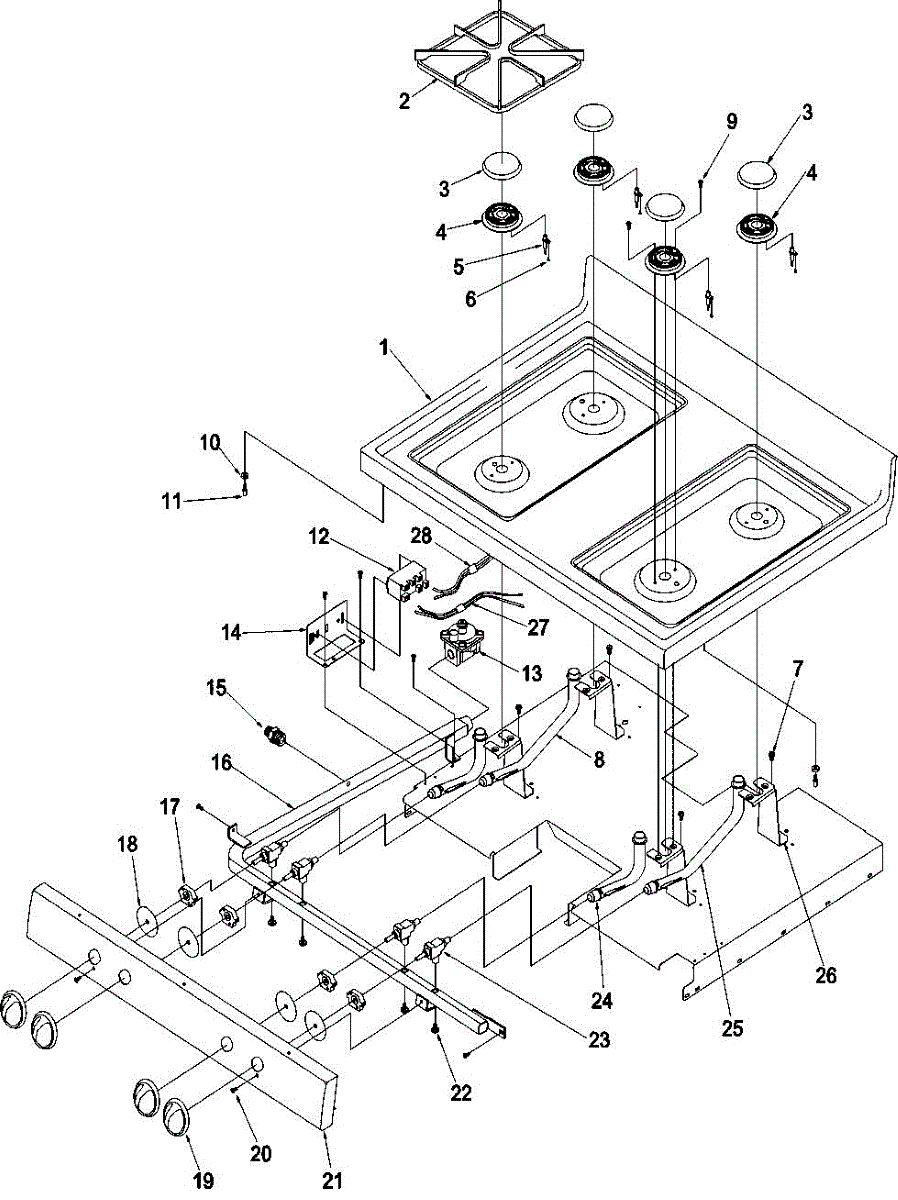

Parts for Amana ARG7202 E / P1143378N E: 04 - Main Top Parts

Color: Black

Medium top burner for gas cooktops that provides a mid-range 9,000 BTU flame, restoring even heat for everyday cooking. Ideal when the original burner is cracked, clogged, or not igniting reliably. What it does:

• Replaces a damaged or worn medium burner to restore consistent, even heat across the cooking surface.
• Provides a mid-range flame output for simmering, boiling, and general-purpose cooking.
• Improves ignition and flame stability when the existing burner lights weakly, unevenly, or produces noisy flames.
• Helps correct issues caused by clogged ports, warped burner heads, or visible cracks.

• Turn off the gas supply and power to the range before starting any service.
• Remove grates and burner caps, lift the old burner straight up, and seat the replacement burner fully over the valve stem.
• Do not force the burner into place; ensure burner ports are clear and aligned before testing.

The Top Burner Igniter is an OEM part for Whirlpool gas ranges. This igniter is responsible for generating the spark needed to ignite the gas burner, ensuring efficient and reliable cooking performance. It plays a crucial role in the overall functionality of the stove, enabling the burners to light quickly and safely.

Causes of a bad top burner igniter can include wear and tear from regular use, buildup of food or grease that affects its operation, damage from cleaning, and electrical issues such as power surges or faulty wiring.

Symptoms of a bad top burner igniter include:

• Burners not lighting or taking a long time to ignite
• Weak or no spark visible at the igniter
• Clicking sound without ignition
• Uneven flame or burners not staying lit

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly
