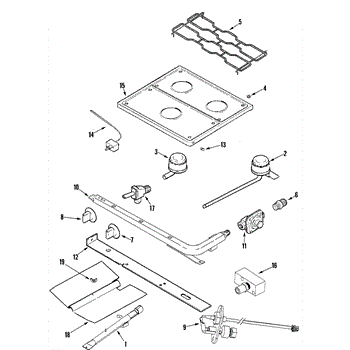

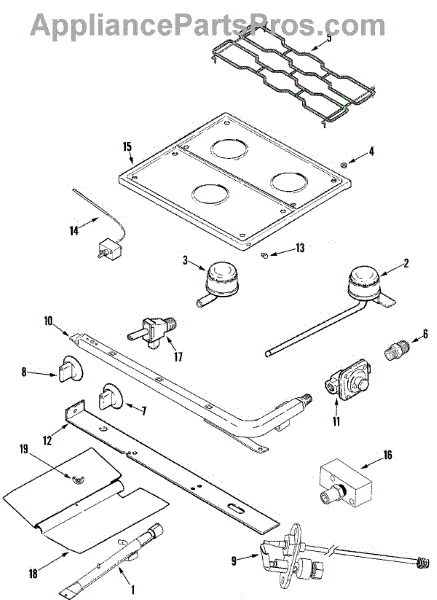

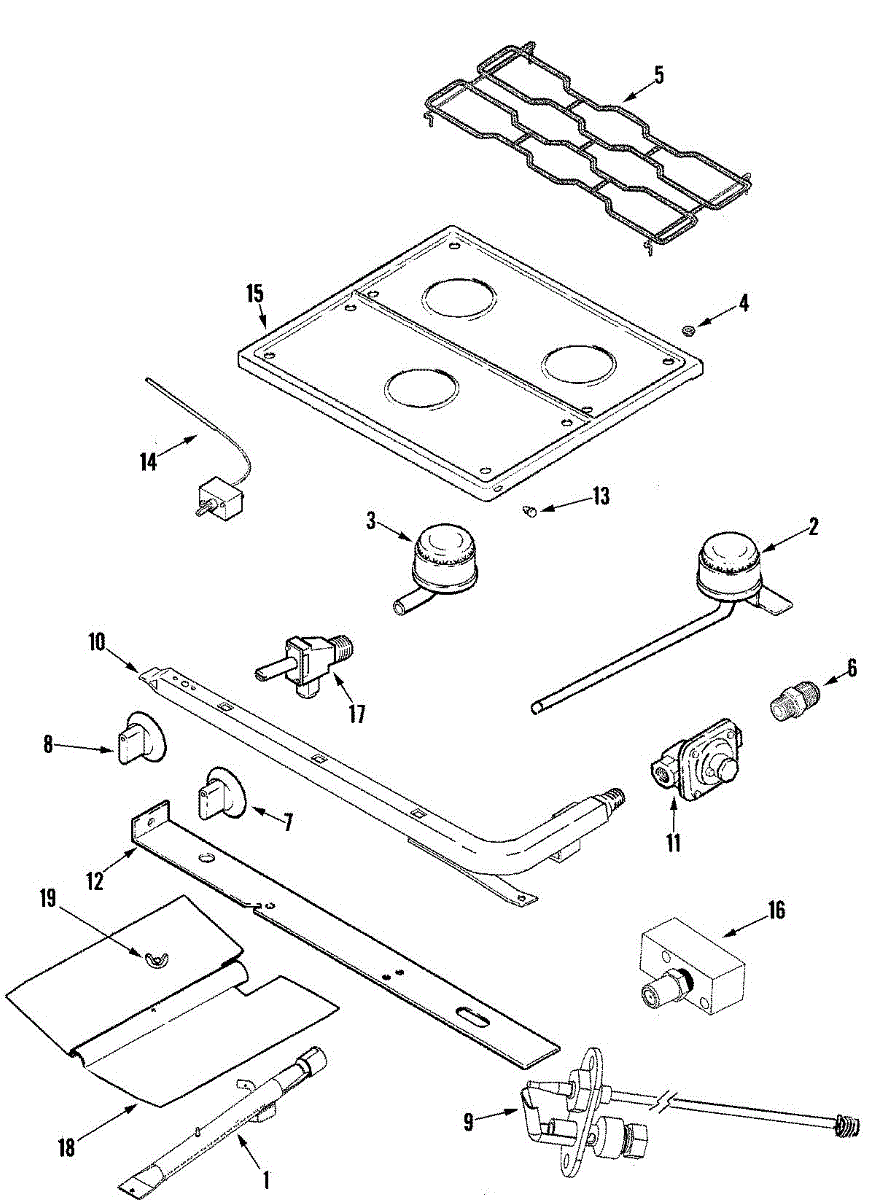

Parts for Magic Chef CLY2210BDB: 04 - Top & Gas Controls Parts

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This silicone grommet fits into the burner grate to cushion and stabilize it on the cooktop. It helps prevent rocking and rattling while protecting the surface from metal-to-surface contact and scratches.

• Provides a cushioned interface between the grate and cooktop to reduce noise and wear
• Helps keep the grate level and securely positioned during use
• Minimizes vibration and metal-to-surface contact to protect the finish
• Worn or missing grommets can cause grate wobble, rattling, or scraping marks

• Turn off all burners and allow the cooktop to cool completely
• Remove the grate; pull out the old grommet and clean the recess
• Press the new grommet fully into the grate opening, aligning as shown in your model's diagram
• Reinstall the grate and verify it sits level and stable; replace multiple grommets if wear is uneven

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations

Replace a worn, cracked, or missing surface burner knob to restore smooth, precise heat control on your cooktop. This direct-fit knob brings back easy ON/OFF operation and clear setting alignment for everyday cooking.

• Attaches to the surface burner valve stem to turn the burner on/off and adjust flame or heat level
• Common symptoms: knob cracked or stripped, spins freely or falls off, melted/discolored, or missing
• Restores proper pointer alignment and a clean, finished look
• Designed for the surface burner position; match style and shaft orientation to your original

• Allow the appliance to cool completely before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the stem orientation with the new knob and press straight on until fully seated
• Disconnect power or shut off gas before any work near controls

This thermostat knob is the control dial that lets you set temperature or cycle settings on compatible Whirlpool appliances. It restores a secure grip and clear position reference so you can select settings easily. What it does

• Replaces a missing, cracked, or stripped thermostat/control knob
• Provides a tactile grip and visible indicator for accurate temperature or cycle selection
• Helps resolve issues where the control is hard to turn or slips on the shaft
• Fits on the appliance's thermostat/control shaft to restore normal operation

• Disconnect power to the appliance before servicing to avoid electrical shock
• Pull the old knob straight off the control shaft; align the new knob's splines with the shaft and push on firmly
• If the knob is tight or stuck, use a non-marring pry tool and work gently to avoid damaging the control panel
• If the shaft or underlying control is damaged, replace the control assembly rather than forcing the knob

This pilot burner supplies the standing pilot flame for the right-side surface burners on standing-pilot gas ranges. Replacing a clogged or damaged pilot restores consistent ignition and a stable flame for reliable burner lighting.

• Provides the small, continuous flame that lights the right-side surface burners when their valves are opened
• Helps maintain correct pilot flame size and positioning for dependable crossover ignition
• Safe symptom clues: pilot won't stay lit, weak/yellow flame, intermittent or no lighting of the right-side burners, needing a match to light
• Physical damage or blockage from spills/debris can impair operation

• Disconnect power and shut off gas before servicing; allow the appliance to cool
• Access the pilot area; note routing and orientation before removal
• After reconnecting, check all gas connections with an approved leak-detection solution
• Adjust the pilot flame to manufacturer specifications and re-light pilots as required

This oven thermostat regulates your range's cooking temperature. It senses the oven cavity and switches the heat on and off to maintain your set point, helping restore accurate, consistent baking and roasting results.

• Regulates oven temperature by sensing heat and cycling the burner/element to hold the set point
• Symptoms of a failing thermostat include running too hot or too cool
• Food may bake unevenly, be undercooked/overcooked, or the oven may not reach the set temperature
• Preheat may take excessively long or temperature may swing widely
• Heat may not cycle off once the set temperature is reached

• Disconnect electrical power; for gas ranges also shut off the gas supply
• Allow the oven to cool completely before service and use proper PPE
• If your original uses a sensing bulb/capillary, route and secure it exactly as the original and avoid kinks or sharp bends
• After installation, verify temperature with an oven thermometer and perform user calibration only if your model supports it

This top burner valve regulates the gas flow to a cooktop surface burner, restoring proper ignition and flame control for safe, efficient cooking. It replaces a worn or leaking burner valve to help burners light and maintain a steady flame. What it does:

• Controls gas flow to a single surface/top burner for ignition and flame adjustment
• Restores burner function when flame is weak, uneven, or fails to light
• Replaces valves that are stuck, leaking, or no longer responsive to the control knob
• Works as the interface between the cooktop control and the burner jet

• One top burner valve

• Turn off gas supply and electrical power before servicing; follow all safety guidelines
• Tighten gas fittings to manufacturer torque specs and test all connections for leaks
• Inspect surrounding gaskets and mounting hardware; replace if damaged

This top burner valve controls gas flow to a single surface burner, restoring reliable ignition and adjustable flame control for gas cooktops. Replaces a worn or leaking burner valve to help stop uneven flames and gas smell. What it does:

• Regulates gas delivery to the top/surface burner for normal ignition and flame adjustment
• Commonly replaced for symptoms like weak or inconsistent flame, gas odor from the cooktop area, or a valve that won't turn smoothly
• Works with the cooktop's control knob and orifice to provide steady, adjustable heat

• One top burner valve (single valve only)

• Turn off gas supply and power to the appliance before inspecting or replacing the valve
• Check for proper gas connections and leaks after installation using an approved leak-detection method

This valve kit repairs the appliance's water/control valve assembly and provides the small mounting screw needed for secure installation. It replaces a worn or damaged valve kit so the appliance can restore proper valve function. What it does:

• Replaces the valve assembly components that control water flow or internal fluid routing
• Helps stop issues caused by a damaged valve kit, such as inconsistent water delivery or valve leakage
• Restores secure mounting with the included screw to prevent loose fittings
• Works as the direct replacement kit specified for the original valve location

• Disconnect power and shut off water supply before starting any repair
• Handle valve components carefully to avoid damaging seals and fittings
• Use basic hand tools; avoid overtightening the mounting screw to prevent stripping

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
