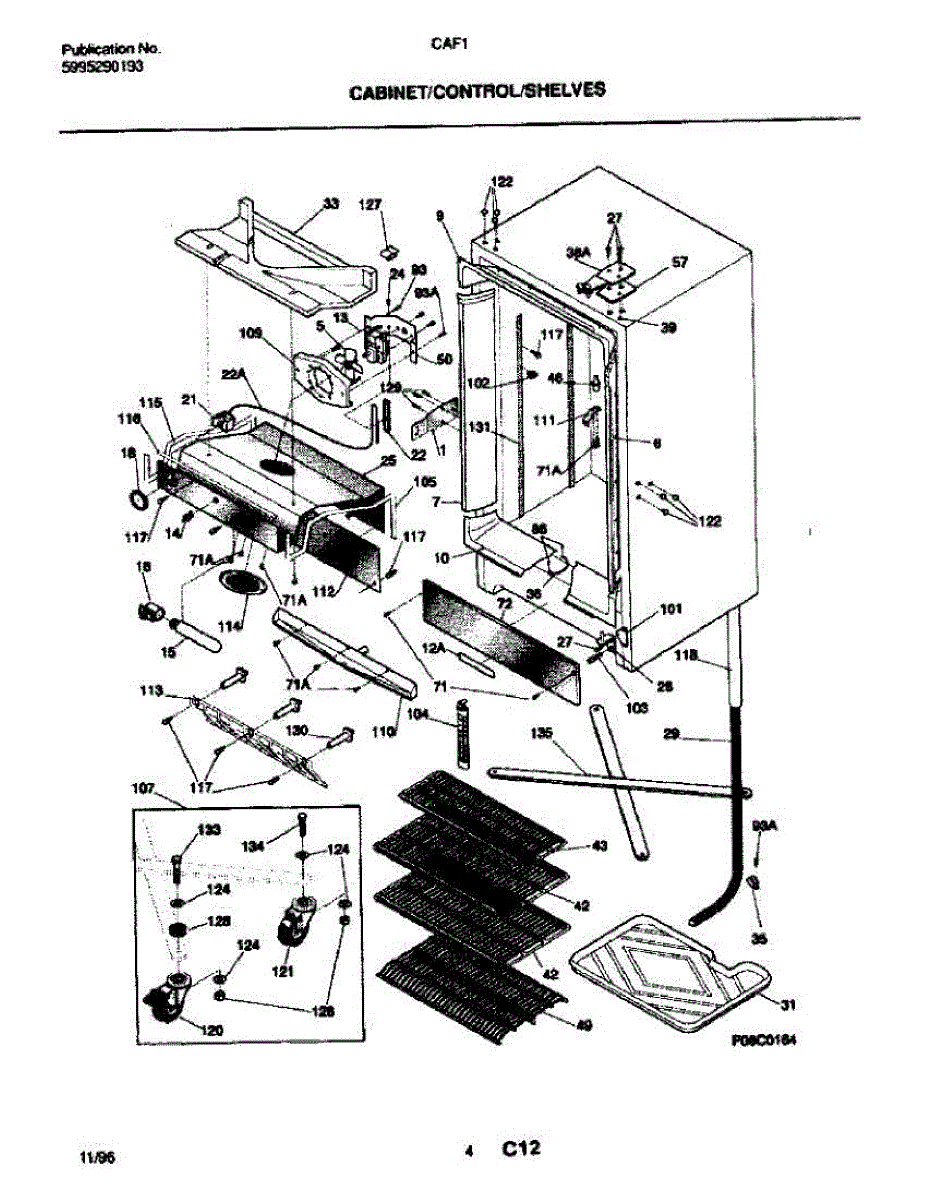

Parts for Frigidaire CAF12: 05 - Cabinet / Control / Shelves Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This motor kit drives the microwave's glass turntable to rotate food for even heating. Replacing a worn motor restores smooth, consistent turntable motion and helps prevent cold spots during cooking or reheating.

• Powers the turntable tray via the coupler to rotate food evenly
• Common failure signs: turntable not turning, intermittent or noisy rotation, or jerky movement
• Helps resolve uneven heating caused by a stalled or slipping turntable

• Unplug the microwave before service; high-voltage components can retain a charge
• Access is typically from the bottom; remove the turntable tray and coupler before disassembly
• Note wire orientation and shaft alignment; transfer any brackets as required
• Test rotation before reassembling the exterior panels

This door-activated light switch controls the interior lamp in your refrigerator or freezer. Replace it to restore dependable on/off lighting when the door opens and closes and prevent a light that stays on and warms the compartment.

• Activates the interior light when the door opens and switches it off when closed
• Helps resolve no interior light, light staying on, or a broken/stuck switch plunger
• Restores reliable visibility inside the compartment
• Direct replacement for the original switch connection

• Disconnect power before servicing
• Release the switch from the liner and gently pull it out
• Transfer wires to the new switch one at a time to maintain correct connections
• Seat the switch flush; restore power and verify the light turns off when the door closes

This replacement control knob restores simple, reliable operation for an appliance control so you can adjust heat, power or function settings with a secure grip. It replaces a cracked, loose or missing knob to make controls usable again. What it does

• Provides a secure grip to turn and set appliance controls.
• Replaces knobs that are cracked, worn, loose or missing.
• Restores basic user control over temperature, power or function settings.
• Helps prevent accidental slips when adjusting controls.

• Always disconnect power to the appliance before servicing electrical components.
• Remove the old knob by pulling it straight off the control shaft; align the new knob and push on until fully seated.
• Do not force the knob onto the shaft—if it won't seat easily, verify shaft type and orientation.

This temperature control thermostat senses cabinet temperature and cycles the cooling system to match your set point. Replace it to restore consistent, adjustable cooling when the original control is worn or unresponsive.

• Senses cabinet temperature and opens/closes internal contacts to regulate cooling
• Cycles the compressor to maintain the selected coldness
• Common symptoms of failure: too warm or too cold, runs continuously or won't start
• Temperature knob has little/no effect or causes erratic temperature swings

• Disconnect power to the appliance before servicing
• Photograph/label wiring; transfer leads one at a time to matching terminals
• Reinstall and secure the sensor/control in its original location; avoid sharp bends or damage
• Set to mid-range and allow up to 24 hours for temperatures to stabilize after replacement

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

This screw is a direct replacement fastener used to secure appliance panels and components. It restores proper fit and prevents rattling or loose parts for a snug, reliable finish. What it does:

• Secures panels, brackets, or trim to keep components properly aligned
• Stops vibration and rattling caused by loose fasteners
• Maintains electrical and mechanical connections by holding parts in place
• Use when original screw is missing, stripped, or corroded

• One replacement screw as pictured

• Use the matching driver bit and apply steady pressure to avoid stripping the head
• Do not overtighten—stop when the part is snug to prevent damage to threads or panel
• Replace with identical screw type and size; compare to the original before installation
• Disconnect power to the appliance if working near electrical components

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This is a genuine replacement shelf support that is designed for use in select freezers and refrigerators. The metal shelf support is installed on the side or back wall of the fridge or freezer unit and holds the shelf in place. It is made of durable metal, but it can become bent or otherwise damaged. In some cases, it may become detached and lost, which would also require a replacement. It's important to get an OEM part like this to ensure an identical fit. This OEM shelf support is manufactured to exact specifications by Frigidaire and can be used in select models from the brand, as well as those from Kelvinator and Gibson. This shelf support can have several applications on various models so it will be important to check the owner's manual parts diagram before installing this part. This genuine support is sold individually. Additional parts and hardware will require an additional purchase. Always wear gloves when performing appliance repairs, even when replacing accessories like this, to protect the hands.

This condensate drain pan sits at the base of the refrigerator to collect defrost water and allow it to evaporate over the warm compressor, helping prevent floor puddles, moisture damage, and musty odors around the unit.

• Collects and holds defrost condensate from the drain tube (also called a drain pan or drip tray)
• Stages water to evaporate safely using compressor/condenser heat
• Replace if the pan is cracked, warped, missing, or leaking
• Common symptoms: water under/behind the refrigerator, damp flooring, or persistent musty odors near the bottom rear

• Unplug the refrigerator and pull it away from the wall; shut off water supply if connected
• Remove the rear lower access panel to reach the pan near the compressor
• Lift out the old pan; clear any debris from the drain outlet; transfer original mounting hardware if needed
• Seat the new pan level under the drain tube; ensure it's secure and reinstall the access panel

This drain tube insulation cushions and thermally protects the refrigerator's defrost drain tube to help prevent condensation and ice buildup. It keeps the drain line insulated so water flows freely to the drip pan and reduces drip/ice-related issues. What it does:

• Wraps around the defrost drain tube to limit heat transfer and condensation.
• Helps prevent drain freeze-ups that can cause water pooling or slow drainage.
• Reduces the chance of water dripping inside the cabinet or onto the floor.
• Supports reliable defrost water routing to the drain pan.

• Always unplug the appliance or disconnect power before servicing.
• Access may require removing the back or inside panel; keep track of fasteners.
• Slide the insulation over the drain tube so it fully covers the exposed section; ensure it sits flat without kinks.
• If corrosion or heavy buildup is present, clean the drain tube before installing new insulation.

Color: White. Used for the upper hinge holes.

This caster nut secures an appliance caster or leveling wheel so the caster stays attached and the appliance rolls or levels properly. A small but essential fastener for caster stability and safe movement. What it does:

• Holds the caster assembly or wheel onto the appliance frame or bracket
• Prevents the caster from loosening or falling off during use or when moving the appliance
• Restores stable, even rolling or leveling when a worn or missing nut causes wobble
• Works with the caster stud/bolt to keep the wheel aligned and secure

• Disconnect power and water and move the appliance to a stable work area before servicing
• Support the appliance so it cannot tip while removing/installing the caster
• Use the correct size wrench or socket to avoid rounding the nut
• Replace damaged or stripped studs or casters if the nut will not secure properly

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

This replacement mounting screw secures internal parts and panels on compatible Frigidaire appliances, restoring proper fit and reducing rattles or loose components. Simple hardware that helps keep assemblies aligned and stable. What it does:

• Fastens panels, brackets or small components to maintain appliance integrity
• Replaces missing or stripped screws that cause loose panels or vibration noise
• Restores secure connections after repairs or part replacements
• Helps prevent further wear caused by loose assemblies

• One replacement mounting screw as shown

• Disconnect power before working on electrical appliances; follow the manufacturer's safety guidelines
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts or threads
• If screw threads or mating hole are damaged, replace with correct hardware.

This is a rear roller mounting bolt that secures the refrigerator drawer/door roller assembly, helping the roller stay fixed for smooth, stable sliding and proper alignment. What it does:

• Fastens the rear roller/roller mount to the appliance frame or bracket
• Keeps the roller assembly aligned so drawers or doors slide evenly
• Can prevent rubbing, sagging, or uneven movement when properly secured
• Works as a single replacement fastener when the original bolt is missing or damaged

• One rear roller mounting bolt

• Hand-start the bolt to avoid cross-threading, then tighten securely without over-torquing
• If working near powered components, unplug the appliance or disconnect power first
• Wear gloves to protect hands from sharp edges and use appropriate tools for access

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
