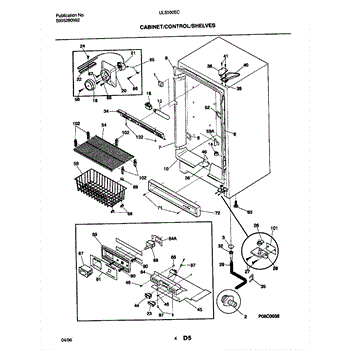

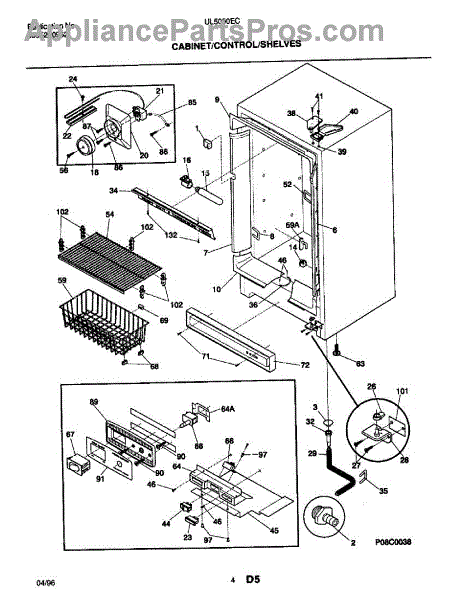

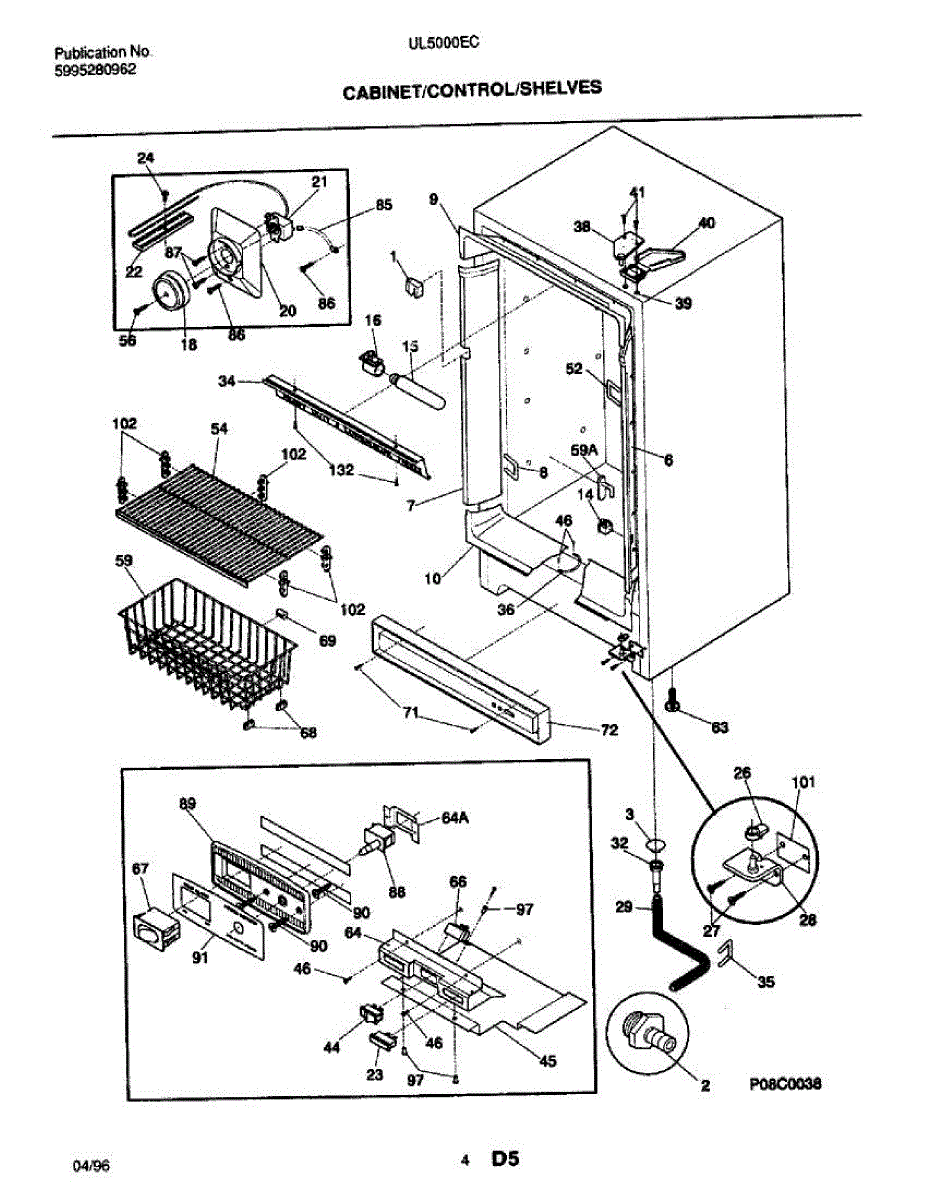

Parts for Frigidaire UL5000ECW2: 05 - Cabinet / Control / Shelves Parts

A removable cap that covers the freezer's defrost drain hole, typically located at the bottom rear of the freezer compartment. Replace when water pools in the freezer, the cap is missing, or ice blocks the drainage system.

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Genuine freezer cabinet screw that secures trim pieces and internal panels. Replace worn, missing, or stripped fasteners to restore proper fit.

Carries defrost water from your freezer drain outlet to the drip pan. Replace if cracked, kinked, or detached to prevent leaks onto floors and cabinets.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

A replacement wire shield that protects appliance wiring from heat, abrasion and contact with sharp edges. Restores routing protection to help prevent chafing, shorts and premature wire wear for safer operation. What it does:

• Covers and shields wiring harnesses from heat, friction and metal edges
• Reduces risk of chafing or insulation damage that can cause shorts or arcing
• Helps maintain proper wire routing and prevents rubbing during normal use
• Visible damage or a burning smell near the cabinet are common signs this shield needs replacement

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the access panel(s) as needed to reach the damaged shield; keep fasteners for reinstallation
• Slide or secure the shield over the wiring harness and restore any clips or retainers to OEM positions
• Inspect adjacent wiring for damage; replace any wires with compromised insulation rather than relying on the shield alone

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

This mounting bracket secures the refrigerator/freezer alarm assembly, keeping the alarm in the correct position so alerts are audible and components stay stable. A simple replacement that helps restore reliable alarm operation. What it does

• Holds the alarm module or buzzer assembly in place inside the appliance chassis
• Prevents vibration or movement that can mute or misalign the alarm
• Commonly replaced when alarm is loose, rattling, or not properly secured
• Works with the alarm/buzzer housing to ensure audible temperature or door alerts

• Mounting bracket for alarm assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; keep fasteners removed from the appliance
• Match the bracket orientation to the alarm housing and secure all mounting screws snugly—do not overtighten

Replacement slide for freezer wire baskets. Attaches to basket bottom for smooth gliding along tracks. Replace when broken, cracked, or missing to restore alignment.

Authentic freezer basket bumper that attaches to baskets to prevent sliding inside the freezer. Replace if broken, cracked, or missing to keep baskets stable.

Replacement mounting screw for various appliances. Needed when original screws are stripped, lost, or damaged during repair or maintenance work.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
