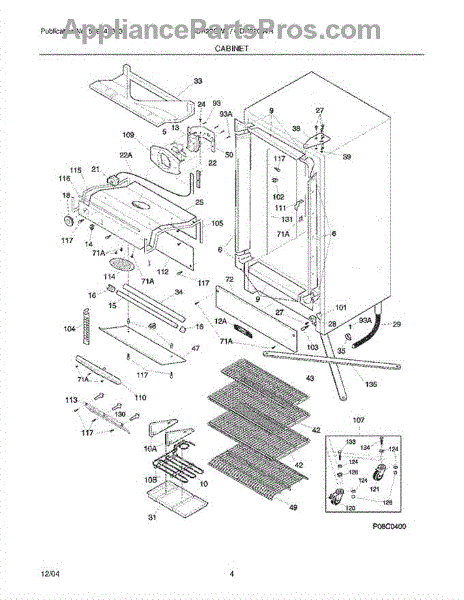

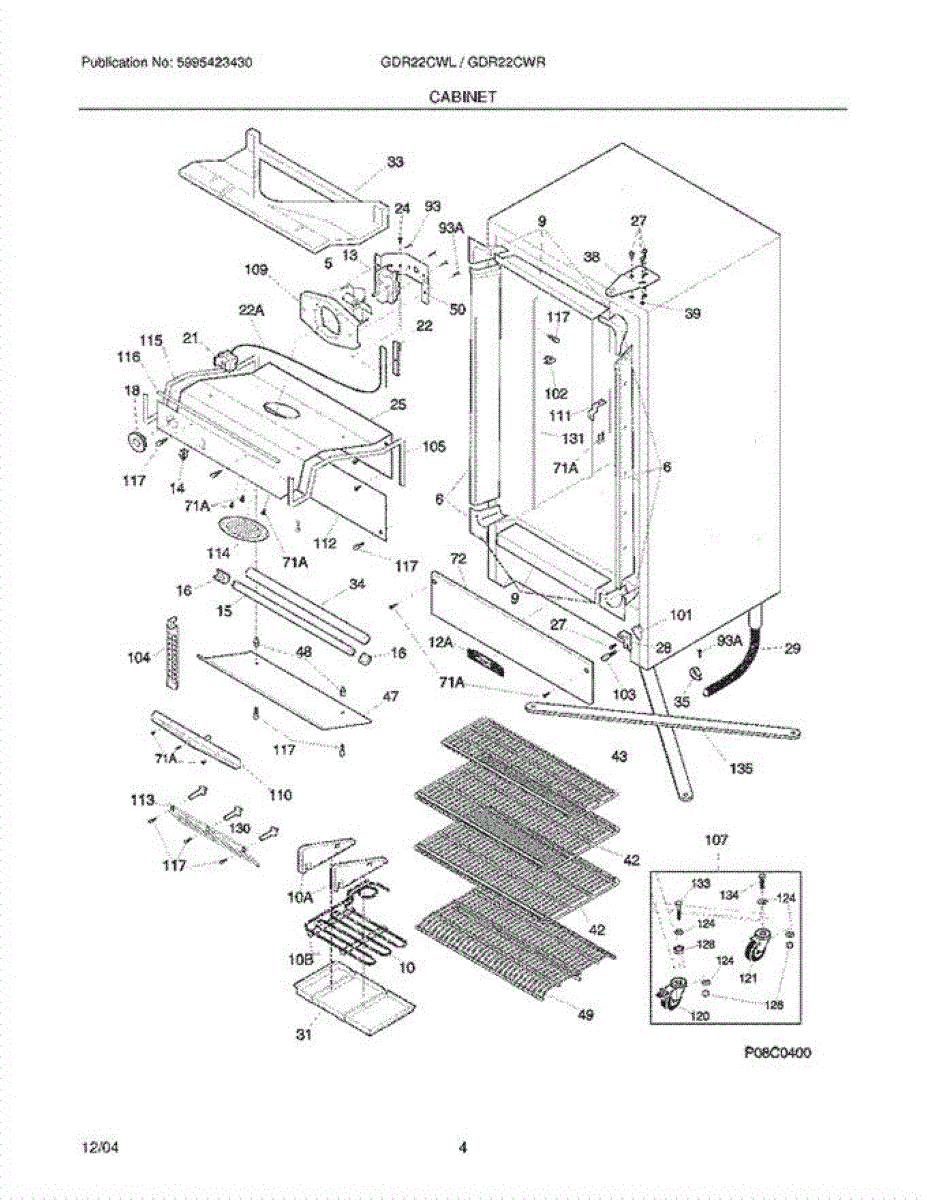

Parts for Crosley GDR22CWL4: 05 - Cabinet Parts

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

This kit provides structural support and sealing for freezer compartments, including corner reinforcements to maintain proper door alignment. Replace it if you notice air leaks around the freezer door, frost buildup, or if the door doesn't close properly.

This fan motor kit includes the evaporator fan motor and associated mounting hardware used in the freezer compartment. The evaporator fan circulates cold air over the evaporator coils and throughout the freezer and refrigerator sections. Replace this motor if the freezer is warm, you hear unusual buzzing or clicking noises, or the fan has stopped spinning, which can lead to uneven cooling or rising temperatures.

This replacement control knob restores simple, reliable operation for an appliance control so you can adjust heat, power or function settings with a secure grip. It replaces a cracked, loose or missing knob to make controls usable again. What it does

• Provides a secure grip to turn and set appliance controls.
• Replaces knobs that are cracked, worn, loose or missing.
• Restores basic user control over temperature, power or function settings.
• Helps prevent accidental slips when adjusting controls.

• Always disconnect power to the appliance before servicing electrical components.
• Remove the old knob by pulling it straight off the control shaft; align the new knob and push on until fully seated.
• Do not force the knob onto the shaft—if it won't seat easily, verify shaft type and orientation.

Fix a refrigerator that's freezing food or not cooling consistently. This temperature control thermostat regulates cooling cycles for stable temps.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Bottom door hinge for freestanding freezers and refrigerators. Replaces cracked, broken, or worn hinges that cause door misalignment or sagging.

This screw is a direct replacement fastener used to secure appliance panels and components. It restores proper fit and prevents rattling or loose parts for a snug, reliable finish. What it does:

• Secures panels, brackets, or trim to keep components properly aligned
• Stops vibration and rattling caused by loose fasteners
• Maintains electrical and mechanical connections by holding parts in place
• Use when original screw is missing, stripped, or corroded

• One replacement screw as pictured

• Use the matching driver bit and apply steady pressure to avoid stripping the head
• Do not overtighten—stop when the part is snug to prevent damage to threads or panel
• Replace with identical screw type and size; compare to the original before installation
• Disconnect power to the appliance if working near electrical components

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Metal shelf support clip installs on refrigerator or freezer walls to hold shelves securely in place. Replace if bent, broken, or missing clips.

The blower venturi is located in the freezer section and helps circulate cold air throughout the refrigerator compartments. Signs of failure include inconsistent temperatures, frost buildup, or unusual noises from the cooling system.

This condensate drain pan sits at the base of the refrigerator to collect defrost water and allow it to evaporate over the warm compressor, helping prevent floor puddles, moisture damage, and musty odors around the unit.

• Collects and holds defrost condensate from the drain tube (also called a drain pan or drip tray)
• Stages water to evaporate safely using compressor/condenser heat
• Replace if the pan is cracked, warped, missing, or leaking
• Common symptoms: water under/behind the refrigerator, damp flooring, or persistent musty odors near the bottom rear

• Unplug the refrigerator and pull it away from the wall; shut off water supply if connected
• Remove the rear lower access panel to reach the pan near the compressor
• Lift out the old pan; clear any debris from the drain outlet; transfer original mounting hardware if needed
• Seat the new pan level under the drain tube; ensure it's secure and reinstall the access panel

This front roller is a replacement sliding wheel that supports the front of the appliance and lets the cabinet roll smoothly for repositioning or floor cleaning. Restores ease of movement and helps prevent floor damage from scraping. What it does:

• Replaces a worn or broken front roller that causes rough, noisy, or uneven rolling
• Restores smooth forward/backward movement when moving the appliance for cleaning or service
• Helps keep the appliance level at the front once adjusted
• Reduces scraping or catching on flooring from a damaged wheel

• One front roller

• Unplug the appliance or disconnect power before starting any service
• Tilt or raise the unit only as recommended by the manufacturer; use two people for heavy appliances
• Remove any trim or mounting screws securing the old roller and replace with the OEM roller and hardware
• Test movement and leveling after installation; retighten fasteners if needed

This caster nut secures an appliance caster or leveling wheel so the caster stays attached and the appliance rolls or levels properly. A small but essential fastener for caster stability and safe movement. What it does:

• Holds the caster assembly or wheel onto the appliance frame or bracket
• Prevents the caster from loosening or falling off during use or when moving the appliance
• Restores stable, even rolling or leveling when a worn or missing nut causes wobble
• Works with the caster stud/bolt to keep the wheel aligned and secure

• Disconnect power and water and move the appliance to a stable work area before servicing
• Support the appliance so it cannot tip while removing/installing the caster
• Use the correct size wrench or socket to avoid rounding the nut
• Replace damaged or stripped studs or casters if the nut will not secure properly

This is a rear roller mounting bolt that secures the refrigerator drawer/door roller assembly, helping the roller stay fixed for smooth, stable sliding and proper alignment. What it does:

• Fastens the rear roller/roller mount to the appliance frame or bracket
• Keeps the roller assembly aligned so drawers or doors slide evenly
• Can prevent rubbing, sagging, or uneven movement when properly secured
• Works as a single replacement fastener when the original bolt is missing or damaged

• One rear roller mounting bolt

• Hand-start the bolt to avoid cross-threading, then tighten securely without over-torquing
• If working near powered components, unplug the appliance or disconnect power first
• Wear gloves to protect hands from sharp edges and use appropriate tools for access

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
