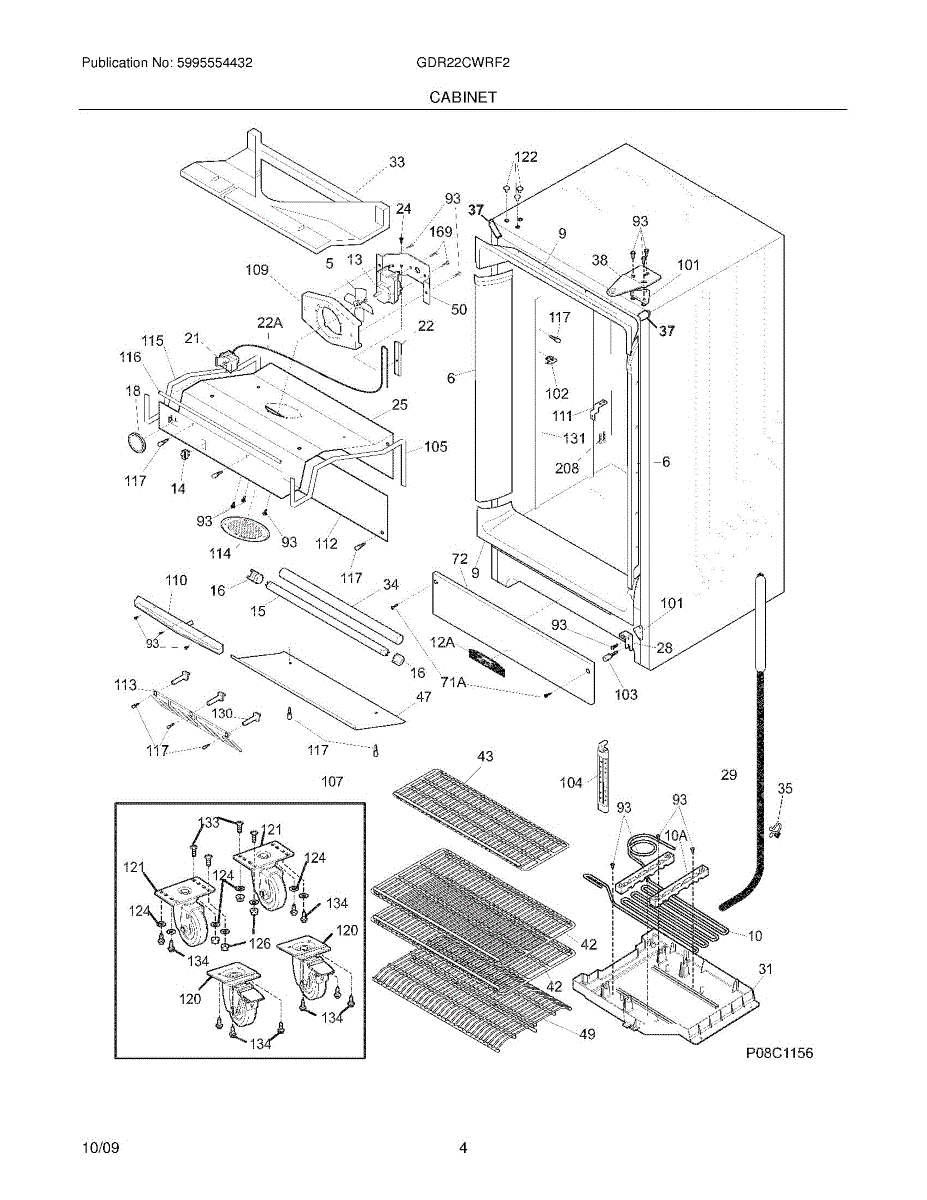

Parts for Electrolux GDR22CWRF2: 05 - Cabinet Parts

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

Door breaker trim kit with corner pieces for freezers. Installs along door edges to protect and seal. Replace if cracked, broken, or missing pieces.

This cabinet breaker kit forms the insulating trim around the appliance opening. It provides a proper surface for the door or lid gasket to seal against and helps minimize condensation along the edge for clean, reliable performance.

• Creates the thermal break and finished edge around the cabinet opening
• Supports correct seating of the door/lid gasket for a consistent seal
• Helps reduce sweating or moisture at the perimeter
• Replaces cracked, warped, or missing breaker trim components

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the door/lid if required for access and retain all fasteners
• Carefully remove old breaker components and clean the mounting surfaces
• Install the new breaker and corners, align evenly, avoid overtightening, and verify the gasket seals all around

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

This replacement control knob restores simple, reliable operation for an appliance control so you can adjust heat, power or function settings with a secure grip. It replaces a cracked, loose or missing knob to make controls usable again. What it does

• Provides a secure grip to turn and set appliance controls.
• Replaces knobs that are cracked, worn, loose or missing.
• Restores basic user control over temperature, power or function settings.
• Helps prevent accidental slips when adjusting controls.

• Always disconnect power to the appliance before servicing electrical components.
• Remove the old knob by pulling it straight off the control shaft; align the new knob and push on until fully seated.
• Do not force the knob onto the shaft—if it won't seat easily, verify shaft type and orientation.

Fix a refrigerator that's freezing food or not cooling consistently. This temperature control thermostat regulates cooling cycles for stable temps.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Bottom door hinge for freestanding freezers and refrigerators. Replaces cracked, broken, or worn hinges that cause door misalignment or sagging.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Cabinet corner trim piece for freezers. Covers and finishes the corner edge of the cabinet exterior. Replace if cracked, chipped, or missing.

Upper door hinge for freestanding freezers. Mounts at the top of the door to support weight and allow smooth opening. Replace if cracked or damaged.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Metal shelf support clip installs on refrigerator or freezer walls to hold shelves securely in place. Replace if bent, broken, or missing clips.

Replacement roller caster kit for freestanding freezers. Installs on the base to allow smooth rolling movement. Needed when casters are cracked or worn.

The blower venturi is located in the freezer section and helps circulate cold air throughout the refrigerator compartments. Signs of failure include inconsistent temperatures, frost buildup, or unusual noises from the cooling system.

This condensate drain pan sits at the base of the refrigerator to collect defrost water and allow it to evaporate over the warm compressor, helping prevent floor puddles, moisture damage, and musty odors around the unit.

• Collects and holds defrost condensate from the drain tube (also called a drain pan or drip tray)
• Stages water to evaporate safely using compressor/condenser heat
• Replace if the pan is cracked, warped, missing, or leaking
• Common symptoms: water under/behind the refrigerator, damp flooring, or persistent musty odors near the bottom rear

• Unplug the refrigerator and pull it away from the wall; shut off water supply if connected
• Remove the rear lower access panel to reach the pan near the compressor
• Lift out the old pan; clear any debris from the drain outlet; transfer original mounting hardware if needed
• Seat the new pan level under the drain tube; ensure it's secure and reinstall the access panel

Threaded insert nut creates secure anchor point in thin metal or plastic panels. Replace worn, stripped, or missing insert nuts to properly mount covers.

Plastic cover that protects the blower motor in your freezer. Replace if cracked, broken, or missing to restore proper airflow protection and appearance.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Specs: Hex head ,1/4-20 x 5/8

This ballast is the electrical control module for a refrigerator fluorescent light assembly, regulating current so the lamp starts and runs properly. Replaces a failed ballast to restore steady lighting and proper lamp operation. What it does:

• Regulates the electrical current to the fluorescent lamp so it starts and stays lit
• Can stop flickering or intermittent lighting caused by a failing ballast
• Prevents lamps from staying dim or not starting at all
• Works as part of the refrigerator's interior lighting system

• One light ballast (1 count)

• Disconnect power to the appliance before servicing to avoid shock
• Access is typically behind the interior light housing or access panel; remove bulbs and cover first
• Handle connectors gently and match wiring location; replace only with the same type of ballast

Wire harness for freestanding freezers and refrigerators. Connects electrical components. Replace if wires are frayed, damaged, or connections are loose.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
