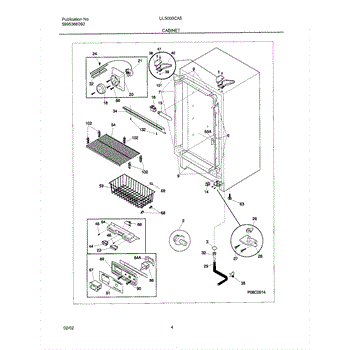

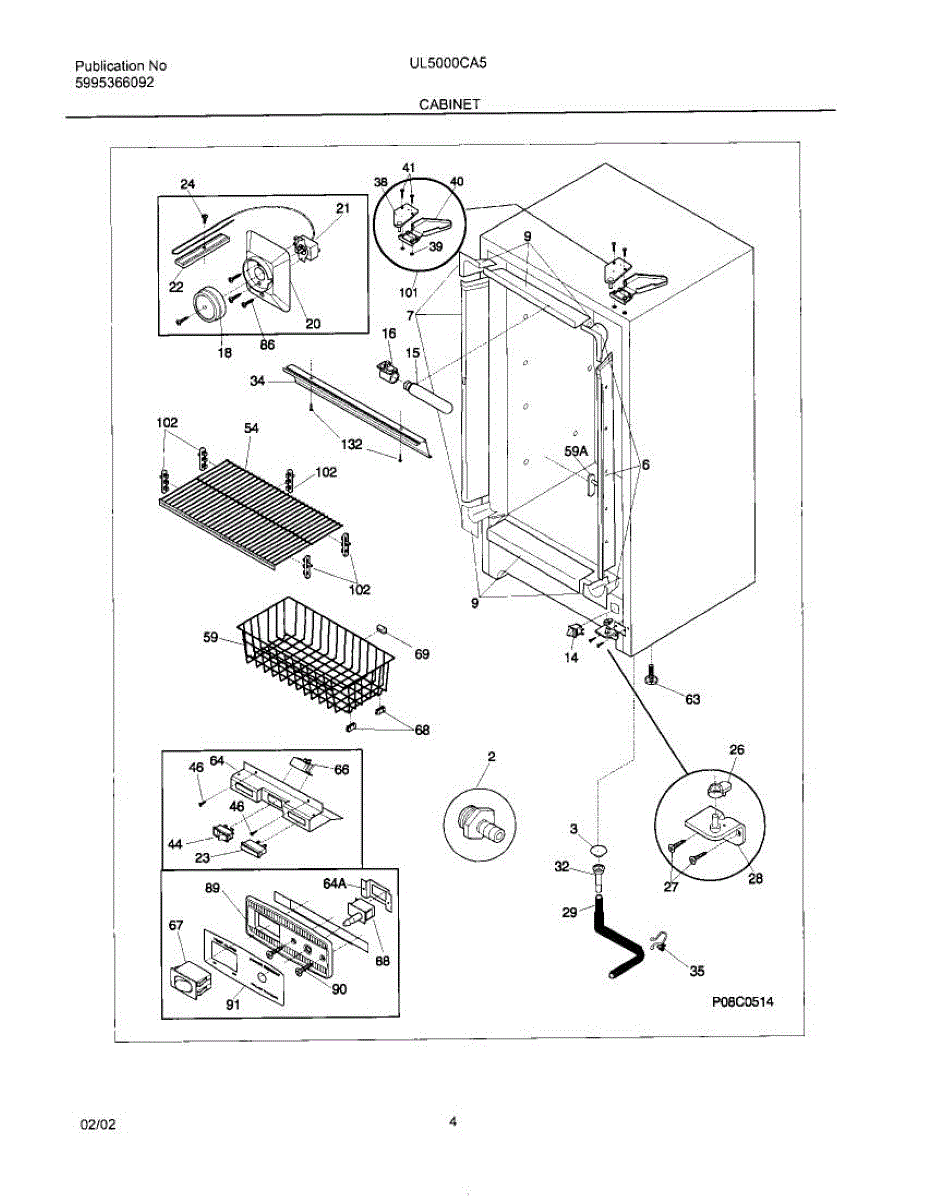

Parts for Frigidaire UL5000CA5: 05 - Cabinet Parts

A removable cap that covers the freezer's defrost drain hole, typically located at the bottom rear of the freezer compartment. Replace when water pools in the freezer, the cap is missing, or ice blocks the drainage system.

This kit provides structural support and sealing for freezer compartments, including corner reinforcements to maintain proper door alignment. Replace it if you notice air leaks around the freezer door, frost buildup, or if the door doesn't close properly.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Interior light not working? This light socket provides the electrical connection for your freezer bulb. Simple DIY fix restores compartment lighting.

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

Replacement control housing cover for freezers. Snaps over the control panel assembly. Replace if cracked, broken, or missing to restore appearance.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Genuine freezer cabinet screw that secures trim pieces and internal panels. Replace worn, missing, or stripped fasteners to restore proper fit.

Drain hose that channels wastewater from your freezer to the household drain. Replace if cracked, clogged, or leaking to restore proper drainage.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Protective cover that snaps over your freezer's door hinge. Replace if cracked, broken, or missing to restore a finished look and shield the hinge.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

This mounting bracket secures the refrigerator/freezer alarm assembly, keeping the alarm in the correct position so alerts are audible and components stay stable. A simple replacement that helps restore reliable alarm operation. What it does

• Holds the alarm module or buzzer assembly in place inside the appliance chassis
• Prevents vibration or movement that can mute or misalign the alarm
• Commonly replaced when alarm is loose, rattling, or not properly secured
• Works with the alarm/buzzer housing to ensure audible temperature or door alerts

• Mounting bracket for alarm assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; keep fasteners removed from the appliance
• Match the bracket orientation to the alarm housing and secure all mounting screws snugly—do not overtighten

Replacement slide for freezer wire baskets. Attaches to basket bottom for smooth gliding along tracks. Replace when broken, cracked, or missing to restore alignment.

Authentic freezer basket bumper that attaches to baskets to prevent sliding inside the freezer. Replace if broken, cracked, or missing to keep baskets stable.

Shelf support for upright freezers. Secures and stabilizes shelves inside the freezer compartment. Replace if cracked, broken, or missing.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.
