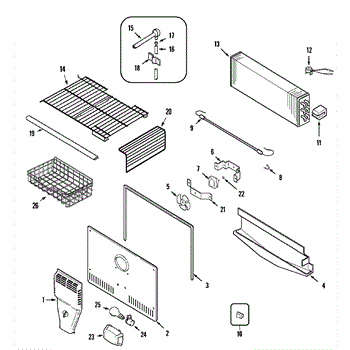

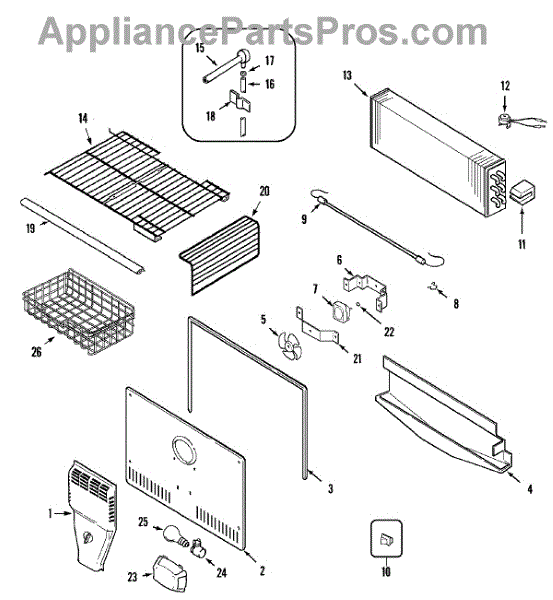

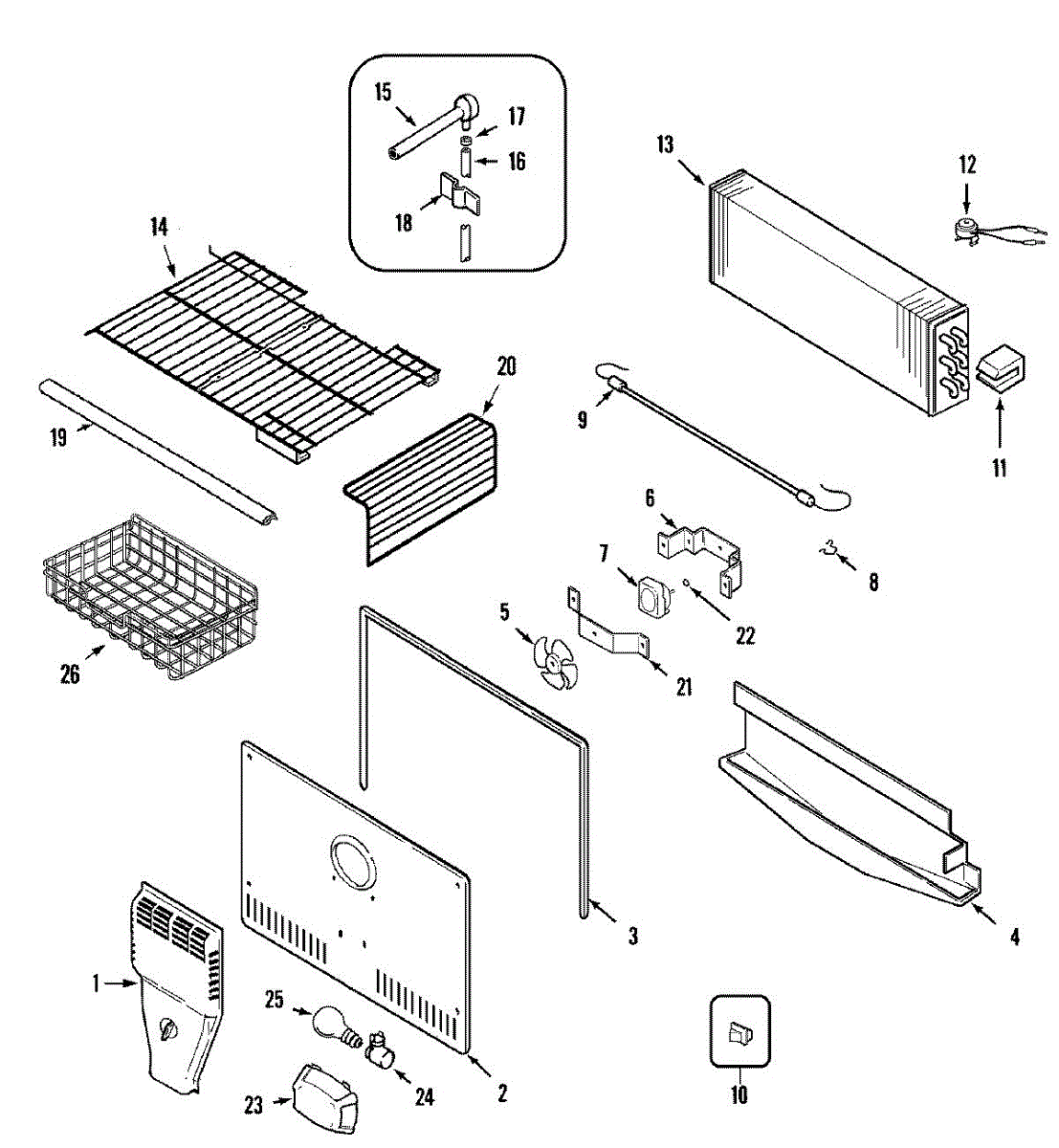

Parts for Maytag MTF1956GEW: 05 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

Size: 8-32 x .312 inch.

This evaporator fan motor drives the internal fan that circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments, helping maintain even temperatures and proper cooling.

• Moves air over the evaporator to remove heat and reduce frost buildup
• Helps restore weak cooling, warm spots, or long run times
• Can resolve frost or ice accumulation on the evaporator cover due to poor airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically from the freezer section behind the rear panel
• Transfer fan blade and any mounting components from the old motor if required
• Verify correct motor orientation and wire placement per your model's diagram

This radiant defrost heater melts ice build-up on the evaporator coil so your refrigerator can maintain proper airflow and cooling. It restores normal defrost operation and helps prevent excessive frost accumulation. What it does:

• Radiant heating element designed to melt frost and ice from the evaporator coil during the defrost cycle
• Restores airflow and consistent cooling when the evaporator has been restricted by ice
• Common symptom: visible frost or ice on evaporator or in freezer compartment
• Common symptom: poor or uneven cooling, longer run times, or a freezer that cycles abnormally

• One radiant defrost heater (single unit as shown)

• Disconnect power to the appliance before servicing to avoid shock risk
• Access typically requires removing the evaporator cover; handle evaporator fins and heater carefully
• Inspect defrost thermostat/thermistor and defrost control components while replacing the heater — replace only the failed components

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This defrost thermostat is the temperature limit switch for the evaporator. It lets the defrost heater run when coils are icy and opens as they warm to end the cycle, helping stop frost buildup and restore steady cooling.

• Monitors evaporator temperature; closed when cold to allow the defrost heater to energize
• Opens as the coil warms to terminate defrost and protect components from overheating
• Failure may cause heavy frost on the back wall/evaporator and weak airflow or a warm refrigerator section
• Can also lead to long run times or cooling that returns only briefly after a manual defrost

• Unplug the refrigerator or disconnect power before servicing
• Located behind the freezer's rear panel on the evaporator; remove shelves/ice bin and panel to access
• Reinstall in the same position/clip for firm contact with the coil or tubing
• Make secure, insulated wire connections and route wiring away from sharp edges and moving parts

Ice maker water line: 1/4x 8ft.

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

Size: 8-32 x .312 inch.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
