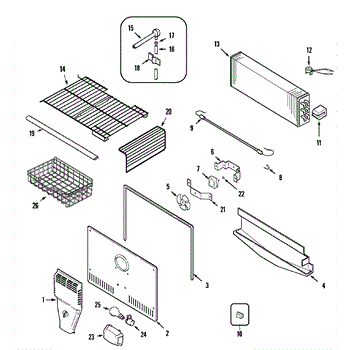

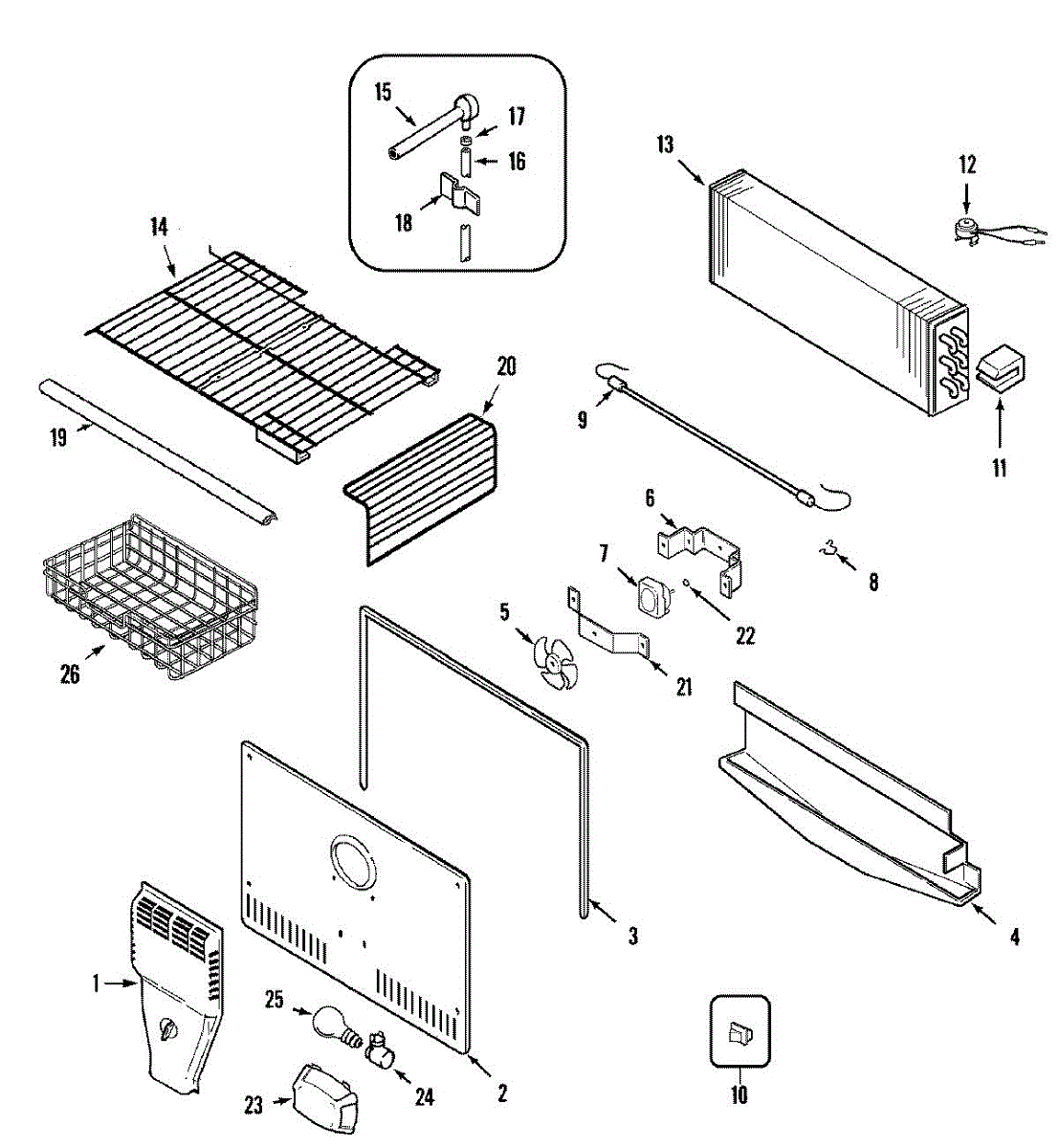

Parts for Maytag MTF2156GES: 05 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Size: 8-32 x .312 inch.

This evaporator fan motor drives the internal fan that circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments, helping maintain even temperatures and proper cooling.

• Moves air over the evaporator to remove heat and reduce frost buildup
• Helps restore weak cooling, warm spots, or long run times
• Can resolve frost or ice accumulation on the evaporator cover due to poor airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically from the freezer section behind the rear panel
• Transfer fan blade and any mounting components from the old motor if required
• Verify correct motor orientation and wire placement per your model's diagram

This radiant-style defrost heater melts frost from the evaporator during automatic defrost cycles. Replacing a failed heater restores airflow and helps maintain consistent temperatures while preventing ice buildup on the freezer back wall.

• Heats the evaporator coil to clear frost/ice during the defrost cycle
• Promotes proper airflow for stable cooling performance
• Common fix for heavy frost on the back freezer panel, warming in the fresh food section, or a noisy evaporator fan contacting ice
• If the element tests open (no continuity), the unit will not defrost

• Disconnect power before servicing; allow built-up ice to melt for safe access
• Access from the freezer by removing the rear panel; handle the glass-sheathed element carefully
• Note wire routing and transfer any reusable shields, clips, or insulation from the original part if present
• After replacement, verify the defrost thermostat/sensor and control initiate a defrost cycle

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This defrost thermostat is the temperature limit switch for the evaporator. It lets the defrost heater run when coils are icy and opens as they warm to end the cycle, helping stop frost buildup and restore steady cooling.

• Monitors evaporator temperature; closed when cold to allow the defrost heater to energize
• Opens as the coil warms to terminate defrost and protect components from overheating
• Failure may cause heavy frost on the back wall/evaporator and weak airflow or a warm refrigerator section
• Can also lead to long run times or cooling that returns only briefly after a manual defrost

• Unplug the refrigerator or disconnect power before servicing
• Located behind the freezer's rear panel on the evaporator; remove shelves/ice bin and panel to access
• Reinstall in the same position/clip for firm contact with the coil or tubing
• Make secure, insulated wire connections and route wiring away from sharp edges and moving parts

Ice maker water line: 1/4x 8ft.

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

Size: 8-32 x .312 inch.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
