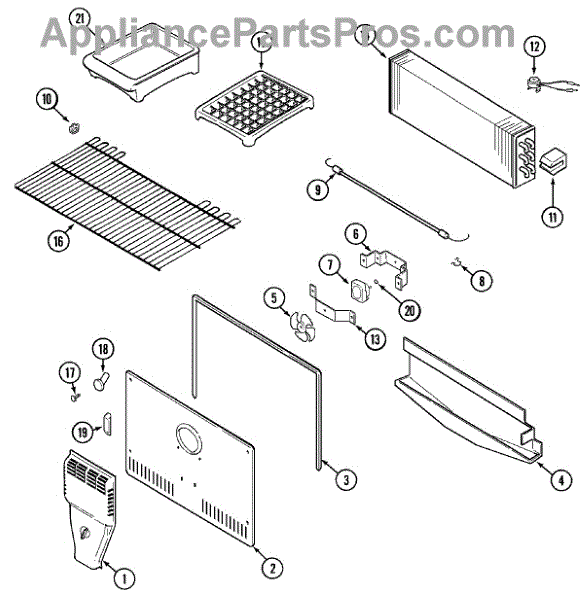

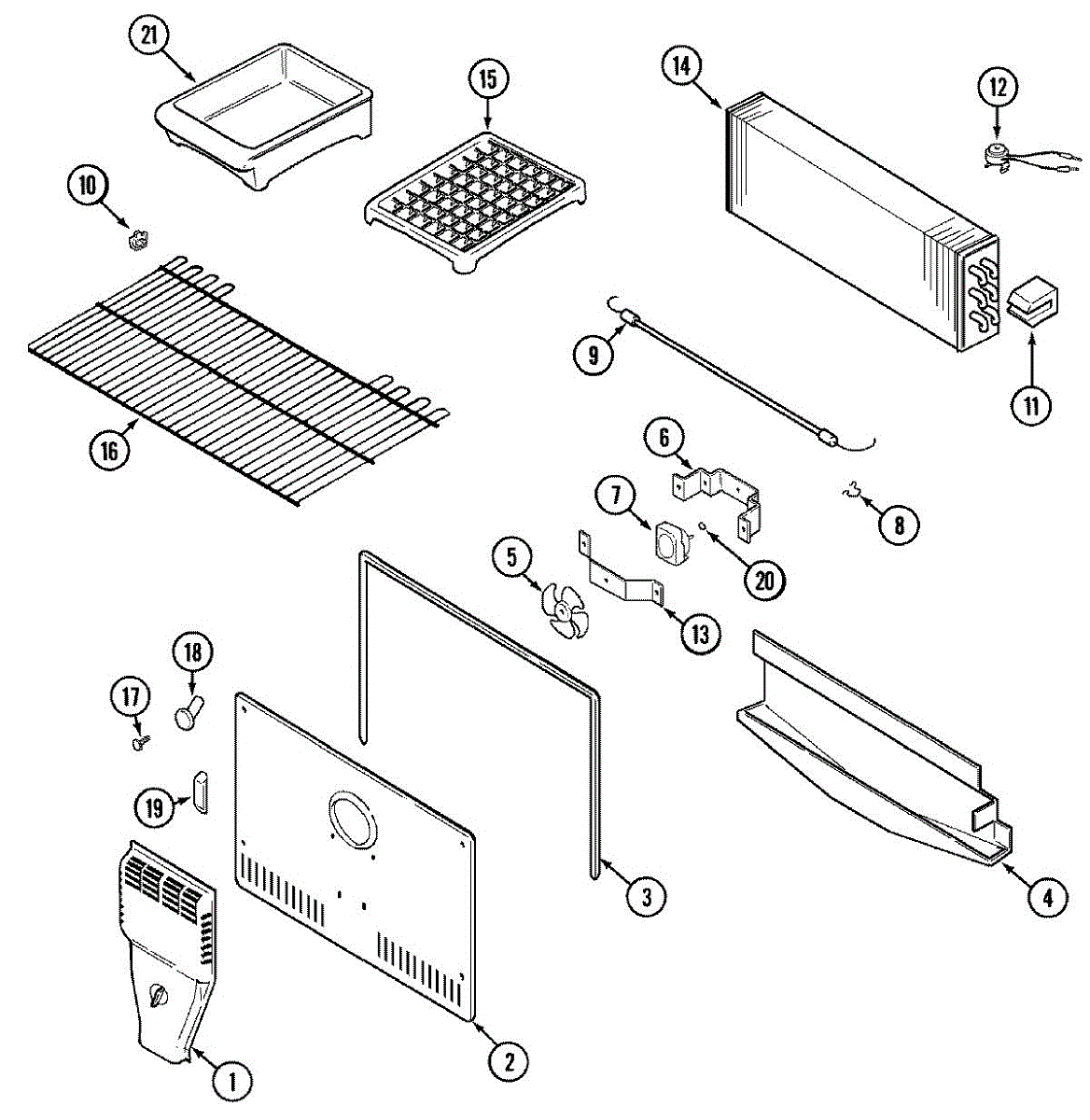

Parts for Maytag PTB2153GEW: 05 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Size: 8-32 x .312 inch.

This evaporator fan motor drives the internal fan that circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments, helping maintain even temperatures and proper cooling.

• Moves air over the evaporator to remove heat and reduce frost buildup
• Helps restore weak cooling, warm spots, or long run times
• Can resolve frost or ice accumulation on the evaporator cover due to poor airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically from the freezer section behind the rear panel
• Transfer fan blade and any mounting components from the old motor if required
• Verify correct motor orientation and wire placement per your model's diagram

This radiant-style defrost heater melts frost from the evaporator during automatic defrost cycles. Replacing a failed heater restores airflow and helps maintain consistent temperatures while preventing ice buildup on the freezer back wall.

• Heats the evaporator coil to clear frost/ice during the defrost cycle
• Promotes proper airflow for stable cooling performance
• Common fix for heavy frost on the back freezer panel, warming in the fresh food section, or a noisy evaporator fan contacting ice
• If the element tests open (no continuity), the unit will not defrost

• Disconnect power before servicing; allow built-up ice to melt for safe access
• Access from the freezer by removing the rear panel; handle the glass-sheathed element carefully
• Note wire routing and transfer any reusable shields, clips, or insulation from the original part if present
• After replacement, verify the defrost thermostat/sensor and control initiate a defrost cycle

This defrost thermostat is the temperature limit switch for the evaporator. It lets the defrost heater run when coils are icy and opens as they warm to end the cycle, helping stop frost buildup and restore steady cooling.

• Monitors evaporator temperature; closed when cold to allow the defrost heater to energize
• Opens as the coil warms to terminate defrost and protect components from overheating
• Failure may cause heavy frost on the back wall/evaporator and weak airflow or a warm refrigerator section
• Can also lead to long run times or cooling that returns only briefly after a manual defrost

• Unplug the refrigerator or disconnect power before servicing
• Located behind the freezer's rear panel on the evaporator; remove shelves/ice bin and panel to access
• Reinstall in the same position/clip for firm contact with the coil or tubing
• Make secure, insulated wire connections and route wiring away from sharp edges and moving parts

Size: 8-32 x .312 inch.

The Ice Cube Tray is an OEM part for Whirlpool refrigerators. This tray is designed to fit securely in the freezer compartment and is used to form and hold ice cubes. The tray ensures that ice cubes are consistently shaped and easily removable for everyday use. The tray measures about 8-1/2 inches wide by 11 inches deep.

Over time, ice cube trays can become damaged or worn due to repeated use, exposure to cold temperatures, or mishandling. Cracks or warping in the tray can lead to leaks or difficulties in removing the ice cubes.

Symptoms of a bad ice cube tray include:

• Cracked or broken sections
• Difficulty in removing ice cubes
• Leaks or water pooling in the freezer
• Misshapen or irregular ice cubes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
