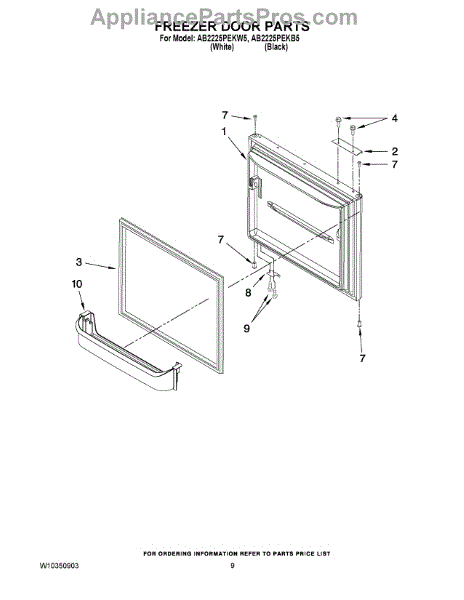

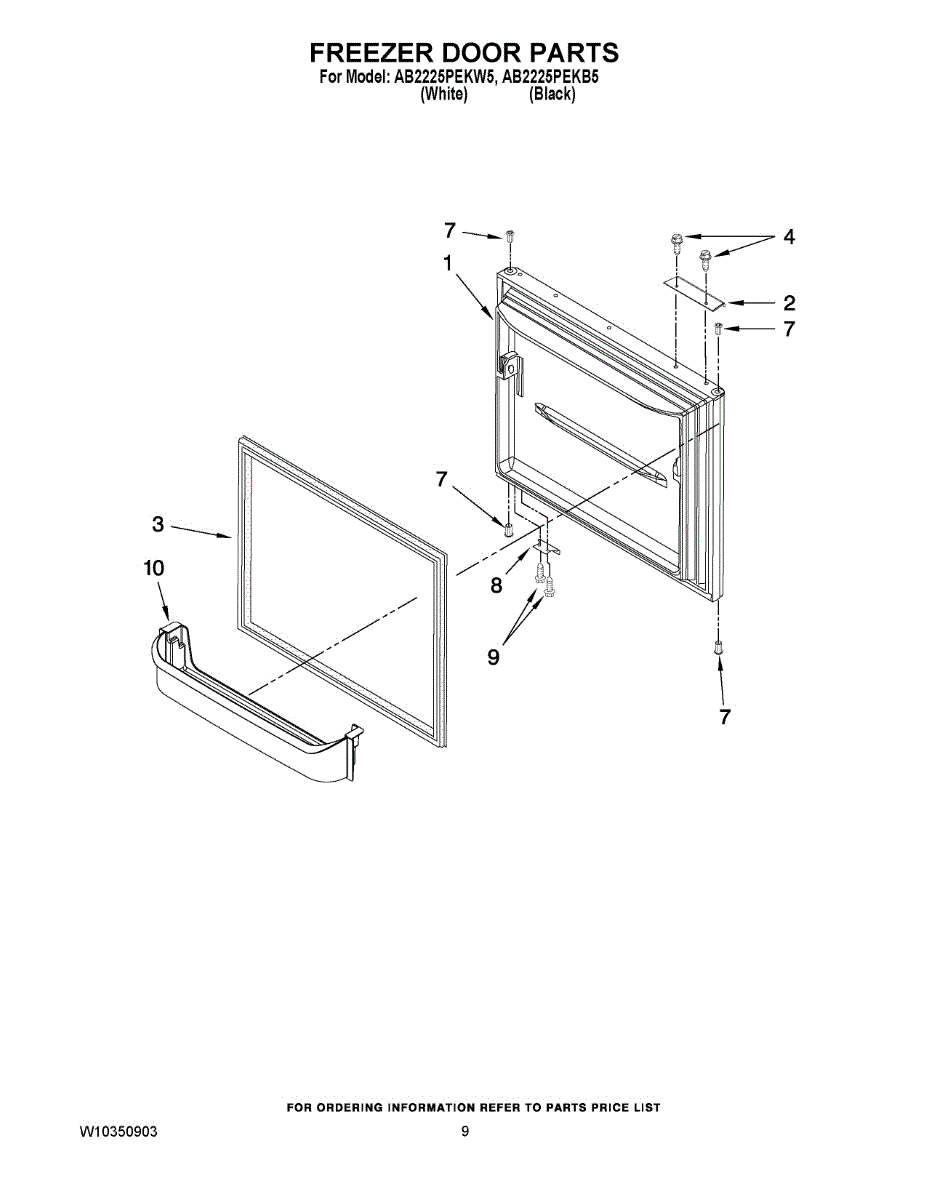

Parts for Maytag AB2225PEKB5: 05 - Freezer Door Parts

The Freezer Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms an airtight seal around the freezer door, preventing warm air from entering and cold air from escaping. It is essential for maintaining the freezer's efficiency and keeping food items properly frozen.

You should replace the freezer door gasket if it becomes damaged or worn out. Causes of a bad gasket can include regular wear and tear, exposure to temperature fluctuations, or damage from frequent opening and closing of the freezer door.

Symptoms of a bad freezer door gasket include:

• Visible cracks or tears in the gasket
• The freezer door not closing properly or staying closed
• Excessive frost buildup inside the freezer
• Increased energy bills due to the appliance working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Gasket-FIP  is an OEM part for Whirlpool refrigerators, ensures an airtight seal around the door, preventing cold air from escaping and warm air from entering. This component contributes to the refrigerator's energy efficiency and cooling effectiveness, maintaining the optimal internal temperature to keep your food fresh longer.

Causes of a bad Gasket-FIP can range from normal wear and tear, accidental damage, or deformation due to improper cleaning methods or exposure to extreme temperatures.

Symptoms of a bad Gasket-FIP include:

• Noticeable gaps between the gasket and the refrigerator door or frame
• Condensation or frost buildup near the door edges
• The refrigerator working harder to maintain its internal temperature, potentially leading to increased energy bills
• The door not closing as smoothly or firmly as it should

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
