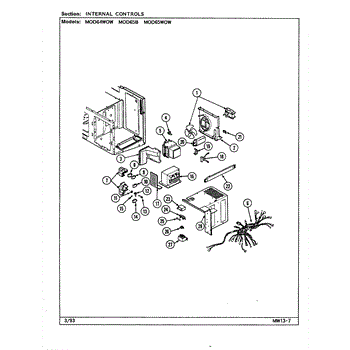

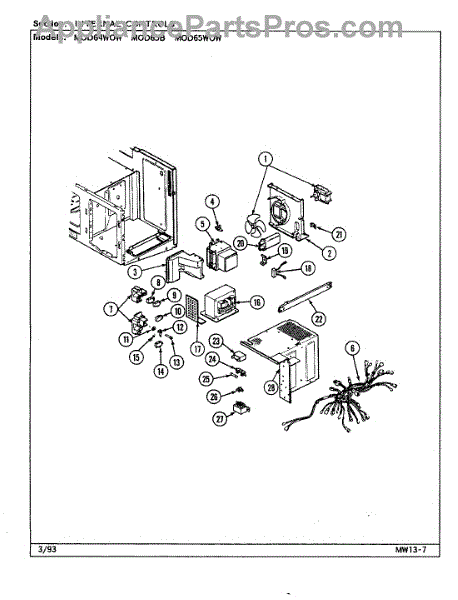

Parts for Magic Chef MOD65WOW: 05 - Internal Controls Parts

This electronic main control board assembly manages the oven's timed functions and user commands so the appliance runs cycles correctly and responds to panel inputs. It replaces a failed control module to restore normal operation. What it does

• Receives and processes inputs from the front control panel and sensors to run selected cycles
• Controls timing, cycle selection, and various operational relays on the appliance
• Common symptoms: appliance won't start, unresponsive controls, incorrect or no cycles, or intermittent operation
• May resolve display errors or fault codes caused by a failed control board

• Disconnect power to the appliance before attempting service to avoid electric shock
• Handle the board carefully; avoid static discharge and contact with printed circuits
• Verify screw locations, connector seating, and grounding during reassembly

This part has been discontinued by the manufacturer and is no longer available.

This primary door interlock switch lets the microwave know the door is fully closed so cooking can start. Replacing a worn or sticking switch restores reliable start/stop response and helps prevent intermittent operation tied to door-latch signaling. What it does

• Confirms the door is closed to allow the control to power the cook circuit
• Common symptoms of a failed switch: won't start, stops when the door is jostled, or only runs when pressing on the door
• Installs on the latch/door switch bracket alongside secondary/monitor switches
• Helps correct inconsistent or no response when pressing Start

• One primary door interlock switch

• Disconnect power at the breaker; microwaves contain high-voltage components that can retain a dangerous charge
• Access the latch/switch bracket, then release the switch from its clip or screws
• Move wires to the same terminals on the new switch; match orientation/actuator position
• After reassembly, verify the unit does not run with the door open and starts consistently with the door closed

This part has been discontinued by the manufacturer and is no longer available.

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

• Provides a secure mounting point and electrical connection for a fuse or inline connection
• Enables proper power flow between the control and high-voltage components
• Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
• Replaces a worn, cracked, or melted terminal block to restore safe connections

• Disconnect power to the appliance before starting any work
• Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

This 15 amp, 250 volt replacement fuse protects your appliance's electrical circuits by interrupting power when a fault or overload occurs. It restores safe operation once the underlying issue is fixed and the fuse is replaced. What it does:

• Acts as an overcurrent protection device for circuits rated up to 15 A and 250 V
• Prevents damage to wiring and components by opening the circuit during an overload or short
• Common symptom: appliance has no power or specific functions stop working after a sudden failure
• Replacing a blown fuse can resolve intermittent power loss or complete power failure tied to a single blown element

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only with a fuse of the same amperage and voltage rating to maintain safety and proper protection
• Use insulated tools and avoid touching live terminals; internal access may require disassembly, follow OEM service instructions
• If fuses blow repeatedly, stop using the appliance.
